8010 CTS JCB excavator specs & dimensions (2021 - 2026)

JCB 8010 CTS is a mini excavator manufactured since 2021, with a weight of 1.03 t and a track width of 180 mm. It has a transport …

JCB 8010 CTS is a mini excavator manufactured since 2021, with a weight of 1.03 t and a track width of 180 mm. It has a transport length of 2.96 m, a transport width of 0.7 m, and a transport height of 2.29 m. The machine features a tear-out force of 8.34 kN, a dredging depth of 2 m, and a maximum horizontal reach of 3.09 m. The bucket width is 0.3 m, and it comes equipped with a blade and rubber track.

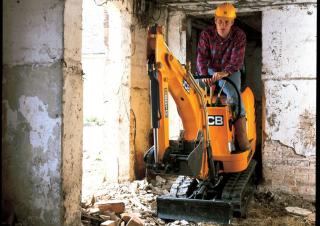

Mini Excavators JCB 8010 CTS
Mini Excavators JCB 8010 CTS
Mini Excavators JCB 8010 CTS
Mini Excavators JCB 8010 CTS
Mini Excavators JCB 8010 CTS
Mini Excavators JCB 8010 CTS
Mini Excavators JCB 8010 CTS
Mini Excavators JCB 8010 CTS

Visit JCB live at

Technical specs - 8010 CTS JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.03 t
Transport length
2.96 m
Transport width
0.7 m
Transport height
2.29 m
Bucket width
0.3 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.09 m
Dredging depth
2 m
Tear-out force
8.34 kN
Engine manuf.
Perkins
Engine type
403J-11
Engine power
13.8 kW
Displacement
1.131 l
Revolutions at max torque
1800 rpm
Max. torque
65 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 8010 CTS FAQ

When was the JCB 8010 CTS manufactured?

The JCB 8010 CTS was first produced in 2021.

How much does the JCB 8010 CTS weigh?

The JCB 8010 CTS weighs 1.03 tons.

What are the transport dimensions of the JCB 8010 CTS mini excavator?

The JCB 8010 CTS has a transport length of 2.96 meters, a transport width of 0.7 meters, and a transport height of 2.29 meters.

What is the track width of the JCB 8010 CTS mini excavator?

The JCB 8010 CTS mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the JCB 8010 CTS mini excavator?

The JCB 8010 CTS mini excavator has a dredging depth of 2 meters and a maximum horizontal reach of 3.09 meters.

What is the tear-out force of the JCB 8010 CTS mini excavator?

The JCB 8010 CTS mini excavator has a tear-out force of 8.34 kN.

What is the bucket width of the JCB 8010 CTS mini excavator?

The bucket width of the JCB 8010 CTS mini excavator is 0.3 meters.

What operator safety features does the JCB 8010 CTS have?

The JCB 8010 CTS is equipped with a roll-over bar for driver protection.

How much is a JCB 8010 CTS Mini excavator (2021u20132025) worth?

The residual value of the JCB 8010 CTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
