8010 CTS JCB excavator specs & dimensions (2006 - 2020)

Model rating: 3,00 / 10

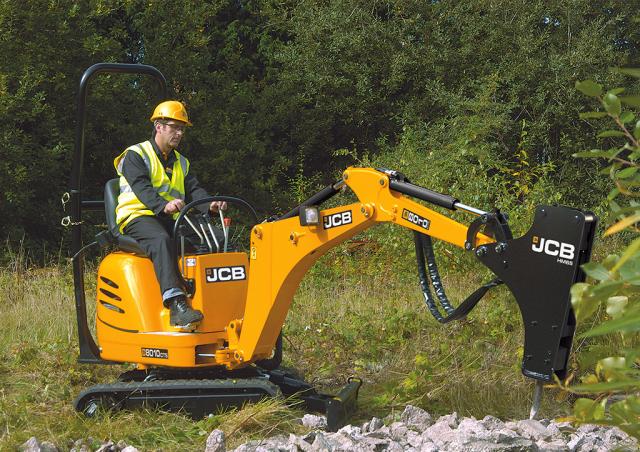

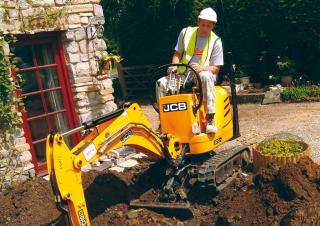

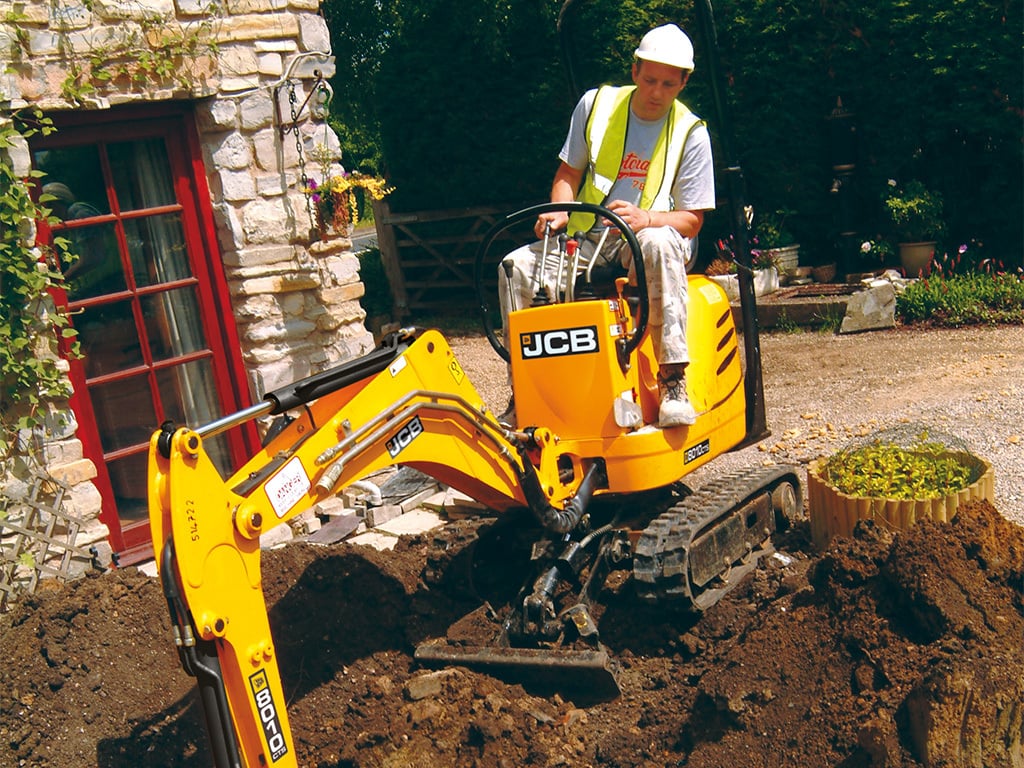

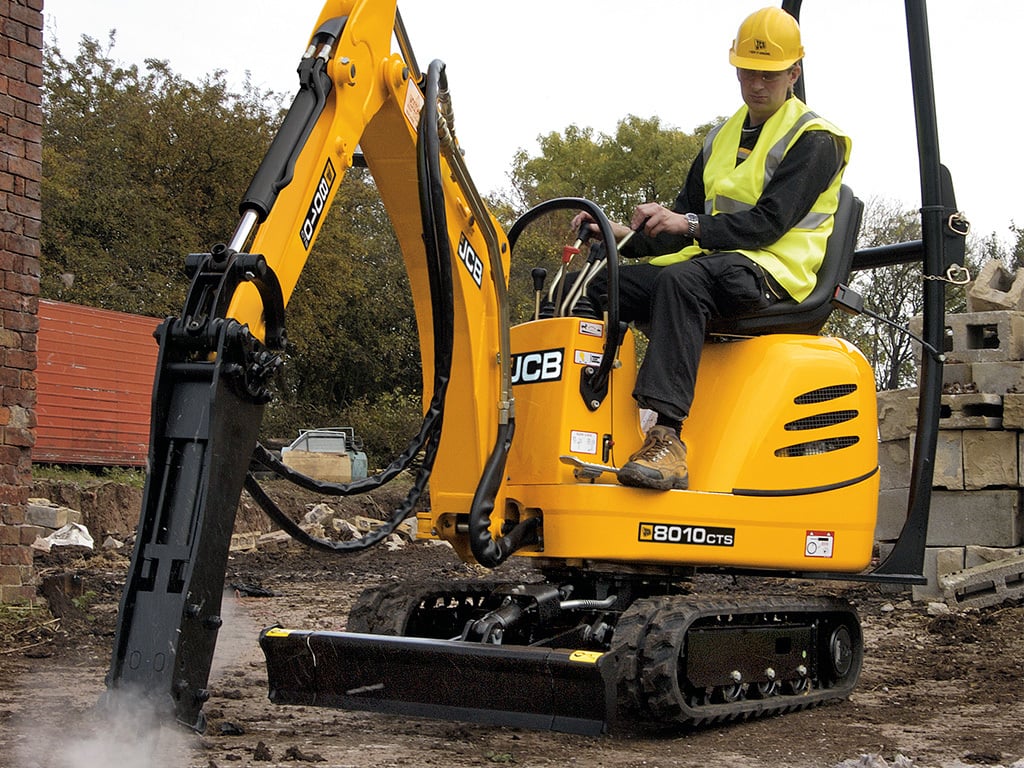

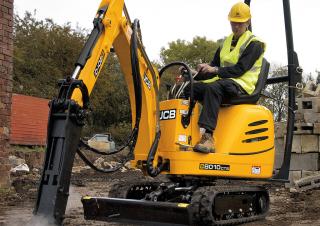

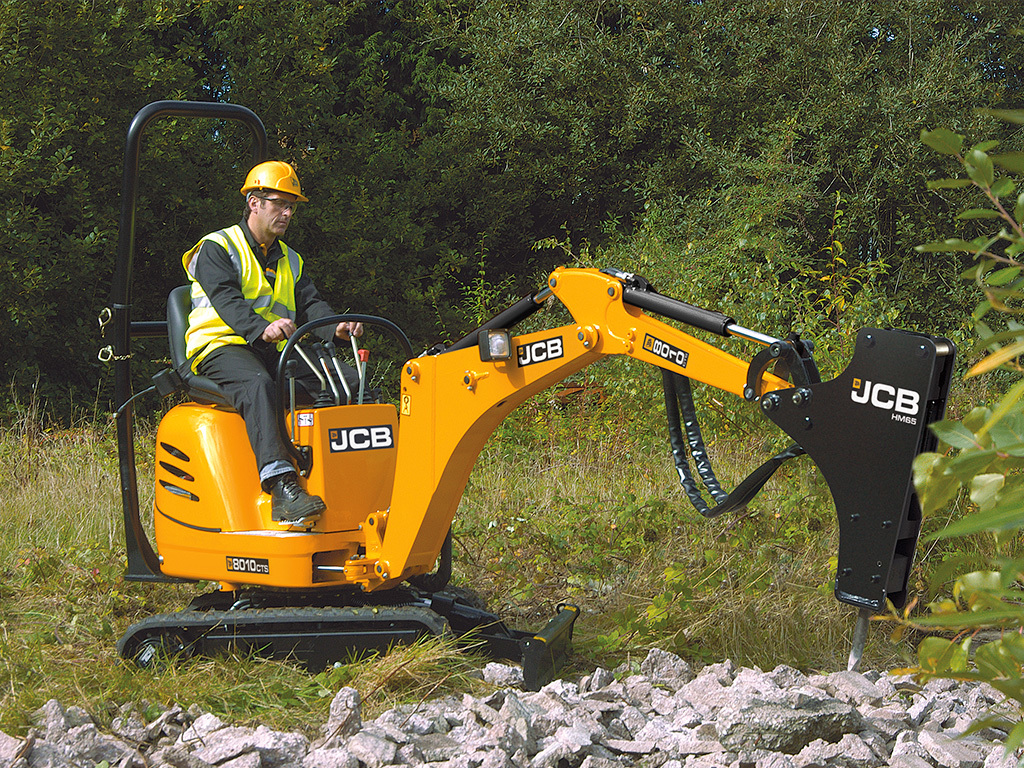

JCB 8010 CTS is a mini excavator manufactured from 2006 to 2020, with a weight of 1.03 tons. It features a track width of 180 mm, …

JCB 8010 CTS is a mini excavator manufactured from 2006 to 2020, with a weight of 1.03 tons. It features a track width of 180 mm, a transport length of 2.96 meters, a transport width of 0.7 meters, and a transport height of 2.29 meters. The machine has a tear-out force of 8.34 kN, a dredging depth of 2 meters, and a maximum horizontal reach of 3.09 meters. The bucket width is 0.3 meters, and it comes equipped with a blade and rubber tracks.

Visit JCB live at

8010 CTS

Years of manufacture: 2006—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 8010 CTS JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.03 t

Transport length: 2.96 m

Transport width: 0.7 m

Transport height: 2.29 m

Bucket width: 0.3 m

Track width: 180 mm

Driver protection: Ü

Max. Reach horizontal: 3.09 m

Dredging depth: 2 m

Tear-out force: 8.34 kN

Engine manuf.: Perkins

Engine type: 403D-11

Engine power: 13.8 kW

Displacement: 1.131 l

Revolutions at max torque: 1800 rpm

Max. torque: 65 Nm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

JCB 8010 CTS FAQ

When was the JCB 8010 CTS manufactured?

The JCB 8010 CTS was manufactured from 2006 to 2020.

How much does the JCB 8010 CTS weigh?

The JCB 8010 CTS weighs 1.03 tons.

What are the transport dimensions of the JCB 8010 CTS mini excavator?

The JCB 8010 CTS has a transport length of 2.96 meters, a transport width of 0.7 meters, and a transport height of 2.29 meters.

What is the track width of the JCB 8010 CTS mini excavator?

The JCB 8010 CTS mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the JCB 8010 CTS mini excavator?

The JCB 8010 CTS mini excavator has a dredging depth of 2 meters and a maximum horizontal reach of 3.09 meters.

What are the power ratings of the JCB 8010 CTS mini excavator?

There are no power rating specifications available for the JCB 8010 CTS mini excavator in the provided data.

What is the bucket width of the JCB 8010 CTS mini excavator?

The bucket width of the JCB 8010 CTS mini excavator is 0.3 meters.

What operator safety feature does the JCB 8010 CTS have?

The JCB 8010 CTS is equipped with a roll-over bar for driver protection.

How much is a JCB 8010 CTS Mini excavator (2006u20132020) worth?

The residual value of the JCB 8010 CTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 8010 CTS overview

Dimensions and weight

Dipper	mm (ft-in)	800 (2-6)	950 (3-1)
A Overall height (trans pos)	mm (ft-in)	2295 (7-6)	2295 (7-6)
B Overall length (trans pos)	mm (ft-in)	2957 (9-7)	3000 (9-8)
C Kingpost clearance	mm (ft-in)	345 (1.1)	345 (1-1)
D Sprocket idler centres	mm (ft-in)	930 (3-1)	930 (3-1)
E Undercarriage length	mm (ft-in)	1230 (4-0)	1230 (4-0)
F Tailswing	mm (ft-in)	900 (2-9)	900 (2-9)
G Dozer height	mm (in)	200 (7)	200 (7)
H Dozer width (retracted)	mm (ft-in)	700 (2-3)	700 (2-3)
Dozer width (extended)	mm (ft-in)	1000 (3-3)	1000 (3-3)

Operating weight*	kg (lb)	1110 (2447)
Transport weight with 2 post TOPS	kg (lb)	1028 (2266)
2 post TOPS weight	kg (lb)	66 (– 146) –

Tables

Dipper	mm (ft-in)	800 (2-6)	950 (3-1)
I	Superstructure width	mm (ft-in)	695 (2-2)	695 (2-2)
J	Width over tracks (retracted)	mm (ft-in)	700 (2-3)	700 (2-3)
	Width over tracks (extended)	mm (ft-in)	1000 (3-3)	1000 (3-3)
	Max bucket tearout	kN (lbf)	10.8 (2427)	10.8 (2427)
	Max dipper tearout	kN (lbf)	8.34 (1875)	7.02 (1578)
	Travel speeds kph 1st Gear	kph (mph)	2 (1.2)	2 (1.2)
	Drawbar pull	kN (lbf)	9 (2023)	9 (2023)
	Slew speed	rpm	8	8

TOPS certified frame	O†
Full audible systems	S
Toolkit	O
Slew travel lock	S
Rubber tracks	S
Extending undercarriage	S
ISO pattern controls	S
Vinyl static seat	S
800mm dipper	S
950mm dipper	O
1138mm dipper	–
Boom offset	S
Dozer blade	S

SERVICE CAPACITIES
Water system capacity		ltr (US gal)	5 (1.3)
Fuel tank capacity		ltr (US gal)	11.5 (3.0)
Engine oil capacity ltr (US gal)	4.4 (1.2)
Hydraulic system capacity	ltr (US gal)	21 (5.5)
Hydraulic tank capacity		ltr (US gal)	16 (4.2)

Model		403D-11
Rated power – ISO 14396 (SAE J1995 – Gross)
Gross Power	kW (hp)	13.8 (18.5)
Gross torque	Nm (lbf ft)	65 (48) @ 2000
Displacement	cc	1131
Fuel injection system		BOSCH
Gradeability	degrees	35
Starter motor	kW (hp)	1.4 (1.9)
Alternator	amp	15

Pump		2 section gear
Nominal output	lpm (gal/min)	12 x 2 (2.6)
Excavator/track main relief	bar (psi)	180 (2560)
Slew main relief	bar (psi)	95 (1378)
Auxiliary hydraulic flow	lpm (gal/min)	24 (6.3)

Hammer pipework	S
Boom mounted pipework	O
Double acting pipework	O
Boom worklight	O
General purpose buckets:
160mm (6"") to 460mm (18"")"	O
160mm (6"") to 600mm (24"")"	–
Ditching / grading buckets:
760mm (30"" )"	O
900mm (35"")"	–
JCB Breaker: HM60	O
JCB Breaker: HM100	–
Earth drills	O

Dipper	mm (ft-in)	800 (2-6)	950 (3-1)
K Boom swing right	degrees	70	70
L Boom swing left	degrees	70	70

Dipper	mm (ft-in)	800 (2-6)	950 (3-1)
M Max dig height	mm (ft-in)	2600 (8-5)	2700 (8-9)
N Max dump height	mm (ft-in)	1790 (5-9)	1895 (6-2)
O Max vertical dig depth	mm (ft-in)	1613 (5-3)	1763 (5-8)
P Max dig depth-dozer up	mm (ft-in)	1915 (6-3)	2065 (6-9)
Max dig depth-dozer down	mm (ft-in)	2000 (6-7)	2150 (7-1)
Q Max ground level reach	mm (ft-in)	3090 (10-1)	3190 (10-5)
Bucket rotation	degrees	201°	201°
R Dozer cut above ground	mm (in)	156 (6)	156 (6)
S Dozer cut below ground	mm (in)	169 (6)	169 (6)
T Min. slew radius	mm (ft-in)	1090 (3-6)	1110 (3-6)
