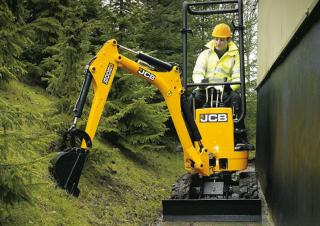

8008 CTS JCB excavator specs & dimensions (2011 - 2020)

JCB 8008 CTS is a mini excavator manufactured from 2011 to 2020, with a weight of 0.87 t and a track width of 180 mm. It has a tra…

JCB 8008 CTS is a mini excavator manufactured from 2011 to 2020, with a weight of 0.87 t and a track width of 180 mm. It has a transport length of 2.68 m, a transport width of 0.7 m, and a transport height of 2.31 m. The machine features a tear-out force of 4.6 kN, a dredging depth of 1.69 m, and a maximum horizontal reach of 3.11 m. The bucket width is 0.3 m, and it comes equipped with a blade and rubber tracks.

Visit JCB live at

8008 CTS

Years of manufacture: 2011—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 8008 CTS JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.87 t

Transport length: 2.68 m

Transport width: 0.7 m

Transport height: 2.31 m

Bucket width: 0.3 m

Track width: 180 mm

Driver protection: Ü

Max. Reach horizontal: 3.11 m

Dredging depth: 1.69 m

Tear-out force: 4.6 kN

Engine manuf.: Perkins

Engine type: 403D-07

Engine power: 9 kW

Displacement: 0.762 l

Revolutions at max torque: 1800 rpm

Max. torque: 46 Nm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

JCB 8008 CTS FAQ

When was the JCB 8008 CTS manufactured?

The JCB 8008 CTS was manufactured from 2011 to 2020.

How much does the JCB 8008 CTS weigh?

The JCB 8008 CTS weighs 0.87 tons.

What are the transport dimensions of the JCB 8008 CTS mini excavator?

The JCB 8008 CTS has a transport length of 2.68 meters, a transport width of 0.7 meters, and a transport height of 2.31 meters.

What is the track width of the JCB 8008 CTS mini excavator?

The JCB 8008 CTS mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the JCB 8008 CTS mini excavator?

The JCB 8008 CTS mini excavator has a dredging depth of 1.69 meters and a maximum horizontal reach of 3.11 meters.

What is the tear-out force of the JCB 8008 CTS mini excavator?

The JCB 8008 CTS mini excavator has a tear-out force of 4.6 kN.

What is the bucket width of the JCB 8008 CTS mini excavator?

The bucket width of the JCB 8008 CTS mini excavator is 0.3 meters.

What operator safety features does the JCB 8008 CTS have?

The JCB 8008 CTS is equipped with a roll-over bar for driver protection.

How much is a JCB 8008 CTS Mini excavator (2011u20132020) worth?

The residual value of the JCB 8008 CTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 8008 CTS overview

Tyres / Tracks

Mini but mighty.

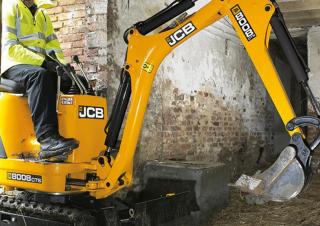

1 Both machines are compact and offer excellent performance in the tightest areas, even inside buildings and in the rear garden. However, they are also the most powerful machines of their size on the market, dramatically reducing time and personnel (only one man plus the micro) to perform labor-intensive digging work. 2 Increased digging forces and lifting capacity enable use of larger attachments. 3 An extended undercarriage on both machines gives more stability and class leading dig depth and reach. 8008/8010 CTS MICRO EXCAVATORS

Dimensions and weight

WEIGHTS
Machine model		8008	8010
Operating weight*	kg	950	1110
Transport weight with 2 post TOPS	kg	875	1028
2 post TOPS weigh	kg	35	66

Machine model		8008	8010
	Dipper	mm	880	800	950
A	Overall height (trans pos)	mm	2310	2295	2295
B	Overall length (trans pos)	mm	2682	2957	3000
C	Kingpost clearance	mm	356	345	345
D	Sprocket idler centres	mm	865	930	930
E	Undercarriage length	mm	1165	1230	1230
F	Tailswing	mm	800	900	900
G	Dozer height	mm	200	200	200
H	Dozer width (retracted)	mm	700	700	700
	Dozer width (extended)	mm	900	1000	1000
I	Superstructure width	mm	695	695	695
J	Width over tracks (retracted)	mm	700	700	700
	Width over tracks (extended)	mm	865	1000	1000
	Max bucket tearout	kN	9.3	10.8	10.8
	Max dipper tearout	kN	4.6	8.34	7.02
	Travel speed	kph	1.8	2	2
	Drawbar pull	kN	7.75	9	9
	Slew speed	rpm	7	8	8

Tables

SERVICE CAPACITIES
Machine model		8008	8010
Water system capacity	ltr	2.6		5
Fuel tank capacity	ltr		11.5
Engine oil capacity	ltr	3.0		4.4
Hydraulic system capacity	ltr		21
Hydraulic tank capacity	ltr		16

ENGINE
Machine model		8008	8010
Model		403D-07	403D-11
Rated power		ISO 14396 (SAE J1995 – Gross)
Gross power	kW @ 1800 rpm	9.0	13.8
Gross torque	Nm @ 1800 rpm	46	65
Displacement	cc	762	1131
Gradeability	degrees	35	35
Starter motor	kW	1.2	1.4
Alternator	amp	15	15

UNDERCARRIAGE
Machine model		8008		8010
No of bottom rollers		2		3
Track width	mm		180
Ground bearing pressure	Kg/ cm2		0.23
Ground clearance	mm	130		150
Track tensioning		Grease		Grease

HYDRAULIC SYSTEM
Machine model		8008	8010
Pump		2 section gear	3 section gear
Nominal output	lpm	11.2 x 2	12 x 2
Excavator/track main relief	bar	170	180
Slew main relief	bar	90	95
Auxiliary hydraulic flow	ltr	22.4	24

STANDARD EQUIPMENT	Full audible systems	Slew travel lock	Rubber tracks. Extending undercarriage	ISO Pattern Controls	Vinyl static seat	800mm dipper (8010)	880mm dipper (8008)	Boom offset	Dozer blade."
OPTIONAL EQUIPMENT	TOPS* certified frame	Front handrail	Toolkit	Double acting pipework	Boom worklight	950mm Dipper (8010 only)	Boom worklight. General purpose buckets 160mm to 410mm (8008)	160mm to 600mm (8010)	Ditching/Grading buckets 700mm (8008) 760mm and 900mm (8010)	JCB Breaker HM60	Earthdrills. *Please note TOPS frame maybe a legal requirement in your territory."

Machine model		8008		8010
	Dipper	mm	880	800	950
K	Boom swing right	degrees	70	70	70
L	Boom swing left	degrees	70	70	70
M Max dig height	mm	2840	2600	2700
N	Max dump height	mm	1980	1790	1895
O	Max vertical dig depth	mm	1480	1613	1763
P	Max dig depth-dozer up	mm	1690	1915	2065
	Max dig depth-dozer down	mm	-	2000	2150
Q	Max ground level reach	mm	3110	3090	3190
	Bucket rotation	degrees	191°	201°	201°
R	Dozer cut above ground	mm	200	156	156
S	Dozer cut below ground	mm	110	169	169
T	Min. slew radius	mm	1240	1090	1110
