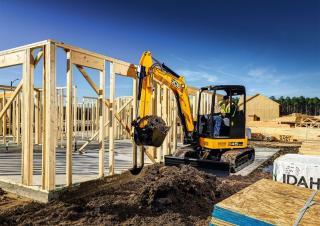

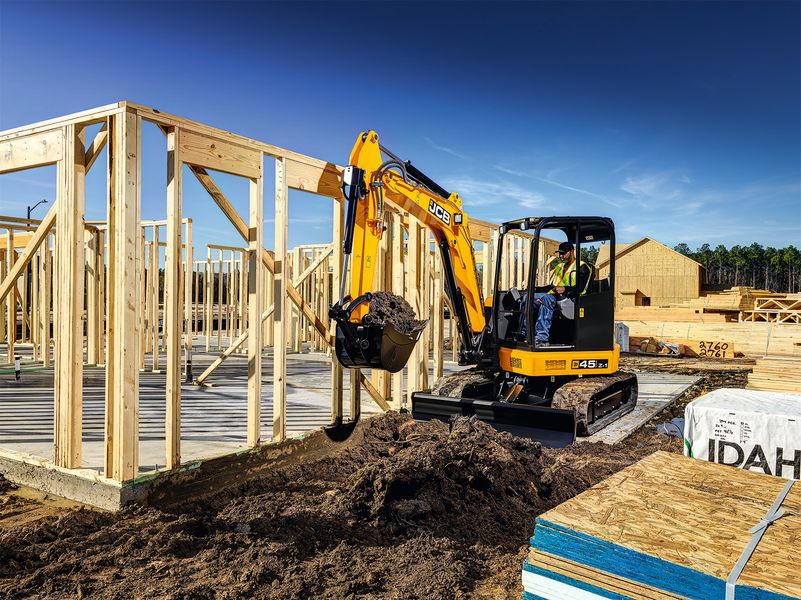

45Z-I JCB excavator specs & dimensions (2019 - 2022)

NEW GENERATION CONTROL, EFFICIENCY, PERFORMANCE, STRENGTH.
Control: Industry leading digital screen technology to adapt and store machine settings. Efficiency: Designed to minimize operating costs. Performance: Larger bucket and dipper tearout, greater dump height and higher lifting capacity. Strength: The strongest 4-6 tonne excavators on the market. Excellent breakout and lift capacity.
Quality componentry.
6 The cab door folds back to fit within the counterweight length and keeps them out of the way when opening. 7 The hydraulic system features hydraulic fittings O-Ring Face Seal (ORFS) for optimum sealing effectiveness. 8 High quality 15.7" (400 mm) rubber tracks with locking links perform even in the most difficult conditions. Optional 15.7" (400 mm) or 21.7' (550 mm) steel rails are pre-drilled to accept rubber pads. Optional Bridgestone geogrip
ZTS or CTS?
1 The new generation of 4-6 tonnes JCB compact excavators features a JCB Diesel by Kohler Tier 4 Final engine, with diesel oxidation catalyst (DOC), turbocharger and intercooler. It delivers 48 hp and 221 lb-ft torque at just 2,000 rpm. 4 The JCB 4-XTonnen excavator range includes Zero Tail Swing (ZTS) and conventional rear swing machines (CTS) for any application. ZTS offers greater maneuverability within confined jobsites, while CTS machines offer more stability, lifting capacity and a larger digging end. 2 Tracking performance is smooth and precise; this allows exceptional dozer capabilities and fast travel times to be made possible.
Digging down.
3 By perfectly matching to excavator boom and arm, JCB offers optimal digging end geometry. This allows fast cycle times and dipper tear forces of up to 6,519 lbf, for unmatched productivity. 45Z-1/48Z-1/55/57Z-1/57C-1 COMPACT EXCAVATOR

Dynamic engine design.
1 A lower idle function reduces engine speed when the operator's armrest is raised for better fuel consumption and lower noise levels. 2 Activate One-Touch Idle by pressing the new slew control selector to quickly reduce revs and save fuel. Programmable auto idling can also be activated after the controls have been inactive for a while. 3 The engine rpm can be controlled with four different power bands - light, eco, heavy and heavy plus – easily set to optimal hydraulic flow for the selected attachment. 4 The patented low pressure recirculation circuit improves fuel efficiency once again by reducing demand on the hydraulic pump.

Comfort and control.
1 The spacious new generation of JCB compact excavators are easily accessed via a wide-opening door. Inside, the cabs feature ample storage space, a telephone storage compartment, stowage net and cup holder within easy reach. 2 cabin features a radio, 12-v phone charger, powerful heater with window decorator as well as high performance air conditioning with eight vents. 3 An innovative rotary controller and easy-touch switch are designed for simple, intuitive use. 4 Standard, ergonomic, electrohydraulic dozer control allows smooth and precise grading. 5 Change quickly between single and double acting auxiliary flow with a convenient switch inside the cab.
Hydraulic innovation.
4 A premium, closed center hydraulic system enables improved flow division for smooth, precise and balanced multi-functioning. 5 Programmable twin auxiliary lines provide high and optional low hydraulic flow to operate a range of attachments. Both auxiliary lines are electronically proportionally controlled and fully adjustable for optimal attachment control. 6 The optional 4-way dozer planer can be angled right and left. Combined with the dozer float function, levelling and backfilling makes easy even on inclines or uneven terrain.

All daily checks and fuel fills at ground level 100% steel body work and simplified H-frame undercarriage. Best-in-class 500 hour greasing intervals.
At your service.
1 Graphite impregnated bronze bushes allow world class, 500-hour greasing intervals. 2 An open undercarriage and slanted track legs facilitate easy cleaning. 3 dozer hoses end on the bulkhead, for easy replacement when needed. 4 The wide opening, fullsteel hood and external fuel gauge make it easy to fill the tank from ground level. An optional refuelling pump with auto stop reduces spillages and increases safety. 5 Removing the cab floor is simple providing access to key components such as main control valve consoles. 6 anti-slip casting profile plates provide safe access and bodywork protection. Removable floor mat allows light cleaning. On the joystick are swing and auxiliary controls mounted plus tracks pedals fold together if necessary to release space. 7 hydraulic hoses are colour coded for easy identification. 45Z-1/48Z-155Z-1/57/57C-1 COMPACT EXCAVATOR

Versatility attached.
7 Choose from a range of JCB Eco buckets designed to save fuel. JCB attachments offer exceptional performance, full warranty compliance and optimal fit and operation. 8 An optional factory-fitted hydraulic quick coupler key allows faster attachment changes. An optional tilt/rotate installation enhances productivity and versatility. The JCB Hydraulic Quick Coupler works with various bucket pin centres and is compatible with attachments by many excavator manufacturers in this weight class. 45Z-1/48Z-1-55Z1/57C-1 COMPACT EXCAVATOR
E X T E N D E D W A R R A N T Y
1 JCB Technical Support Service provides instant access to factory expertise, day or night the JCB Finance team is always ready to provide fast, flexible and competitive quotes. 2 The global network of JCB Parts Centers represents a model for efficiency. With 16 regional bases we can deliver around 95 percent of all parts anywhere in the world within 24 hours. Our genuine JCB parts are designed to work in perfect harmony with your machine for optimum performance and productivity. 3 JCB Yellow Shield offers comprehensive extended warranties and service agreements as well as maintenance or repair contracts.

Dig-end durability.
1 A simplified, heavy duty H-frame design is enhanced by finite element analysis to form a highly durable undercarriage. 4 The optional, hard-duty swing bracket provides safe routing of excavator hoses and features reusable pivot points for extended service life. 2 A sturdy four plate arm design ensures strength and durability. 3 The new generation of JCB-4-6 tonne excavators feature 100 percent steel body. 5 A heavy boom cylinder guard plus optional arm and crowdram guards offer exceptional protection for critical components. 45Z-1/48Z-1-55/57C-1 COMPACT EXCAVATOR
Maximum protection.
1 The new generation of JCB excavators are fully ROPS and TOPS compliant. For increased protection, impact guard glass is an available option. 2 The unique JCB 2GO system requires two separate inputs so the hydraulic system can only be operated when in a safe lockable position. 3 Our unique 2GO system ensures that your compact excavator hydraulics can safely be operated via just two separate entrances. As an optional safety feature, hydraulics can only be activated if the operator sits and the seat belt is latched. 4 hose breakout test valves (HBCV) are available for the boom, dozer and arm with one overload screen. 5 The monitor includes a load monitor with indicator lights from green to red area. If the overload point is exceeded, buzzer noise and red indicators alert around the operator. 45Z-1/48Z1/55Z-1-57C-1 COMPACT EXCAVATOR
Safely does it.
6 A wide frame and a low centre of gravity enhance stability. 7 Optional work lights protect vulnerable components in hazardous applications. 8 Optional LED lights accommodate the function of follow me home. When selected, Lights stay on three minutes after turning off the machine, allowing the operator to safely leave. 9 The new generation JCB 4-6 tonne compact excavators offer with a 70/30 front screen split - for light, safe trench digging and maneuvering a new level of visibility – is available. 45Z-1-48Z-1/5Z1-1/57C-1 COMPACT EXCAVATOR
