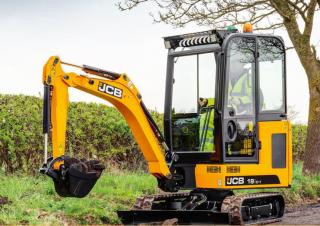

19C-I EP JCB excavator specs & dimensions (2017 - 2020)

Security benefits
Livelink's real-time geofencing notifications tell you when machines move from predetermined zones and the curfew alerts in real time inform you of unauthorised usage. Other benefits are, for example, location information in real‐time, extended ECU matching (pair live link with immobiliser or control unit) as well as PIN code management (to allow remote use perfect for asset rental). 1 Our Technical Support Service provides instant access to operational expertise day or night while our Finance and Insurance teams always available to provide fast, flexible, competitive quotes. 2 The global network of JCB Part Centres is another model of efficiency; with 16 regional bases we can deliver around 95% of all parts anywhere within 24 hours. We designed genuine JCB parts to create perfect harmony with your machine – for optimum performance and productivity. 3 JCB Assetcare offers comprehensive extension warranties and service agreements plus maintenance or repair contracts. Irrespective of what you opt for, our Maintenance Teams do not offer contingency on a world wide range of emergency services including non–obligationary replacement costs such as those offered by LifeLink Real‐time Geofoensing Notifications at low cost price rates without any obligation.

Designed to last.
1 Full width rear cast counterweight provides full protection against job site damage. All hydraulic components are assembled within a hydraulic clean room and undergo multi-stage hot tests and oil detection processes to ensure reliability. Improved digging end pins with ARCO coating protects pins from corrosion, thus contributing to reduced operating costs. 2 State-of-the-art manufacturing procedures for achieving ultimate construction quality, reliability, durability, service life as well as machine availability. Our in-house paint process is one case where we guarantee quality and lasting protection. 3 The heavy duty kingpost that comes standard optimizes useful life and lowers the cost of ownership due to the durable rebusable pivot points. 4 The overhead mounted boom reduces risk of damage on site, for example when loading dumpers. 5 hoses are routed through the boom, dipper and kingpost for maximum longevity. All three models use O-ring opposite seal hydraulics which offer excellent sealing capability.

Strong and durable.
6 The 18Z is the first zero tail model of JCB within its class, it protects the machine and environment from accidental damage. 7 Solid cast rear door for maximum impact resistance compared to glass reinforced plastic. 8 Three single-flange underrollers with short pitch tracks ensure smooth travel. Long pitch rubber or steel tracks are optional for more difficult applications. 9 The strong, durable H frame undercarriage provides a rigid hold in open design so that the spoiler can easily fall off preventing excessive component wear. For ultimate rigidity, the driving beams extending out of 25mm solid steel sheet metal are designed. 18Z-1/19C-1/19C-1 EP MINI EXCAVATOR 18Z-1/19C-1/19C-1 EP MINI EXCAVATOR 18Z-1/19C-1/19C-1 EP MINI EXCAVATOR

Supporting productivity.
4 180 opening two-way service door for access to all cleaning and maintenance points with a separate, daily check door. 5 Our hydraulic system allows you to travel in straight line simultaneously with the selection of excavator functions increasing productivity. 6 Spacious cabin with large door entry, excellent visibility and intuitive controls. 24% larger than the previous model. Easily accessible external lockable fuel tank provides added safety. 18Z-1-19C-1/19C-1 EP MINI EXCAVATOR 18Z/1/19C-1/19C-1 EP MINI EXCAVATOR
User-friendly environment.
1 Large glass area ensures increased visibility. 70/30 split line and clear connecting split provides perfect visibility down to the dozer blade. 2 Flat glass, which is easier to replace and more cost effective than curved options, with the added benefit of sun-reflecting tinted glass for operator comfort. 3 The 19C-1 EP features new instrumentation with an integrated membrane switch immobiliser pad. 4 Improved 2-speed heating with three multi-positioned vents for ultimate ease of operation. 18Z-1-19C1/19C-1 EP MINI EXCAVATOR 18Z/1/19C-1/19C-1 EP MINI EXCAVATOR
Ultimate versatility.
1 Industry standard bucket centers and pin sizes (30mm) for maximum attachments Versatility. 2 With the factory ready hydraulic quick coupler circuit on the 19C-1 EP, the operator can switch quickly and safely between attachments. 3 Choose from JCB's selection of specially designed attachments. They offer ultimate performance, full JCB warranty compliance as well as optimal fit and operation. Double hydraulic flow is available as an option. 18Z-1-19C1/19C-1 EP MINI EXCAVATOR 18Z/1/19C1-19C-1 EP MINI EXCAVATOR

Work smart.
1 The new cabs are fully ROPS and FOPS compliant, for increased protection laminated glass is available as option. 2 All services including tracking and dozer are isolated when the control pod is raised as an additional safety precaution. 3 Raise overloaded the 19C-1 EP's acoustic warning system ensures maximum stability and safety during efficient work. 4 A lockable internal toolbox provides safe tool stowage on all models. Optional operator presence and seat belt isolator switches provide increased security on site.
Safely does it.
4 Optimum seat position with large glass area and body design combine to provide excellent all-round visibility for increased safety on site. As a result, the EP 18Z-1, 19C-1 and 19C-1 need no mirrors to meet EU regulations. 5 The unique JCB 2GO system gives an extra layer of security which means that all controls are fully isolated unless the 2GO button is activated. To enhance safety there is one Thatcham approved immobiliser eliminating the possibility of unauthorized starting. With the Livelink and Datatag software system on the minis you can set up a geofence as well as working restrictions on machines. A key advantage of the combination of Livelink and immobilizer is the Remote Pin Code Management System through which you can authorise or deny use of the machine by remote access. Up to 14 individual pin codes can be programmed into the system, thus providing the ability to adjust operator settings by embedding in each separate auxiliary mode (19C-1 EP only).
