16C-I JCB excavator specs & dimensions (2021 - 2026)

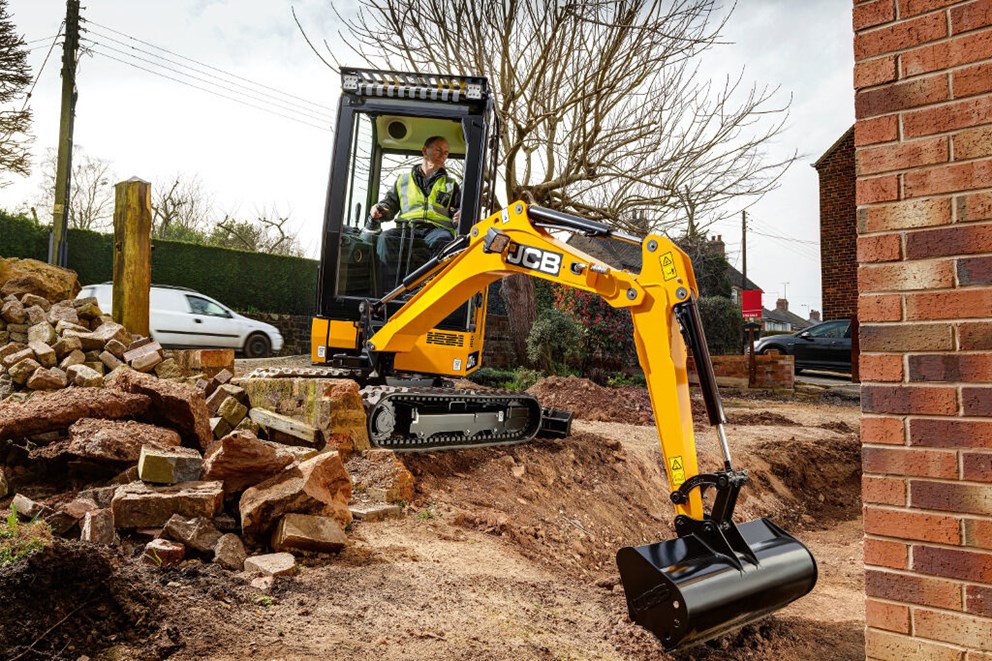

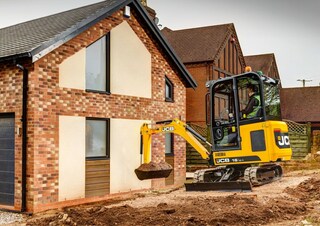

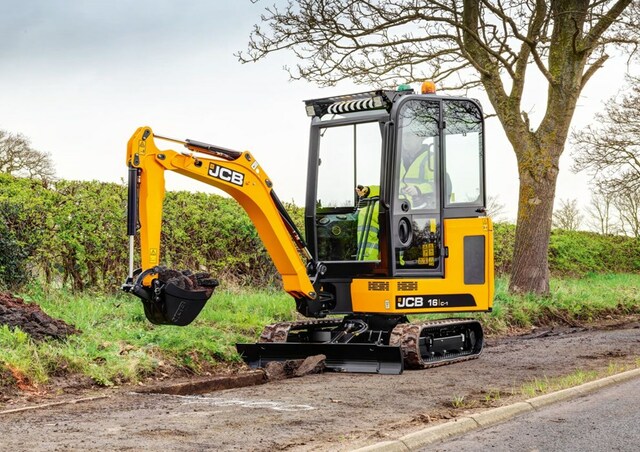

JCB 16C-I is a mini excavator manufactured since 2021, with a weight of 1.74 tons. It features a track width of 230 mm and has tra…

JCB 16C-I is a mini excavator manufactured since 2021, with a weight of 1.74 tons. It features a track width of 230 mm and has transport dimensions of 3.86 meters in length, 0.99 meters in width, and 2.32 meters in height. The machine offers a dredging depth of 2.57 meters and a maximum horizontal reach of 4 meters. It is equipped with a blade as special equipment.

Mini Excavators JCB 16C-I
Mini Excavators JCB 16C-I
Mini Excavators JCB 16C-I
Mini Excavators JCB 16C-I
Mini Excavators JCB 16C-I
Mini Excavators JCB 16C-I
Mini Excavators JCB 16C-I
Mini Excavators JCB 16C-I

Visit JCB live at

Technical specs - 16C-I JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.74 t
Transport length
3.86 m
Transport width
0.99 m
Transport height
2.32 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
4 m
Dredging depth
2.57 m
Engine manuf.
Perkins
Engine type
403J-07
Engine power
11.7 kW
Displacement
0.762 l
Revolutions at max torque
2000 rpm
Max. torque
45.6 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 16C-I FAQ

When was the JCB 16C-I manufactured?

The JCB 16C-I was first produced in 2021.

How much does the JCB 16C-I weigh?

The JCB 16C-I weighs 1.74 tons.

What are the transport dimensions of the JCB 16C-I mini excavator?

The JCB 16C-I has a transport length of 3.86 meters, a transport width of 0.99 meters, and a transport height of 2.32 meters.

What is the track width of the JCB 16C-I mini excavator?

The JCB 16C-I mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the JCB 16C-I mini excavator?

The JCB 16C-I mini excavator has a dredging depth of 2.57 meters and a maximum horizontal reach of 4 meters.

What operator safety features does the JCB 16C-I have?

The JCB 16C-I has a cabin for driver protection.

How much is a JCB 16C-I Mini excavator (2021u20132025) worth?

The residual value of the JCB 16C-I depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
