15C-I JCB excavator specs & dimensions (2019 - 2021)

THE NEW GENERATION 1-2 TONNE COMPACT EXCAVATOR RANGE FROM JCB ENCOMPASSES FIVE MODELS INCLUDING FOUR CONVENTIONAL TAILSWING AND ONE ZERO TAILSWING MODEL.
There are two light conventional Tailswing models, the 15C and 16C. These are ideal to be hauled behind a van or pickup. The 15C is a standard specification, the single speed tracking fixed chassis model driven by a gear pump. The carry weight of the 16C at 1674kg with a cab is expanded through a retractable undercarriage, two speed tracking and a variable displacement pump. The 19C shares the same compact footprint as the rest of the range but has greater tear-out and lifting capacity for customers in larger requirements. In addition, there's the option of a 1344mm dipper with wider reach and digging depth. Additionally, the 19C PC offers additional operating functions that offer improved operation experience to customer. Features such as Electro Proportional Control, Auto Kickdown, Travel Motors plus the ability to hydraulic quick coupler, additional auxiliary lines and adjustable auxiliary flows are available. The 18Z is a zero tail model which provides the same performance features as the 16C, but makes work easier in a zero tail construction package like tight environments: e.g.
Making life easy.
1 Easy pre-start checks allow you to check fluid oil level, while an analog hour meter gives you quick and easy visibility without the machine having to be engaged. Standard two speed tracking is operated by a button on the dozer unit. Auto kick down is standard on the 19C-1 PC and optional on the 16C-1, 18Z-1 and 19C-1. 2 New right side positioned panel with simple key functions, easily readable indicators and warnings always allows the operator to know about machine status as well as possible risks. 3 Standard electro proportional control on the 19C-1 PC enables new finer control using an additional thumb switch for precise control of attachments.
WHEN TIME IS MONEY AND GETTING FROM THE LAST JOB TO THE NEXT JOB QUICKER IS A HUGE ADVANTAGE, THE NEW GENERATION MINIS DON'T HANG ABOUT. QUICK CLEANING, TRANSPORTING AND ATTACHMENT CHANGES ALL ADD UP TO BIGGER PROFITS FOR YOU.
8 With low operating weights, each machine can be easily towed to the desired location. 9 10 connectors and lifting points ensure compliant, fast machine transport.
Low cost of ownership.
4 With the new digging end geometry, the machines can load dumpers without requiring laborious work to be speeded up on the jobsites. 5 Waste-out undercarriage legs give minimal ground retention capabilities and allow quick cleaning. 6 The new dozer geometry allows the blade free material build-up capability. In case of easy swing out dozer fender extensions there is no need for tools that are suitable for
Security benefits
Livelink's real-time geofencing notifications tell you when machines move from predetermined zones and the curfew alerts in real time inform you of unauthorised usage. Other benefits are, for example, location information in real‐time, extended ECU matching (pair live link with immobiliser or control unit) as well as PIN code management (to allow remote use perfect for asset rental). 1 Our Technical Support Service provides instant access to operational expertise day or night while our Finance and Insurance teams always available to provide fast, flexible, competitive quotes. 2 The global network of JCB Part Centres is another model of efficiency; with 16 regional bases we can deliver around 95% of all parts anywhere within 24 hours. We designed genuine JCB parts to create perfect harmony with your machine – for optimum performance and productivity. 3 JCB Assetcare offers comprehensive extension warranties and service agreements plus maintenance or repair contracts. Irrespective of what you opt for, our Maintenance Teams do not offer contingency on a world wide range of emergency services including non–obligationary replacement costs such as those offered by LifeLink Real‐time Geofoensing Notifications at low cost price rates without any obligation.

Designed to last.
1 Full width rear cast counterweight provides full protection against job site damage. All hydraulic components are assembled within a hydraulic clean room and undergo multi-stage hot tests and oil detection processes to ensure reliability. Improved digging end pins with ARCO coating protects pins from corrosion, thus contributing to reduced operating costs. 2 State-of-the-art manufacturing procedures for achieving ultimate construction quality, reliability, durability, service life as well as machine availability. Our in-house paint process is one case where we guarantee quality and lasting protection. 3 The heavy duty kingpost that comes standard optimizes usage time and lowers ownership costs due to the durable reusable turns. Without the 15C-1. 4 mounted overhead boom ram reduces risk of damage on site, for example when loading dumpers. 5 hoses are routed through the boom, dipper and kingpost for maximum longevity. All five models use o-ring opposite seal hydraulics, which offers excellent sealing possibilities.

User-friendly environment.
1 Large glass area ensures increased visibility. 70/30 split line and clear connecting split provides perfect visibility down to the dozer blade. 2 Flat glass, which is easier to replace and more cost effective than curved options, with the added benefit of sun-reflecting tinted glass for operator comfort. 3 The new range features a new instrumentation, the 19C-1 PC has the added value of an integrated membrane switch immobiliser pad. 4 Improved 2-speed heater with three multi-positioned vents for ultimate ease of operation. 15C-1-16C-1/18Z-1/19C-1 PC MINI EXCAVATOR 15C/1/16C-1/18Z-1/19C1/19C-1 PC MINI EXCAVATOR

Strong and durable.

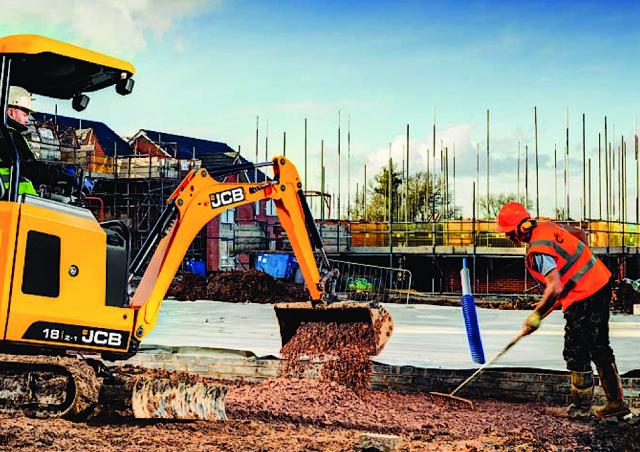

6 The 18Z is the first zero tail model of JCB within its class, it protects the machine and environment from accidental damage. 7 Solid cast rear door for maximum impact resistance compared to glass reinforced plastic. 8 Three single-flange floor rollers with short pitch tracks ensure smooth travel. Long pitch rubber or steel tracks are optional for more arduous applications. 9 The strong, durable H frame undercarriage provides rigid support in open design so that the spoiler can easily fall off against excessive component wear. For ultimate rigidity, the undercarriages consisting of 25mm solid steel plate are designed.

Supporting productivity.
4 180 opening service door for access to all cleaning and maintenance points with a separate, daily check door. 5 Our hydraulic system allows you to travel in straight line simultaneously with the selection of excavator functions increasing productivity. 6 Spacious cabin with large door input, excellent visibility and intuitive controls. 24% larger than the previous model. Easily accessible external lockable fuel tank provides added safety. 15C-1/16C-1/18Z-1/19C-1 PC MINI EXCAVATOR 15C-1/16C-1/18C-1/19C-1 PIC MINI EXCAVATOR
Not applicable for the 15c-1
7 No daily greasing with easy-to-reach maintenance and cleaning means faster turnaround.
Ultimate versatility.
1 Industry standard bucket centers and pin sizes (30mm) for maximum attachment versatility. 2 factory ready manual or hydraulic quick coupler (model specific) allows the operator to quickly and safely switch between attachments. 3 Choose from JCB's selection of specially designed attachments. They provide ultimate performance, full JCB warranty compliance as well as optimal fit and operation. A double hydraulic flow is available as an option. 15C-1/16C-1/18Z-1/19C-1 PC MINI EXCAVATOR 15C-1/16C-1/18C-1/19C-1/19C-1 PC MINI EXCAVATOR

Work smart.
1 The new cabs are fully ROPS and FOPS compliant, for increased protection laminated glass is available as option. 2 All services including tracking and dozer are isolated when the control pod is raised as an additional safety precaution. 3 Raise the acoustic warning system overload on the 19c-1 PC ensures maximum stability and safety during efficient work. 4 A lockable internal toolbox provides safe tool stowage on all models. Optional operator presence and seat belt isolator switches provide increased security on site.
Safely does it.
4 Optimum seat position with large glass area and body design combine to provide excellent all-round visibility for increased safety on site. As a result, all models do not require mirrors to meet EU regulations. 5 The unique JCB 2GO system gives an additional layer of safety, which means that all controls are fully isolated unless the 2GO button is activated. To enhance safety there is one Thatcham approved immobiliser eliminating the possibility of unauthorized starting. With the Livelink software system and Datatag on the minis you can set up a geofence and working restrictions on machines. A key advantage of the combination of Livelink and Displacement Lock is the remote Pincode Management System allowing you to approve or deny usage of the machine by remote access. Up to 14 individual pin codes can be programmed into the system providing the ability to adjust operating settings by inserting a separate auxiliary mode in each code.
