55N-2 IHI excavator specs & dimensions (2007 - 2016)

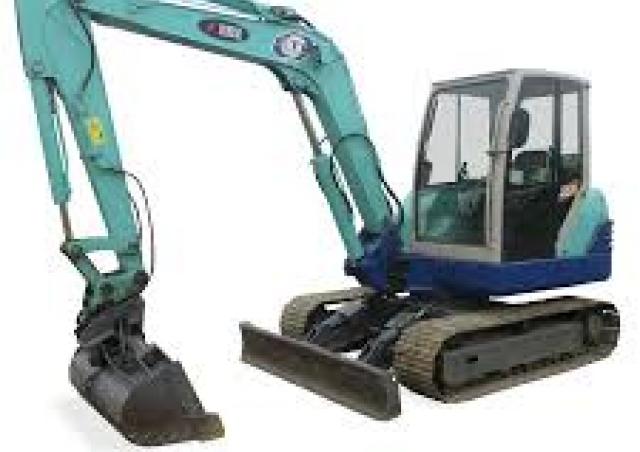

IHI 55N-2 is a Mini Excavator manufactured from 2007 to 2016, with a weight of 5.776 tons. It features a track width of 406 mm, a …

IHI 55N-2 is a Mini Excavator manufactured from 2007 to 2016, with a weight of 5.776 tons. It features a track width of 406 mm, a transport length of 5 meters, a transport width of 2 meters, and a transport height of 2 meters. The bucket width is 0.686 meters, and it comes equipped with a blade and rubber tracks.

55N-2

Years of manufacture: 2007—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 55N-2 IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.78 t

Transport length: 5 m

Transport width: 2 m

Transport height: 2 m

Bucket capacity: 0.18 m³

Bucket width: 0.686 m

Track width: 406 mm

Max. Reach horizontal: 6.12 m

Dredging depth: 3.86 m

Engine manuf.: Yanmar

Engine type: 4TNV94L

Engine power: 41.4 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, tear-out force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

55N-2 IHI Specification for North America (EN)

IHI 55N-2 FAQ

When was the IHI 55N-2 manufactured?

The IHI 55N-2 was manufactured from 2007 to 2016.

How much does the IHI 55N-2 mini excavator weigh?

The IHI 55N-2 mini excavator weighs 5.78 tons.

What are the transport dimensions of the IHI 55N-2 mini excavator?

The IHI 55N-2 has transport dimensions of 5 meters in length, 2 meters in width, and 2 meters in height.

What is the track width of the undercarriage on the IHI 55N-2 mini excavator?

The IHI 55N-2 mini excavator has a track width of 406 mm.

What are the excavation performance specifications of the IHI 55N-2 mini excavator?

The IHI 55N-2 mini excavator has a dredging depth of 3.86 meters and a maximum horizontal reach of 6.12 meters.

What are the bucket specifications of the IHI 55N-2 mini excavator?

The IHI 55N-2 mini excavator has a bucket capacity of 0.18 cubic meters and a bucket width of 0.686 meters.

How much is a IHI 55N-2 Mini excavator (2007u20132016) worth?

The residual value of the IHI 55N-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

IHI 55N-2 overview

IHI 55N-2 features overview

10 h.p. water cooled diesel engine, two speed travel, auxiliary hydraulics forward of the implement Standard, standard backfill blade, Expandable undercarriage from 27.5 to 37.5 inch, 5'2 digging depth
15NX-2
14 hp. water cooled diesel engine, variable displacement piston pumps, two speed travel, auxiliary hydraulics standard, hydraulic pilot controls, A-F pattern change valve standard, standard refill blade, Expandable undercarriage from 37.5 to 50 inch, digging depth 7'0
25NX-2
21.1 h.p. water cooled diesel engine, variable displacement piston pumps, two speed travel, auxiliary hydraulics standard, hydraulic pilot controls, A-F pattern change valve norm, rubber or steel tracks, standard refill blade, digging depth 8'3
30NX-2
23.9 h.p. water cooled diesel engine, variable displacement piston pumps, two speed travel, auxiliary hydraulics as standard, hydraulic pilot controls, A-F pattern change valve norm, rubber or steel tracks, standard refill blade, digging depth 10'6, travel pressure amplifier system
35NX-2
26,5 h.p. water cooled diesel engine, variable displacement piston pumps, two speed travel, auxiliary hydraulic standard, hydraulic pilot controls, A-F pattern change valve norm, rubber or steel tracks, Expandable undercarriage from 5 to 6 ft. Extendible dipper stick (optional), standard backfill blade, 11'4 digging depth, travel pressure improvement system, 37.1 h.p. water cooled diesel engine, variable displacement piston pumps, two speed travel, auxiliary hydraulics standards, hydraulicPilot checks, standard with A-F quick change valve, rubber or steel tracks, standard back fill sheet, 12'6 digging depth, travel pressure strength system, 55 h.p. water cooled diesel engine, variable displacement piston pump, dual travel, axial hydraulicsStandard, Hydraulic control elements, A-F pattern change valve standard, rubber or steel tracks, standard rear fl owing blade, 12'10 digging depth, transport pressure slipping
80NX-3
56.3 h.p. water cooled diesel engine, variable displacement piston pumps, two speed travel, auxiliary hydraulic standard, hydraulic pilot controls, A-F pattern change valve standard, rubber or steel tracks, standard refill blade, standard with fully enclosed heated/climateized cab, 151 digging depth, Travel pressure boost system
Power and Stability
The side lifting capacity for the 9NX-2, 15NX-2 and 35NX-2 is increased by a standard expandable undercarriage.

21.1 h.p. water cooled diesel engine, variable displacement piston pumps, two speed travel, auxiliary hydraulics standard, hydraulic pilot controls, A-F pattern change valve standard, rubber or steel tracks, standard refill blade, 8'3 digging depth, Travel pressure boost system, 26,5 h.p. water cooled diesel engine, variable displacement piston pumps, dual speed travel gear, auxiliary hydraulics standard, hydraulic pilot controller, A-F pattern change valve standard, rubber or steel tracks, standard backfill sheet, 10'4 digging depth, travel pressure amplifier system, 55,5 h.p. water cooled diesel engine, variable displacement piston pumps, two speed travel, auxiliary hydraulics standard, hydraulic pilot control unit, A-f pattern change valve standard, rubber or steel tracks, standard rear clearance blade, 12'8 digging depth, travel pressure increase system
9NX-E Electric
5 h.p. Electric motor, produces no fumes and very little noise, two speed travel, auxiliary hydraulics forward of unit Standard, standard backfill blade, Expandable undercarriage from 27.5 to 37.5 inches, 5'2 digging depth, standard with 100 ft. power cable

Hydraulics

Smoother Operation Exceeding World Standard
Hydraulic Pilot Joystick Controls are equipped to provide a high degree of operational responsiveness.
Smooth Operation
N Series excavators are equipped as standard with hydraulic pilot controls with armrest for extremely smooth operation and operator comfort.

Dimensions and weight

Model	9NX-2	15NX-2	25NX-2	30NX-2	35NX-2	55NX	65NX	80NX-3
• Basic Specifications
Canopy	4-Post	4-Post	4-Post / Cabin	4-Post / Cabin	4-Post / Cabin	4-Post / Cabin	4-Post / Cabin	4-Post / Cabin
Bucket Capacity	.8 cu. ft.	1.55 cu.ft.	2.8 cu.ft.	3.2 cu. ft.	3.90 cu. ft.	5.30 cu. ft.	7.10 cu.ft.	8.80 cu.ft.
Operating Weight,"2,060 lbs.	3,850 lbs.	6,100 lbs.	7,075 lbs.	7,440 lbs.	12,498 lbs.	14,400 lbs.	18,100 lbs."
Transport Weight,"1,885 lbs.	3,600 lbs.	5,849 lbs.	6,750 lbs.	7,275 lbs.	11,700 lbs.	13,950 lbs.	17,635 lbs."
• Engine
Model	Yanmar 2TNV70	Yanmar 3TNV70	Yanmar 3TNV76	Yanmar 3TNV84	Yanmar 3TNV84	Yanmar 4TNV88	Yanmar 4TNV94L	Isuzu AA-4JG1
Horsepower,"10.0 h.p. @ 2,400 rpm	14.0 h.p. @ 2,300 rpm	21.1 h.p. @ 2,300 rpm	23.9 h.p. @ 2,400	26.5 h.p. @ 2,300 rpm	37.1 h.p. @ 2,300	55 h.p.@ 2,400	56.3 h.p. @ 2,100"
Fuel Tank Capacity	2.2 gal.	5.3 gal.	8.7 gal.	10.6 gal.	8.7 gal.	17.2 gal.	22.5 gal.	18.5 gal.
• Dimensions
Length	8’ 10”	11’ 1”	12’ 11”	14’ 6”	15’ 0”	18’ 0”	19’ 3”	19’ 8”
Width	2’ 31 ⁄2” to 3’ 11 ⁄2”	3’ 3” to 4’ 2”	5’ 1”	5’ 1”	5’ 0” to 6’ 0”	6’ 6”	6’ 11”	7’ 3”
Height	7’5”	7’ 6”	8’1”	8’ 2”	8’ 1”	8’ 1”	8’6”	8’5”
• Hydraulic Equipment
Pumps	2	4	4	4		411		4
Type-Piston/Gear	2 Gear	2 Piston / 2 Gear	2 Piston / 2 Gear	2 Piston / 2 Gear	2 Piston / 2 Gear	1 Piston	1 Piston	2 Piston / 2 Gear
Total Flow	5.9 gpm	12.7 gpm	20.2 gpm	23.2 gpm	27.1 gpm	32.8 gpm	39.6 gpm	51.8 gpm
Operating Pressure,"2,350 psi	2,988 psi	2,988 psi	3,133 psi	2,990 psi	3,555 psi	3,553 psi	3,550 psi"
Auxiliary Flow	5.9 gpm	6.9 gpm	12.7 gpm	14.2 gpm	16.7 gpm	17.2 gpm	23.8 gpm	18.9 gpm
• Features
Travel Speed L/H	1.1 / 2.2 mph	1.3 / 2.5 mph	1.5 / 2.8 mph	1.6 / 3.1 mph	1.7 / 3.0 mph	1.9 / 3.0 mph	1.6 / 3.0 mph	1.6 / 2.7 mph
Ground Pressure	3.8 psi	3.7 psi	3.9 psi	4.6 psi	4.2 psi	4.1 psi	4.2 psi	5.2 psi
Swing Speed	8.7 rpm	9.5 rpm	10 rpm	9.2 rpm	8.8 rpm	8.5 rpm	9.0 rpm	9.2 rpm
Swing Angle	L50º / R90º	L55º / R80º	L50º / R90º	L50º / R90º	L50º / R90º	L50º / R90º	L50º / R90º	L50º / R80º

		Unit: feet/inches
	Working Range
	28N-2	35N-2	55N-2*
A Max. Digging Radius	14’2”	16’8”	20’1”
B Max. Digging Depth	8’3”	10’4”	12’8”
C Max. Digging Height	13’3”	15’7”	19’6”
D Max. Dumping Height	9’4”	10’10”	13’6”
E Max. Vert. Digging Depth	6’5”	8’0”	9’8”
F Min. Front Turning Radius	5’11”	6’4”	7’3”
At Right Boom Swing	4’2”	5’6”	5’10”
Bucket Digging Power,"5,460 lbs.	7,662 lbs.	11,070 lbs."

Canopy	4-Post / Cabin	4-Post / Cabin	4-Post / Cabin
Bucket Capacity	2.80 cu. ft.	3.90 cu. ft.	6.40 cu. ft.
Operating Weight,"6,189 lbs.	7,759 lbs.	12,733 lbs."
Transport Weight,"5,742 lbs.	7,216 lbs.	11,935 lbs."
• Engine
Model	Yanmar 3TNV76	Yanmar 3TNV84	Yanmar 4TNV94L
Horsepower,"21.1 h.p. @ 2,300 rpm	26.5 h.p. @ 2,300 rpm	55.5 h.p. @ 2,400"
Fuel Tank Capacity	9.8 gal.	10.6 gal.	19.8 gal.
• Dimensions
Length	13’8”	15’11”	18’9”
Width	5’1”	5’1”	6’7”
Height	7’7”	7’8”	8’2”
• Hydraulic Equipment
Pumps	4	4	4
Type-Piston/Gear	2 Piston / 2 Gear	2 Piston / 2 Gear	2 Piston / 2 Gear
Total Flow	20.3 gpm	27.1 gpm	47.4 gpm
Operating Pressure,"2,988 psi	2,988 psi	2,988 psi"
Auxiliary Flow	12.7 gpm	16.7 gpm	29.7 gpm
• Features
Travel Speed L/H	1.5 / 2.8 mph	1.7 / 3.0 mph	1.6 / 2.8 mph
Ground Pressure	3.8 psi	4.1 psi	4.4 psi
Swing Speed	10 rpm	8.8 rpm	9.0 rpm
Swing Angle	L50º / R90º	L50º / R90º	L50º / R90º

Other features

“World Standard” Maintenance
By using our exclusive arc frame, the engine, radiator and battery covers can be fully opened – which greatly simplifies inspection and repair.
Maintenance Made Easy
A fully opening engine cover allows easy access to replace filters as well as regular maintenance of the engine.

Safety

Excellent Digging Force
The high quality and performance of the IHI NX series has been secured in the ZERO TAIL SWING mini excavator.
Complete Protection
With rugged side protectors and hoses routed through the arm, N Series excavators are protected from even the toughest working conditions.

Tables

Unit: feet/inches

A BC

9NX-2

8’10” 2’11”3’11”

2’3.5”

1’4”

6’10”

9’5”

7”

27.5”/37.5”*

1’6”

1’7”

3”

1’3”

11”

7”

1’6”

15NX-2

11’1” 3’9” 5’2”

3’3”

1’6”

7’6”

9”

38.5”/50”*

2’9”

2”

2’2”

1’2”

2’2”

25NX-2

12’11”4’10” 6’3”

5’1”

1’10”

8’1”

1’2”

12”

5’1”

2’4”

1’10”

2”

1’8”

7”

1.4”

2’6.5”

30NX-2

14’4” 4’11”6’11”

5’1”

1’10”

8’2”

1’3”

1’0”

5’1”

3’2”

2’11”

2”

1’10”

8”

2”

2’7”

35NX-2

15’0” 5’1” 7’3”

5’0”

1’10”

8’1”

1’2”

1’0”

5’0”/6’0”*

2’1”

1’8”

2”

2’0”

7”

2”

2’9”

55NX

18’0” 5’6” 8’2”

6’5”

2’0”

8’1”

1’3”

6’5”

2’9”

2’5”

6”

2’1”

7”

3”

3’6”

65NX

19’3” 6’0” 9’2”

6’11”

2’3”

8’6”

1’5”

1’4”

6’11”

4’3”

4’2”

11”

2’3”

10”

8”

3’5”

80NX-3

19’8” 6’4” 8’11”

7’3”

2’3”

8’6”

1’8”

1’6”

7’3”

4’4”

4’1”

9”

2’6”

8”

6”

4’3”

Unit: feet/inches
Working Range
	9NX-2	15NX-2	25NX-2 30NX-2	35NX-2	35NXE-2*	55NX	65NX	80NX-3*
A Max. Digging Radius	9’9”	12’4”	14’9” 16’8”	17’9”	19’9”	19’8”	21’4”	23’4”
B Max. Digging Depth	5’2”	7’0”	8’3” 10’6”	11’4”	13’1”	12’5”	12’10”	15’1”
C Max. Digging Height	9’	11’10”	13’3”’ 14’2”	15’11”	19’9”	17’5”	19’10”	22’9”
D Max. Dumping Height	6’6”	8’5”	9’ 10’0”	11’1”	14’10”	12’2”	13’10”	16’0”
E Max. Vert. Dig. Depth	3’10”	5’10”	6’5” 8’5”	9’8”	10’3”	9’0”	9’10”	11’9”
F Min. Front Turn Rad.	4’	4’11”	6’4” 7’3”	7’2”	7’2”	7’9”	8’5”	8’5”
At Right Boom Swing	3’1”	4’2”	4’11” 5’8”	5’8”	5’10”	6’7”	7’0”	7’3”
Bucket Dig Force,"2,360 lbs.	5,447 lbs.	5,698 lbs. 7,180 lbs.	7,688 lbs.	7,688 lbs.	10,850 lbs.	12,100 lbs.	14,730 lbs."
* 35NXE-2 is equipped with extendable dipper stick	* 80NX-3	Standard	Cabin

Unit: feet/inches

LMNO

28N-2 13’8”

4’10”

6’3”

5’1”

1’10”

7’7”

1’2”

12”

5’1”

1’10”

1’6”

2”

1’8”

2”

-2”

4’2”

35N-215’11”

5’2”

6’9”

5’1”

1’11”

7’8”

1’2”

12”

5’1”

2’1”

1’8”

2”

2’0”

6”

4’7”

55N-2 18’9”

5’7”

8’2”

6’7”

2’3”

8’2”

1’3”

1’4”

6’7”

2’4”

2’0”

4”

2’3”

2”

-2”

5’1”

and NX-Electric Attachment Options"

Model

9NX-2

9NX-E

15NX-2

25NX-2

28N-2

30NX-2

35N-2

35NX-2

55NX

55N-2

65NX

80NX-3

Auger

XXX

Hammer

Thumb

Special Buckets

XXXX

Compactor

Quick Coupler

XXXX

Grapple

XXXX

Hand Held Tools

Cemetery Bucket

Concrete Crusher

Rip-N-Pin

Machine inspection

Ask for inspection of your IHI 55N-2 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we collect sales offers since 40 years and using this experience, we can support buyers with price comparison of used mini excavators, such as IHI 55N-2.

Check what new and used models of mini excavators you can get in each price range:

Data provided by

Compare IHI 55N-2 with similar Mini Excavators

IHI 55N-2

Weight:: 5.78 t

Transport length:: 5 m

Transport width:: 2 m

Transport height:: 2 m

Mecalac 6MCR

Weight:: 5.7 t

Transport length:: 2.76 m

Transport width:: 2.03 m

Transport height:: 2.59 m

Hyundai R 55-3

Weight:: 5.25 t

Transport width:: 1.87 m

Terex TC 50

Weight:: 4.82 t

Transport length:: 5.39 m

Transport width:: 1.99 m

Transport height:: 2.55 m

Zeppelin ZM 6 B

Weight:: 5.3 t

Check other popular models from Mini Excavators

Kubota U35

Weight:: 3.4 t

Kubota KX121-3 GL

Weight:: 3.9 t

Kubota KX057-4

Weight:: 5.54 t

New Holland E30C

Weight:: 3 t

New Holland E60C

Kubota KX71-3S

Weight:: 2.97 t

Kubota U17

Weight:: 1.73 t

Kubota K008-3

Weight:: 1 t

John Deere Construction 260

Weight:: 3.584 t

John Deere Construction 50

Weight:: 4.3 t

John Deere Construction 70

Yanmar SV40

Weight:: 4.32 t

Sell IHI 55N-2

Mini Excavators appraisal with LECTURA Valuation

Whether you need to get value of your IHI 55N-2 or valuation of your Mini Excavators fleet, LECTURA Valuation will help. Simply fill the form and see the values for Mini Excavators in few clicks.

Valuate right now!

Data provided by

Spare parts & Components

Get spare parts for IHI 55N-2 easily from our partners

Do your lookup for high quality parts for IHI 55N-2 online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Mini Excavators spare parts easily today - worldwide.

Get parts for IHI 55N-2 now!

Transport

Mini Excavators Transport & Shipping Services

In case you look into transport options for your machine, apply our services. Query the best fitting transport quotes for Mini Excavators built on transport dimensions and weights. Our partners provide large-scale services to satisfy your demands.

Ask for transport price

Data provided by

Technical specs - 55N-2 IHI

Specification

Special equipment

Download datasheets (PDF)

IHI 55N-2 FAQ

When was the IHI 55N-2 manufactured?

How much does the IHI 55N-2 mini excavator weigh?

What are the transport dimensions of the IHI 55N-2 mini excavator?

What is the track width of the undercarriage on the IHI 55N-2 mini excavator?

What are the excavation performance specifications of the IHI 55N-2 mini excavator?

What are the bucket specifications of the IHI 55N-2 mini excavator?

How much is a IHI 55N-2 Mini excavator (2007u20132016) worth?

IHI 55N-2 overview

IHI 55N-2 features overview

Hydraulics

Dimensions and weight

Other features

Safety

Tables

Machine inspection

Ask for inspection of your IHI 55N-2 from experts

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

Compare IHI 55N-2 with similar Mini Excavators

IHI 55N-2

Check other popular models from Mini Excavators

Sell IHI 55N-2

Mini Excavators appraisal with LECTURA Valuation

Spare parts & Components

Get spare parts for IHI 55N-2 easily from our partners

Transport

Mini Excavators Transport & Shipping Services

News

Construction News by LECTURA 07.07.2026
