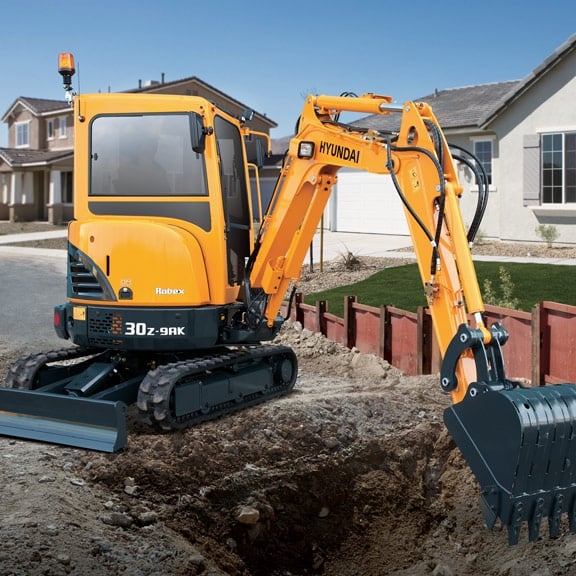

Hyundai R30Z-9AK is a mini excavator manufactured since 2020. It has a weight of 3.05 tons and a track width of 300 mm. The transp…

Hyundai R30Z-9AK is a mini excavator manufactured since 2020. It has a weight of 3.05 tons and a track width of 300 mm. The transport dimensions are 4.18 meters in length, 1.55 meters in width, and 2.5 meters in height. The machine features a tear-out force of 13.1 kN, a dredging depth of 2.5 meters, and a maximum horizontal reach of 4.65 meters. The bucket width is 0.51 meters with a capacity of 0.08 cubic meters. Special equipment includes a blade and rubber tracks.

Visit Hyundai live at

R30Z-9AK

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - R30Z-9AK Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.05 t

Transport length: 4.18 m

Transport width: 1.55 m

Transport height: 2.5 m

Bucket capacity: 0.08 m³

Bucket capacity min.: 0.08 m³

Bucket capacity max.: 0.08 m³

Bucket width: 0.51 m

Track width: 300 mm

Driver protection: KbR

Max. Reach horizontal: 4.65 m

Dredging depth: 2.5 m

Tear-out force: 13.1 kN

Model series: 9AK

Engine manuf.: Kubota

Engine type: D1305

Engine power: 18.5 kW

Displacement: 1.261 l

Revolutions at max torque: 1600 rpm

Max. torque: 81 Nm

Emission level: V

More technical details, like: standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Hyundai R30Z-9AK FAQ

When was the Hyundai R30Z-9AK manufactured?

The Hyundai R30Z-9AK was first produced in 2020.

How much does the Hyundai R30Z-9AK weigh?

The Hyundai R30Z-9AK weighs 3.05 tons.

What are the transport dimensions of the Hyundai R30Z-9AK mini excavator?

The Hyundai R30Z-9AK has a transport length of 4.18 meters, a transport width of 1.55 meters, and a transport height of 2.5 meters.

What is the track width of the Hyundai R30Z-9AK mini excavator's undercarriage?

The Hyundai R30Z-9AK mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Hyundai R30Z-9AK mini excavator?

The Hyundai R30Z-9AK mini excavator has a dredging depth of 2.5 meters and a maximum horizontal reach of 4.65 meters.

What is the tear-out force of the Hyundai R30Z-9AK mini excavator?

The Hyundai R30Z-9AK mini excavator has a tear-out force of 13.1 kN.

What are the specifications of the primary work tool bucket on the Hyundai R30Z-9AK mini excavator?

The Hyundai R30Z-9AK mini excavator has a bucket with a capacity of 0.08 cubic meters and a width of 0.51 meters.

What operator safety and support features does the Hyundai R30Z-9AK have?

The Hyundai R30Z-9AK is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Hyundai R30Z-9AK Mini excavator (2020u20132025) worth?

The residual value of the Hyundai R30Z-9AK depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hyundai R30Z-9AK overview

Hyundai R30Z-9AK features overview

Dozer blade
The large dozer blade makes the excavator more versatile as well as improving efficiency and stability at work.

Engine / Driveline and transmission

Engine
The compact Kubota D1305 EU Stage V compliant engine is powerful, fuel efficient and keeps emissions to a minimum without requiring additional aftertreatment systems.
Auto shift travel system
During high speed travel, the auto-shift travel system automatically shifts down under heavy loads to increase driving motor performance and shift up again as soon as the load is reduced.
Cylinder covers
The standard boom cylinder cover and dozer cylinder cover provide added protection.
Fuel filters
Hyundai fuel filters provide the right level of filtration to keep your engine clean. They are designed to meet and exceed the requirements of the engine manufacturer for water separation and dirt filtration; thus, life-longness of your engine is extended.

Hydraulics

Serviceability & Durability
Wide opening hood & covers, easy-to-use air cleaner, centralized grease fittings, durable hydraulic oil and filter, Durable shims & bushings, Extended life components.
Hydraulic oil and filter
All components are selected for extended service intervals, low operating costs and minimum machine downtime. These include bushings with longer lubrication intervals (250 hours), wear-resistant, noise reducing polymer shims as well as durable hydraulic filters (1000 hours) and hydraulic oil (5000 hours). Efficient cooling systems and integrated preheating plants further improve performance and durability.
Engine hood/cover
Wide opening doors, covers and hoods allow easy access for maintenance tasks.
Indicators and gauges
A number of gauges and warning indicators are displayed on the monitor. The monitoring system allows you to check machine status at a glance, including an hour meter, oil pressure lamp, battery change light, engine coolant temperature indicator and fuel gauge.

Tyres / Tracks

Selector valve
The dial valve makes it easy to select single-acting pipes (for a breaker) or double-acting tubes (for a clamshell). For quick access and control, the double-acting pipe is placed on the front of the fuel tank.

Dimensions and weight

Shoe Width		Rubber shoe 300 mm
Operating weight	Cabin	3005 kg
Canopy	2895 kg
Option Weight	Quick coupler	+ 46 kg
Canopy	- 110 kg
Additional counter weight	+ 130 kg
Ground pressure	Cabin	0.29 kg/cm2 (4.12 psi)
Canopy	0.27 kg/cm2 (3.84 psi)

Boom: 2030 mm

Arm: 1120 mm

Counterweight: 220 kg

Shoe: 250 mm

dozer down"

Lift-point radius

At max. Reach

Lift-point height m

1.0 m

1.5 m

2.0 m

2.5 m

3.0

3.5 m

Capacity

Reach

3.0 m

*720

620

2.64

2.5 m

*690

500

*620

450

3.20

2.0 m

*690

500

*700

390

*580

380

3.55

1.5 m

*830

660

*760

490

*730

380

*570

340

3.78

1.0 m

*1060

630

*870

480

*780

380

*580

320

3.91

0.5 m

*1300

600

*990

460

*840

370

*600

310

3.95

0.0 m

*1450

590

*1090

450

*890

360

*650

310

3.91

-0.5 m

*1550

810

*1500

580

*1130

440

*910

360

*740

320

3.78

-1.0 m

*1260

*1440

1360

*2020

810

*1450

570

*1100

440

*860

360

*820

350

3.56

-1.5 m

*1790

*2160

1370

*1770

820

*1300

580

*970

440

*840

410

3.21

-2.0 m

*1920

1390

*1330

830

*950

590

*830

540

2.66

Lift-point height m	Lift-point radius	At max. Reach
1.0 m	1.5 m	2.0 m	2.5 m	3.0	m	3.5 m	Capacity	Reach
												Lof		m
3.5 m	kg													*720	580	2.64
3.0 m	kg									590	470			530	420	3.20
2.5 m	kg									590	470	450	360	440	350	3.55
2.0 m	kg							780	620	580	460	450	360	400	320	3.78
1.5 m	kg							750	590	560	450	440	350	370	300	3.91
1.0 m	kg							720	560	550	430	430	350	360	290	3.95
0.5 m	kg							700	550	530	420	430	340	360	290	3.91
0.0 m	kg					990	750	690	540	530	410	420	330	380	300	3.78
-0.5 m	kg	*1260	*1260	*1440	1240	1000	750	690	530	520	410	420	330	410	330	3.56
-1.0 m	kg	*1790	*1790	1770	1250	1000	760	690	540	530	410			480	380	3.21
-1.5 m	kg			1800	1280	1020	770	710	550					650	510	2.66

A	Overall width of upper structure	1485
B	Overall width of cab	1050
C	Overall height of cab	2500
D	Tail swing radius - standard counterweight	775
Tail swing radius - additional counterweight	875
E	Overall width	1550
F	Clearance under counterweight	540
G	Ground clearance	290
H	Tumbler distance	1550
I	Track length	1970

Boom: 2030 mm

Arm: 1350 mm

Counterweight: 350 kg

Shoe: 250 mm

dozer down"

Lift-point height m

Lift-point radius

At max. Reach

1.0 m

1.5 m

2.0 m

2.5 m

3.0 m

3.5 m

4.0 m

Capacity

Reach

3.5 m

*550

2.99

3.0 m

*490

450

3.48

2.5 m

*590

570

*620

440

*470

380

3.80

2.0 m

*670

560

*660

440

*470

350

*460

350

4.01

1.5 m

*1220

1020

*930

720

*790

540

*720

430

*680

350

*460

330

4.13

1.0 m

*1190

690

*930

530

*790

420

*710

340

*480

320

4.17

0.5 m

*1340

930

*1380

670

*1040

510

*860

410

*740

340

*520

320

4.13

0.0 m

*1540

910

*1480

650

*1110

500

*900

400

*610

330

*570

330

4.01

-0.5 m

*1050

*1260

*2020

910

*1480

650

*1120

500

*890

400

*670

360

3.80

-1.0 m

*1470

*1800

1520

*1920

910

*1380

650

*1040

500

*790

410

3.49

-1.5 m

*1980

*2440

1540

*1570

930

*1140

660

*810

510

*800

500

3.01

-2.0 m

*890

*740

2.21

Boom: 2030 mm	Arm: 1350 mm	Counterweight: 350 kg	Shoe: 250 mm	dozer up"
Lift-point height m	Lift-point radius	At max. Reach
1.0 m	1.5 m	2.0 m	2.5 m	3.0 m	3.5 m	4.0 m	Capacity	Reach
																	m
3.5 m	kg															*550	530	2.99
3.0 m	kg															*490	420	3.48
2.5 m	kg									*590	540	510	420			450	360	3.80
2.0 m	kg									650	530	510	410	410	330	410	330	4.01
1.5 m	kg					*1220	960	850	680	640	510	500	400	400	330	380	310	4.13
1.0 m	kg							820	650	620	490	490	390	400	320	380	300	4.17
0.5 m	kg					1130	860	790	620	600	480	480	390	390	320	380	300	4.13
0.0 m	kg					1110	850	780	610	590	470	470	380	390	310	390	310	4.01
-0.5 m	kg	*1050	*1050	*1260	*1260	1110	840	770	600	590	460	470	380			420	340	3.80
-1.0 m	kg	*1470	*1470	*1800	1400	1120	850	770	600	590	470					480	380	3.49
-1.5 m	kg	*1980	*1980	1990	1420	1130	860	780	610	600	470					590	470	3.01
-2.0 m	kg					*890	890									*740	*740	2.21

Other features

Operator comfort
Spacious cab, Ergonomic Soft Grip joysticks, Centralized monitoring system with warning indicators, Mechanical suspension seat with seat belt, Adjustable armrests and wrist rests, Radio & MP3 player.
Slidable front window
The slippery front window (cabin model only) is easy to open and kept safely in the opened position.
Storage
The right-hand console features different sized cup holders for storing large and small drinks. A lockable storage box is installed under the seat to keep your belongings.
Tilting left-side console
The left console can be tilted, making it easier to enter and exit the cab.

Safety

Safety lever
A safety lever is installed to prevent inadvertent activation of the hydraulic attachments. If the safety lever is positioned upright, hydraulic functions are disabled.

Tables

Model		Kubota / D1305-EF04
Type		4 Cycle Diesel engine	in line	water cooled"
Rated flywheel horse power
SAE	J1995 (gross)	18.5 kW (24.9 HP) / 2400 rpm
J1349 (net)	18.2 kW (24.4 HP) / 2400 rpm
DIN	6271/1 (gross)	18.5 kW (25.2 PS) / 2400 rpm
6271/1 (net)	18.2 kW (23.5 PS) / 2400 rpm
Max. torque		8.3 kgf.m / 1600 rpm
Bore x stroke		78 mm x 88 mm
Piston displacement	1261 cc
Batteries	12 V - 58 Ah
Starting motor	12 V - 1.4 kW
Alternator	12 V - 40 A

No. of cylinder - bore x stroke
Boom	75 x 565 mm
Arm	70 x 500 mm
Bucket	60 x 420 mm
Boom swing	75 x 400 mm
Dozer blade	95 x 140 mm

Max. travel speed (high / low)	4.3 km/h / 2.4 km/h
Maximum traction force	2.4 ton
Maximum gradeability	30°
Parking brake (Option)	wet disc

Swing motor	Axial piston motor
Swing reduction	Planetary gear reduction
Swing bearing lubrication	Grease-bathed
Swing brake	Wet disc
Swing speed	9.1 rpm

X-leg type center frame is integrally welded with reinforced box-section track frames. The undercarriage includes lubricated rollers	track adjusters with shock absorbing springs and sprockets and rubber shoes."
Center frame	X-leg type
Track frame	Pentagonal box type
No. of carrier rollers on each side	1
No. of track rollers on each side	3

Type	variable displacement piston pumps
Max. flow	2 x 27.6 + 19.6 /min
Sub-pump for pilot circuit	Gear pump

	Boom length		2030
	Arm length	1120	*1350
A	Max. digging reach	4650	*4860
A'	Max. digging reach at ground	4515	*4735
B	Max. digging depth	2500	*2720
C	Max. vertical wall digging depth	2085	*2310
D	Max. digging height	4270	*4405
E	Max. dumping height	2890	*3030
F	Min. front swing radius	2055	*2090

Events

Visit Hyundai live at

SteinExpo 2026

Homberg/Nieder-Ofleiden, Germany

September 2 — 5

NordBau 2026

Holstenhallen Neumünster, Germany

September 9 — 13

Machine inspection

Ask for inspection of your Hyundai R30Z-9AK from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we gather data since 40 years and using this knowledge, we can support sellers with price information of used mini excavators, such as Hyundai R30Z-9AK.

Check what new and used models of mini excavators you can get in each price range:

Data provided by

Compare Hyundai R30Z-9AK with similar Mini Excavators

Hyundai R30Z-9AK

Weight:: 3.05 t

Transport length:: 4.18 m

Transport width:: 1.55 m

Transport height:: 2.5 m

Kato 25V4-F

Weight:: 2.5 t

Transport length:: 4 m

Transport width:: 1.55 m

Transport height:: 2.46 m

PowerPlus PP35E-IX

Weight:: 3.08 t

Transport length:: 4.51 m

Transport width:: 1.45 m

Transport height:: 2.4 m

Thomas T-15S

Weight:: 3.3 t

Transport length:: 3.8 m

Transport width:: 1 m

Transport height:: 2.1 m

Check other popular models from Mini Excavators

Kubota U35

Weight:: 3.4 t

Kubota KX121-3 GL

Weight:: 3.9 t

Kubota KX057-4

Weight:: 5.54 t

New Holland E30C

Weight:: 3 t

New Holland E60C

Kubota KX71-3S

Weight:: 2.97 t

Kubota U17

Weight:: 1.73 t

Kubota K008-3

Weight:: 1 t

John Deere Construction 260

Weight:: 3.584 t

John Deere Construction 50

Weight:: 4.3 t

John Deere Construction 70

Yanmar SV40

Weight:: 4.32 t

Sell Hyundai R30Z-9AK

Mini Excavators appraisal with LECTURA Valuation

Whether you need to see price of your Hyundai R30Z-9AK or valuation of your Mini Excavators fleet, LECTURA Valuation will help. Simply fill the machine information and see the pricing information for Mini Excavators in few clicks.

Valuate right now!

Data provided by

Spare parts & Components

Get spare parts for Hyundai R30Z-9AK easily from our partners

Do your lookup for high quality parts for Hyundai R30Z-9AK online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Mini Excavators spare parts easily today - worldwide.

Get parts for Hyundai R30Z-9AK now!

Transport

Mini Excavators Transport & Shipping Services

In case you need to transport your machine, utilise our services. Check favourable transport quotes for Mini Excavators created on transport dimensions and machine weight. Our partners provide extensive services to fit your requirements.

Ask for transport price

Data provided by

News

Construction News by LECTURA 24.06.2026
