H27DR Long Hanix excavator specs & dimensions (2019 - 2026)

Hanix H27DR Long is a mini excavator manufactured since 2019, with a weight of 2.82 tons. It features a track width of 300 mm, a t…

Hanix H27DR Long is a mini excavator manufactured since 2019, with a weight of 2.82 tons. It features a track width of 300 mm, a transport length of 4.22 meters, a transport width of 1.55 meters, and a transport height of 2.46 meters. The machine has a tear-out force of 21.6 kN, a dredging depth of 2.86 meters, and a maximum horizontal reach of 4.81 meters. The bucket width is 0.76 meters with a capacity of 0.07 cubic meters. Special equipment includes air conditioning and a blade.

H27DR Long

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H27DR Long Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.82 t

Transport length: 4.22 m

Transport width: 1.55 m

Transport height: 2.46 m

Bucket capacity: 0.07 m³

Bucket width: 0.76 m

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 4.81 m

Dredging depth: 2.86 m

Tear-out force: 21.6 kN

Model series: H

Engine manuf.: Kubota

Engine type: D1105

Engine power: 14.4 kW

Displacement: 1.123 l

Revolutions at max torque: 2400 rpm

Max. torque: 45.4 Nm

No. of cylinders: 3

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

H27DR Long Hanix Specification for Europe (EN)

Hanix H27DR Long FAQ

When was the Hanix H27DR Long manufactured?

The Hanix H27DR Long was first produced in 2019.

How much does the Hanix H27DR Long weigh?

The Hanix H27DR Long weighs 2.82 tons.

What are the transport dimensions of the Hanix H27DR Long mini excavator?

The Hanix H27DR Long has a transport length of 4.22 meters, a transport width of 1.55 meters, and a transport height of 2.46 meters.

What is the track width of the Hanix H27DR Long mini excavator?

The Hanix H27DR Long mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Hanix H27DR Long mini excavator?

The Hanix H27DR Long mini excavator has a dredging depth of 2.86 meters and a maximum horizontal reach of 4.81 meters.

What is the tear-out force of the Hanix H27DR Long mini excavator?

The Hanix H27DR Long mini excavator has a tear-out force of 21.6 kN.

What are the bucket specifications of the Hanix H27DR Long mini excavator?

The Hanix H27DR Long mini excavator has a bucket capacity of 0.07 cubic meters and a bucket width of 0.76 meters.

What operator safety features does the Hanix H27DR Long have?

The Hanix H27DR Long has a cabin for driver protection.

How much is a Hanix H27DR Long Mini excavator (2019u20132025) worth?

The residual value of the Hanix H27DR Long depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hanix H27DR Long overview

Hanix H27DR Long features overview

Safety
Lever lock prevents inadvertent hydraulic operation and starting of the engine, battery isolator switch. Emergency boom lowering valve. Auxiliary flow socket for beacon. ROPS & FOPS cab. Retractable seat belt. External mirrors. Compact zero tail design helps reduce contact risk with objects and personnel.

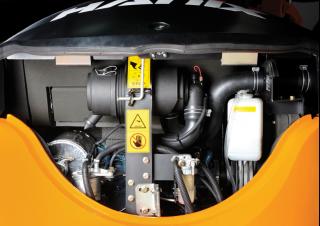

Serviceability
Large engine canopy allows easy access for daily checks. Large easily removable service covers give access to more involved maintenance tasks. 2-piece dozer hoses allow light and cost-effective replacement when damage occurs. Bushing boom bracket and rotary table enable cost effective replacement of wear parts. factory adjusted hydraulic test points facilitate fault diagnosis if necessary. Reliable and efficient technology without requiring electronic diagnostics.
Ease of operation
Pilot operated hydraulic controls support smooth and precise operation. Excellent all round visibility. Thumb-activated proportional boom swing and auxiliary hydraulic functions integrated into joysticks. Adjustable operator seat with suspension. Auto motor idle and shutdown function supports economy.

Dimensions and weight

MACHINE SPECIFICATIONS
Machine Weight - Cabin Rubber Tracks Standard (Long)	kg	2690 (2825)
Dimensions [Length Standard (Long) / Width / Height]	mm	4170 (4220) / 1550 / 2460
Dozer Blade Dimensions (Width / Height)	mm	1550 / 300
Noise Level (LwA / LpA)	dB(A)	93 / 77
Ground Pressure - Cabin Rubber Tracks	kPa / psi	26.7 / 3.87
ENGINE
Make / Model / Cylinders / Displacement (cc)		Kubota / D1105 / 3 / 1123
Rated Power	kW / ps	14.4 / 19.6 @ 2400 rpm
Maximum Torque	Nm	45.4
WORKING RANGE
Maximum Digging Depth Standard (Long)	mm	2580 (2860)
Maximum Digging Height Standard (Long)	mm	4225 (4410)
Maximum Dumping Height Standard (Long)	mm	2855 (3040)
Maximum Vertical Digging Depth Standard (Long)	mm	2010 (2275)
Maximum Digging Radius Standard (Long)	mm	4660 (4930)
Maximum Reach at Ground Standard (Long)	mm	4530 (4810)
Minimum Turning Radius Front Standard (Long)	mm	2045 (2075)
Minimum Turning Radius Swing Standard (Long)	mm	1685 (1715)
Rear Turning Radius Standard Counterweight (Additional Counterweight)	mm	775 (870)
Boom Swing Angle (L / R)	degrees	L70 / R50
PERFORMANCE
Maximum Digging Power (Bucket / Arm)	kN	21.6 / 16.3
Travel Speed (Low / High)	km/h	2.2 / 4.1
Slew Speed	rpm	11
Gradeability	degrees	30
HYDRAULIC SYSTEM
Hydraulic Pump Types		Piston x 2 + Gear x 2
Hydraulic Pump Flows	litres / min	33.6 x 2 + 22.8 + 6.5
Auxiliary Hydraulic Flow (PTO)	litres / min	56.4
Relief Pressures	Mpa	21.6 x 2 + 17.2 + 3.4
FLUID CAPACITIES
Fuel Tank	litres	31
Hydraulic Tank	litres	55
Engine Oil	litres	3.6
Cooling System	litres	4
Travel Motor Reduction Gearbox	litres	0.6

Other features

Versatility
The compact zero tail design maximizes performance on space restricted jobsites. Two-speed travel and straight line tracking. 2-way proportional auxiliary hydraulic service for operating a variety of attachments such as breakers and augers. Spacious comfortable cab with heater to operate in any weather.
