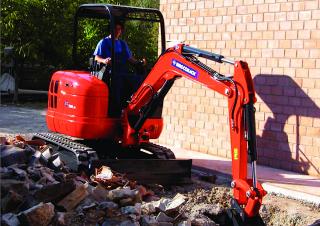

ES 300 SR Eurocomach excavator specs & dimensions (2006 - 2012)

Automatic Shift-down
This device allows automatic change from second to first speed when tractive force increases without the operator's intervention.

TOPS ( ISO 13531 ) / FOPS ( ISO 3449 ) Canopy, rubber tracks, dozer blade 1500 mm, Automatic emergency brake during rotation and translation, Translation double speed with Automatic Shift Down (automatic change from 2 to 1 gear increasing traction stress), Digging arm 1150 mm, Ignition pass key (universal key for all locks of the machine), Adjustable seat with seat belt, Air dry filter with electric indicator for clogging, service tool compartment, spare part book, application and maintenance book and tool chest, Unipolar socket on dashboard and top of cab for flashlight, working light on lift arm, cylinder guard (boom and dozer unit), Hydraulic circuit for hammer/drill/spool bucket

OPTIONAL EQUIPMENTS
TOPS ( EN 13531 ) / FOPS ( ISO 3449 ) closed cab with heating system, front windscreen wiper and washer, predisposition for stereo system, rear view mirrors (right and left). Steel tracks, Long digging arm, air conditioning, safety valves on first and second arm, Stereo installation, hydraulic circuit High flow for grass cutters, grass planer (width mm 800 and mm 10, working lights and rotating lamp on the cabin, certified lift hook with safety valves on first and second arm, mechanical or hydraulic quick coupler (for buckets or fittings), bucket from 300 mm up to 1000 mm, stick cleaning bucket from 1000 mm up to 1200 mm (both fixed or swinging), trapezoidal shovel, Kg. 95 Hydraulic hammer with bits, hydralic pliers for logs (fixed or with 360 hydraulic rotor), hydraulic bore with bits of 150 mm diameter up to 350 mm diameter and extension for drill bits (mm 10, electric pump for fuel tank filling)

VERSATILITY / EQUIPMENTS
Availability of various configurations allows each operator to choose the right machine for his own needs: standard or long digging arm (+ 20 cm), rubber or steel tracks (with or without rubber shoe cover) and a very large choice of digging or loading buckets with traditional or fast coupler. The simple or double-acting hydraulic arrangement, a standard unit on all our Eurocomach mini diggers, permits the use of a large range of equipment with different specifications: from demolition hammer to bore, from pliers to grading shovels; everything can be used by simply acting on a switch placed under the footboard. Thanks to an additional hydraulic layout it will also be possible to use the cutter in the most correct and functional way possible.

COMFORT / VISIBILITY
The new generation of Eurocomach mini diggers have been studied and manufactured to ensure operator satisfaction.The cab is spacious and the operator seat wide and comfortable. Special attention has been given to the interior of the cabin; panels in ABS are located on all internal surfaces, the second speed travel system is placed on the joystick (and not pedal) so that more space can be left at the footboard, the seat is adjustable, the front glass has given an opening mechanism made of gas springs, there is an efficient heating and ventilation system and if desired air conditioning for better thermal comfort throughout the year. To provide the best access to the machine in any situation, the door was designed with a book opening.

MAINTENANCE/ACCES TO SUPPLIES
All there is to do is open the rear plate and everything is within easy reach to perform the simple but important maintenance process without any difficulty or wastage of time (all filters can be easily reached). Fuel and hydraulic oil tanks have an antivandalism lock-up and are protected by the side hood in a safe and readily accessible position. Controlling pressures has been simplified by positioning the gauge point next to the hydraulic oil tank. Just below it, the distributor that one can access quickly and easily with only part of the side box being dismantled
