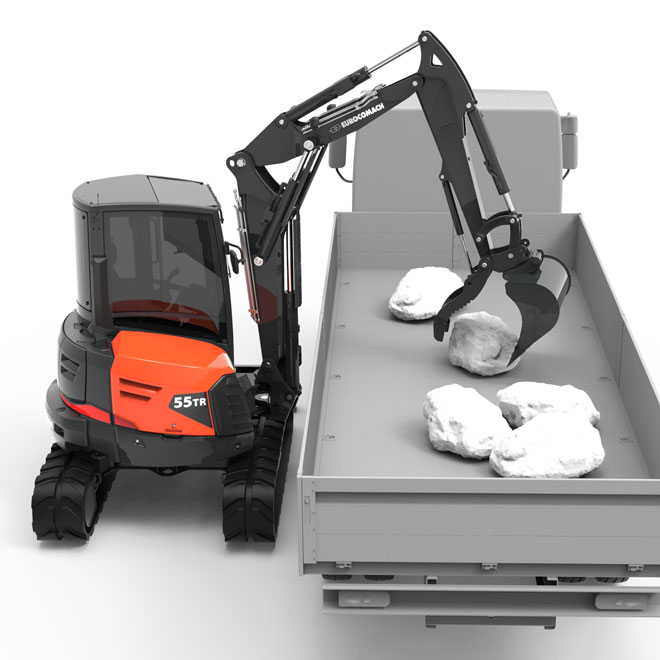

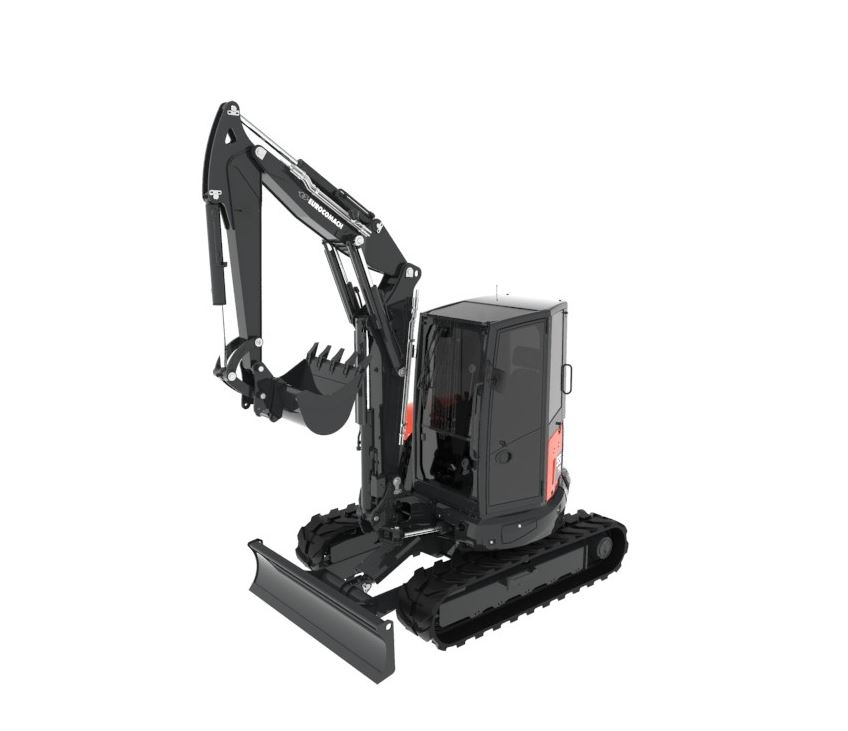

55 TR Eurocomach excavator specs & dimensions (2021 - 2023)

Eurocomach 55 TR is a mini excavator manufactured since 2021, with a weight of 5.25 tons. It features a track width of 400 mm, a t…

Eurocomach 55 TR is a mini excavator manufactured since 2021, with a weight of 5.25 tons. It features a track width of 400 mm, a transport length of 5.68 meters, a transport width of 1.9 meters, and a transport height of 2.57 meters. The machine has a tear-out force of 43 kN, a dredging depth of 3.49 meters, and a maximum horizontal reach of 6.31 meters. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

55 TR

Years of manufacture: 2021—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 55 TR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.25 t

Transport length: 5.68 m

Transport width: 1.9 m

Transport height: 2.57 m

Track width: 400 mm

Driver protection: KbR

Max. Reach horizontal: 6.31 m

Dredging depth: 3.49 m

Tear-out force: 43 kN

Model series: MME

Engine manuf.: Kubota

Engine type: V2403-CR-T

Engine power: 42.6 kW

Displacement: 2.434 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

Eurocomach 55 TR FAQ

When was the Eurocomach 55 TR manufactured?

The Eurocomach 55 TR was manufactured from 2021 to 2023.

How much does the Eurocomach 55 TR weigh?

The Eurocomach 55 TR weighs 5.25 tons.

What are the transport dimensions of the Eurocomach 55 TR mini excavator?

The Eurocomach 55 TR has a transport length of 5.68 meters, a transport width of 1.9 meters, and a transport height of 2.57 meters.

What is the track width of the Eurocomach 55 TR mini excavator?

The Eurocomach 55 TR mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Eurocomach 55 TR?

The Eurocomach 55 TR has a dredging depth of 3.49 meters and a maximum horizontal reach of 6.31 meters.

What is the tear-out force of the Eurocomach 55 TR mini excavator?

The Eurocomach 55 TR mini excavator has a tear-out force of 43 kN.

What operator safety features does the Eurocomach 55 TR have?

The Eurocomach 55 TR is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Eurocomach 55 TR Mini excavator (2021u20132023) worth?

The residual value of the Eurocomach 55 TR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Eurocomach 55 TR overview

Dimensions and weight

HYDRAULIC SYSTEM
Circuit Type	Load Sensing closed center system with “Flow Sharing” control valve
Pump type	1 LS hydraulic variable pump with electronic control + 1 gear pump
Pump displacement	cc	65 + 14	5"
Pump capacity	lt/min	129 + 28	8"
Max. circuit calibration pressure	bar	280
Auxiliary systems (max pressure): AUX 1 single or double effect with priority AUX 2 double effect (optional)	lt/min (bar)	70 (200) 40/30 (280)
PERFORMANCES
Max. digging depth with standard arm (optional arm)	mm	3.490 (3.740)
Max. dumping height with standard arm (optional arm)	mm	5.030 (5.270)
Bucket breaking force (standard arm) ISO 6015	daN	4.300
Arm breaking force (standard arm) ISO 6015	daN	2.350
Traction force	daN	5.420
Ground bearing pressure with rubber tracks	kg/cm2	0	31"
Max. slope		60% - 30°


DIMENSIONS
Maximum width	mm	1.900
Total height	mm	2.570
Rear rotation radius	mm	1.050
Digging arm length std (optional)	mm	1.500 (1.750)
Tracks width	mm	400
Rollers number (for each side)	n°	5/1
FILLINGS
Fuel tank	lt	75
Hydraulic oil tank	lt	65
Hydraulic circuit capacity	lt	85
Cooling system capacity	lt	11
Engine oil	lt	9	5"

Tables

	2	3	4	5	MAX
Frontal and lowered dozer blade	*3.060	*1.530	*1.240	*1.140	*980
Frontal and lifted dozer blade	2.880	1.460	930	630	520
Lateral	1.970	1.080	700	470	390

Cooling		Liquid
Consumption	lt/h	6	9"
Alternator	V (A)	12 (60)
Battery	V (Ah)	12 (95)
