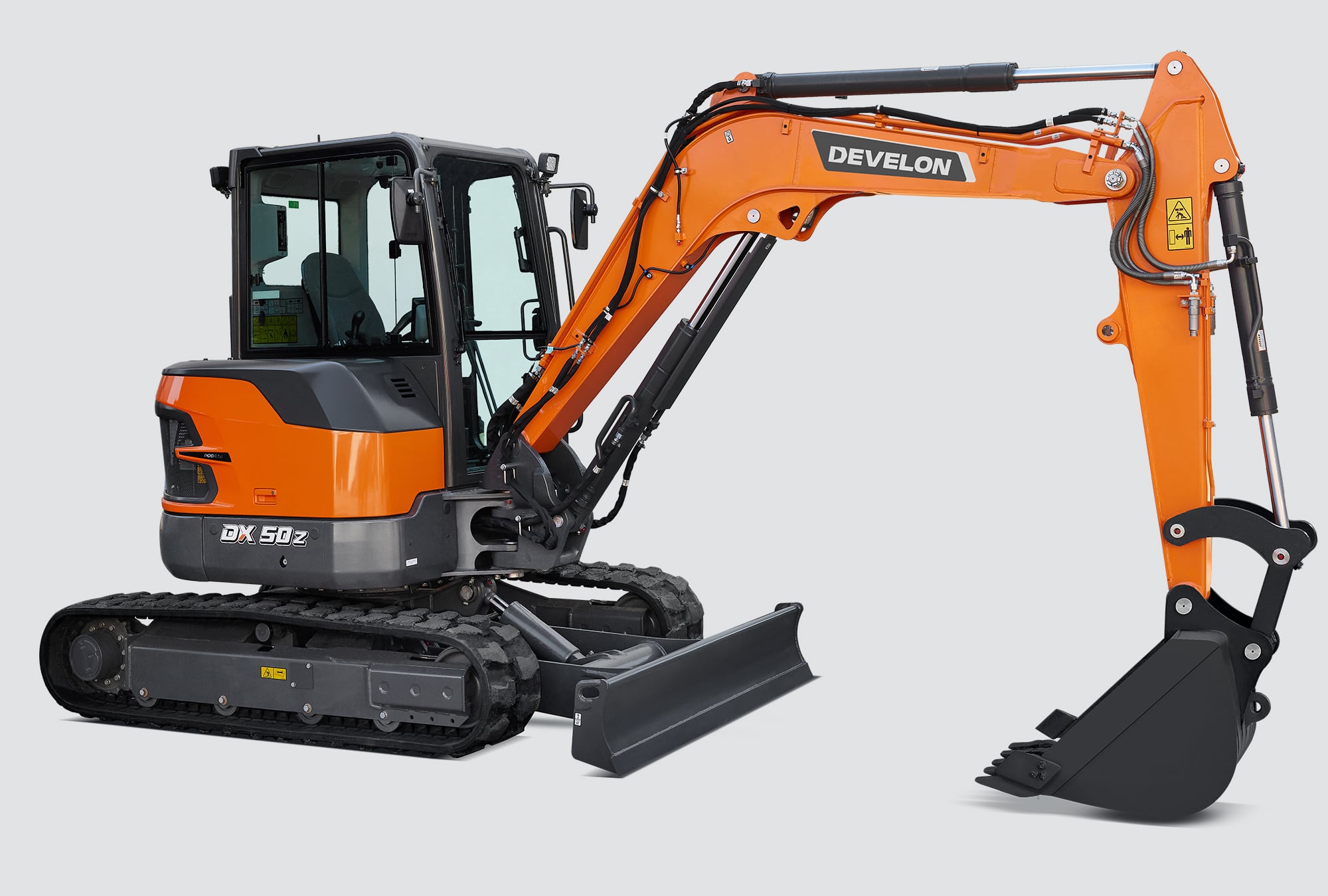

DX50Z-7 Develon excavator specs & dimensions (2023 - 2026)
Visit Develon live at
.jpg){kind=logo}
Technical specs - DX50Z-7 Develon
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.439 t
- Transport length
- 5.386 m
- Transport width
- 1.98 m
- Transport height
- 2.575 m
- Bucket capacity
- 0.16 m³
- Bucket capacity min.
- 0.16 m³
- Bucket capacity max.
- 0.16 m³
- Bucket width
- 0.669 m
- Track width
- 400 mm
- Driver protection
- KbR
- Max. Reach horizontal
- 5.945 m
- Dredging depth
- 3.48 m
- Tear-out force
- 23.5 kN
- Model series
- DX
- Engine manuf.
- Develon
- Engine type
- DM01VA
- Engine power
- 36.4 kW
- Dimension lxwxh
- 642x555x720 mm
- Displacement
- 1.8 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 180,4/1600 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 90 x 94 mm
- Emission level
- Stage V
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
Yes
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
