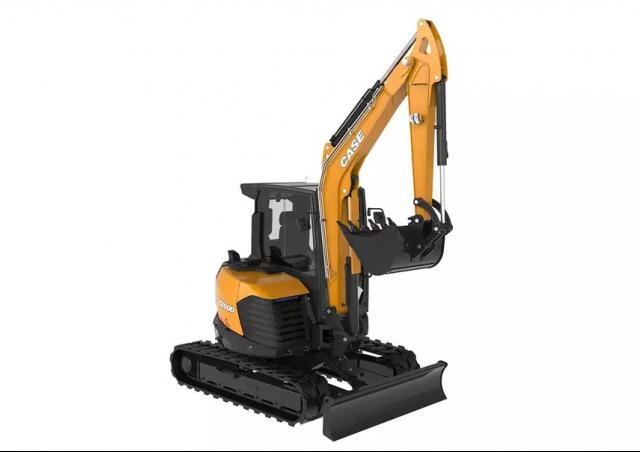

CX60D Case excavator specs & dimensions (2023 - 2026)

Weight: 5.7t – Transport length: 5.6m – Transport width: 1.98m – Transport height: 2.55m – Bucket capacity: 0.213m³ – Bucket capac…

Weight: 5.7t – Transport length: 5.6m – Transport width: 1.98m – Transport height: 2.55m – Bucket capacity: 0.213m³ – Bucket capacity min.: 0.06m³

Check out detailed specifications, information and technical data for Case CX60D excavator manufactured between 2023 - 2026. Get more in-depth insight with Case CX60D digger specifications. See information, like: Weight: 5.7t – Transport length: 5.6m – Transport width: 1.98m – Transport height: 2.55m – Bucket capacity: 0.213m³ – Bucket capacity min.: 0.06m³ and more.

Mini Excavators Case CX60D

Technical specs - CX60D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.7 t
Transport length
5.6 m
Transport width
1.98 m
Transport height
2.55 m
Bucket capacity
0.213 m³
Bucket capacity min.
0.06 m³
Bucket capacity max.
0.28 m³
Bucket width
0.8 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.36 m
Dredging depth
4.1 m
Tear-out force
53 kN
Engine manuf.
Kubota
Engine type
V2607-CR-T
Engine power
44.3 kW
Displacement
2.615 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
V

More technical details, like: standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Case CX60D FAQ

When was the Case CX60D manufactured?

The Case CX60D was first produced in 2023.

How much does the Case CX60D mini excavator weigh?

The Case CX60D mini excavator weighs 5.7 tons.

What are the transport dimensions of the Case CX60D mini excavator?

The Case CX60D has a transport length of 5.6 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Case CX60D mini excavator?

The Case CX60D mini excavator has a track width of 400 mm.

What is the excavation performance of the Case CX60D mini excavator?

The Case CX60D mini excavator has a dredging depth of 4.1 meters and a maximum horizontal reach of 6.36 meters.

What is the tear-out force of the Case CX60D mini excavator?

The Case CX60D mini excavator has a tear-out force of 53 kN.

What are the bucket specifications of the Case CX60D mini excavator?

The Case CX60D has a bucket capacity of 0.213 mu00b3, with a maximum capacity of 0.28 mu00b3 and a minimum capacity of 0.06 mu00b3, and a bucket width of 0.8 meters.

What operator safety features does the Case CX60D have?

The Case CX60D has driver protection in the form of a cabin.

How much is a Case CX60D Mini excavator (2023u20132025) worth?

The residual value of the Case CX60D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
