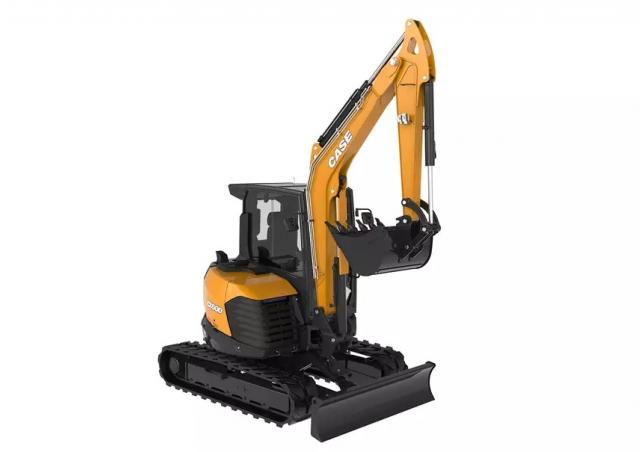

CX60D Case excavator specs & dimensions (2023 - 2026)

Case CX60D is a Crawler Excavator manufactured since 2023, with a weight of 6 tons. It features a track width of 400 mm, a transpo…

Case CX60D is a Crawler Excavator manufactured since 2023, with a weight of 6 tons. It features a track width of 400 mm, a transport length of 5.6 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters. The excavator has a tear-out force of 53 kN, a dredging depth of 4.1 meters, and a maximum horizontal reach of 6.49 meters. The bucket width is 0.8 meters, with a bucket capacity ranging from 0.058 m³ to 0.282 m³, and a standard bucket capacity of 0.213 m³. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

Mini Excavators Case CX60D

Technical specs - CX60D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.7 t
Transport length
5.6 m
Transport width
1.98 m
Transport height
2.55 m
Bucket capacity
0.213 m³
Bucket capacity min.
0.06 m³
Bucket capacity max.
0.28 m³
Bucket width
0.8 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.49 m
Dredging depth
4.1 m
Tear-out force
53 kN
Model series
D
Engine manuf.
Kubota
Engine type
V2607-CR-T
Engine power
44.3 kW
Displacement
2.615 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
V

More technical details, like: standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Case CX60D FAQ

When was the Case CX60D manufactured?

The Case CX60D was first produced in 2023.

How much does the Case CX60D mini excavator weigh?

The Case CX60D mini excavator weighs 5.7 tons.

What are the transport dimensions of the Case CX60D mini excavator?

The Case CX60D has a transport length of 5.6 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Case CX60D mini excavator?

The Case CX60D mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Case CX60D mini excavator?

The Case CX60D mini excavator has a dredging depth of 4.1 meters and a maximum horizontal reach of 6.49 meters.

What is the tear-out force of the Case CX60D mini excavator?

The Case CX60D mini excavator has a tear-out force of 53 kN.

What are the specifications of the primary work tool bucket on the Case CX60D mini excavator?

The Case CX60D mini excavator has a bucket with a capacity ranging from 0.06 to 0.28 cubic meters, a standard bucket capacity of 0.213 cubic meters, and a bucket width of 0.8 meters.

What operator safety and support features does the Case CX60D have?

The Case CX60D has a cabin that provides driver protection.
