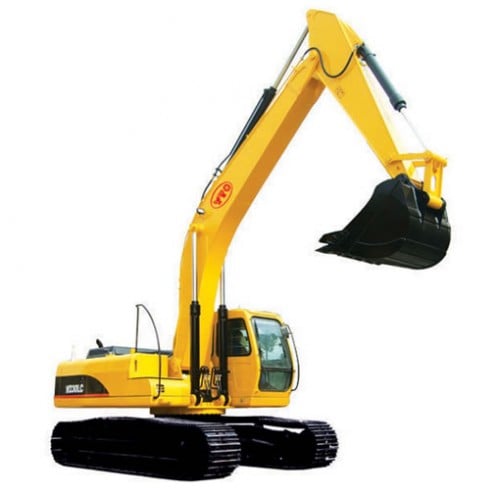

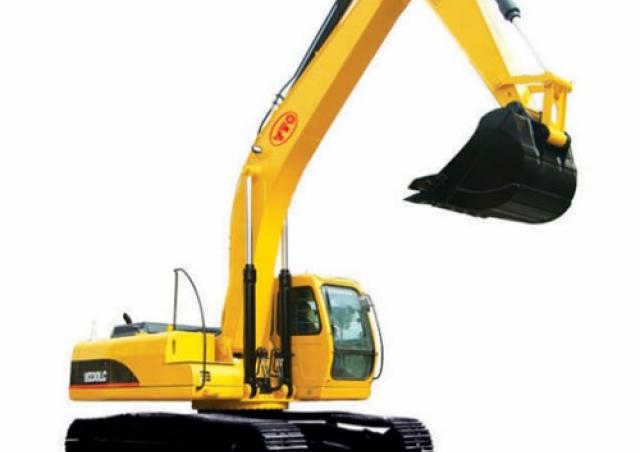

SW230LC-5 YTO excavator specs & Dimensions (2020 - 2026)

YTO SW230LC-5 is a crawler excavator manufactured since 2020, with a weight of 23.8 tons and a track width of 800 mm. It has a tea…

YTO SW230LC-5 is a crawler excavator manufactured since 2020, with a weight of 23.8 tons and a track width of 800 mm. It has a tear-out force of 135 kN, a dredging depth of 6.93 meters, and a maximum horizontal reach of 10.36 meters. The bucket capacity is 1.1 cubic meters.

Crawler Excavators YTO SW230LC-5

Technical specs - SW230LC-5 YTO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.8 t
Bucket capacity
1.1 m³
Track width
800 mm
Max. Reach horizontal
10.36 m
Dredging depth
6.93 m
Tear-out force
135 kN
Model series
SW
Engine manuf.
Cummins
Engine type
6BT5.9-C
Engine power
125 kW

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

YTO SW230LC-5 FAQ

When was the YTO SW230LC-5 manufactured?

The YTO SW230LC-5 was first produced in 2020.

How much does the YTO SW230LC-5 weigh?

The YTO SW230LC-5 weighs 23.8 tons.

What is the track width of the YTO SW230LC-5 crawler excavator?

The YTO SW230LC-5 crawler excavator has a track width of 800 mm.

What are the excavation performance specifications of the YTO SW230LC-5?

The YTO SW230LC-5 has a dredging depth of 6.93 meters and a maximum horizontal reach of 10.36 meters.

What is the tear-out force of the YTO SW230LC-5?

The YTO SW230LC-5 has a tear-out force of 135 kN.

What is the bucket capacity of the YTO SW230LC-5 excavator?

The YTO SW230LC-5 excavator has a bucket capacity of 1.1 cubic meters.
