SV120 Yanmar excavator specs & Dimensions (2024 - 2026)

Weight: 11.3t – Transport length: 6.73m – Transport width: 2.5m – Transport height: 2.75m – Bucket capacity min.: 1.49m³ – Bucket …

Weight: 11.3t – Transport length: 6.73m – Transport width: 2.5m – Transport height: 2.75m – Bucket capacity min.: 1.49m³ – Bucket capacity max.: 4.77m³

Check out detailed specifications, information and technical data for Yanmar SV120 excavator manufactured between 2024 - 2026. Get more in-depth insight with Yanmar SV120 digger specifications. See information, like: Weight: 11.3t – Transport length: 6.73m – Transport width: 2.5m – Transport height: 2.75m – Bucket capacity min.: 1.49m³ – Bucket capacity max.: 4.77m³ and more.

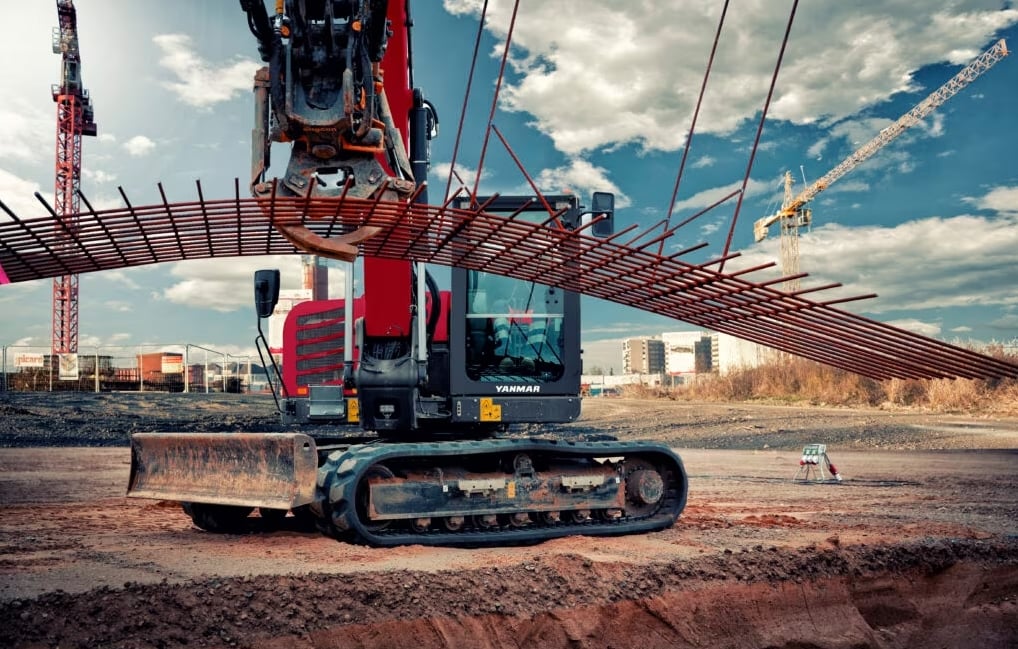

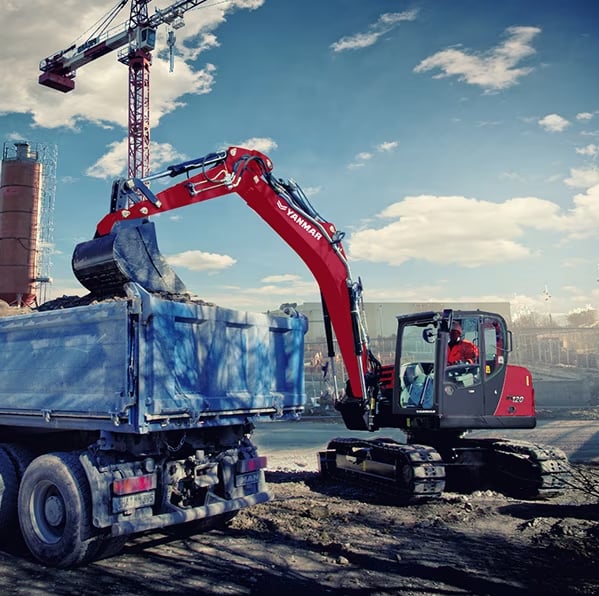

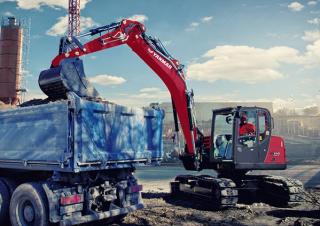

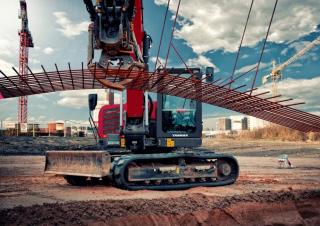

Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120
Crawler Excavators Yanmar SV120

Technical specs - SV120 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.3 t
Transport length
6.73 m
Transport width
2.5 m
Transport height
2.75 m
Bucket capacity min.
1.49 m³
Bucket capacity max.
4.77 m³
Track width
500 mm
Max. Reach horizontal
8.51 m
Dredging depth
5.05 m
Tear-out force
81.5 kN
Model series
SV
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
85 kW
Displacement
3.6 l
Revolutions at max torque
2000 rpm
Max. torque
400/1600 Nm
No. of cylinders
4

More technical details, like: bucket capacity, undercarriage, boom, bucket width, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV120 FAQ

When was the Yanmar SV120 manufactured?

The Yanmar SV120 was first produced in 2024.

How much does the Yanmar SV120 weigh?

The Yanmar SV120 weighs 11.3 tons.

What are the transport dimensions of the Yanmar SV120 crawler excavator?

The Yanmar SV120 has a transport length of 6.73 meters, a transport width of 2.5 meters, and a transport height of 2.75 meters.

What is the track width of the Yanmar SV120's undercarriage?

The Yanmar SV120 has a track width of 500 mm.

What are the excavation performance specifications of the Yanmar SV120?

The Yanmar SV120 has a dredging depth of 5.05 meters and a maximum horizontal reach of 8.51 meters.

Are there any power ratings available for the Yanmar SV120?

No power ratings are provided for the Yanmar SV120 in the available data.

What are the bucket capacity specifications of the Yanmar SV120 crawler excavator?

The Yanmar SV120 crawler excavator has a bucket capacity ranging from 1.49 to 4.77 cubic meters.

How much is a Yanmar SV120 Crawler excavator (2024u20132025) worth?

The residual value of the Yanmar SV120 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
