10 MCR Mecalac excavator specs & Dimensions (2012 - 2016)

Model rating
10,00 / 10

Mecalac 10 MCR is a Crawler Excavator manufactured from 2012 to 2016, with a weight of 10 tons and a track width of 450 mm. It has…

Mecalac 10 MCR is a Crawler Excavator manufactured from 2012 to 2016, with a weight of 10 tons and a track width of 450 mm. It has a transport length of 3.27 meters, a transport width of 2.3 meters, and a transport height of 2.97 meters. The excavator features a tear-out force of 34 kN, a dredging depth of 4 meters, and a maximum horizontal reach of 7 meters. It is equipped with a bucket capacity of 0.325 cubic meters and includes special equipment such as a blade.

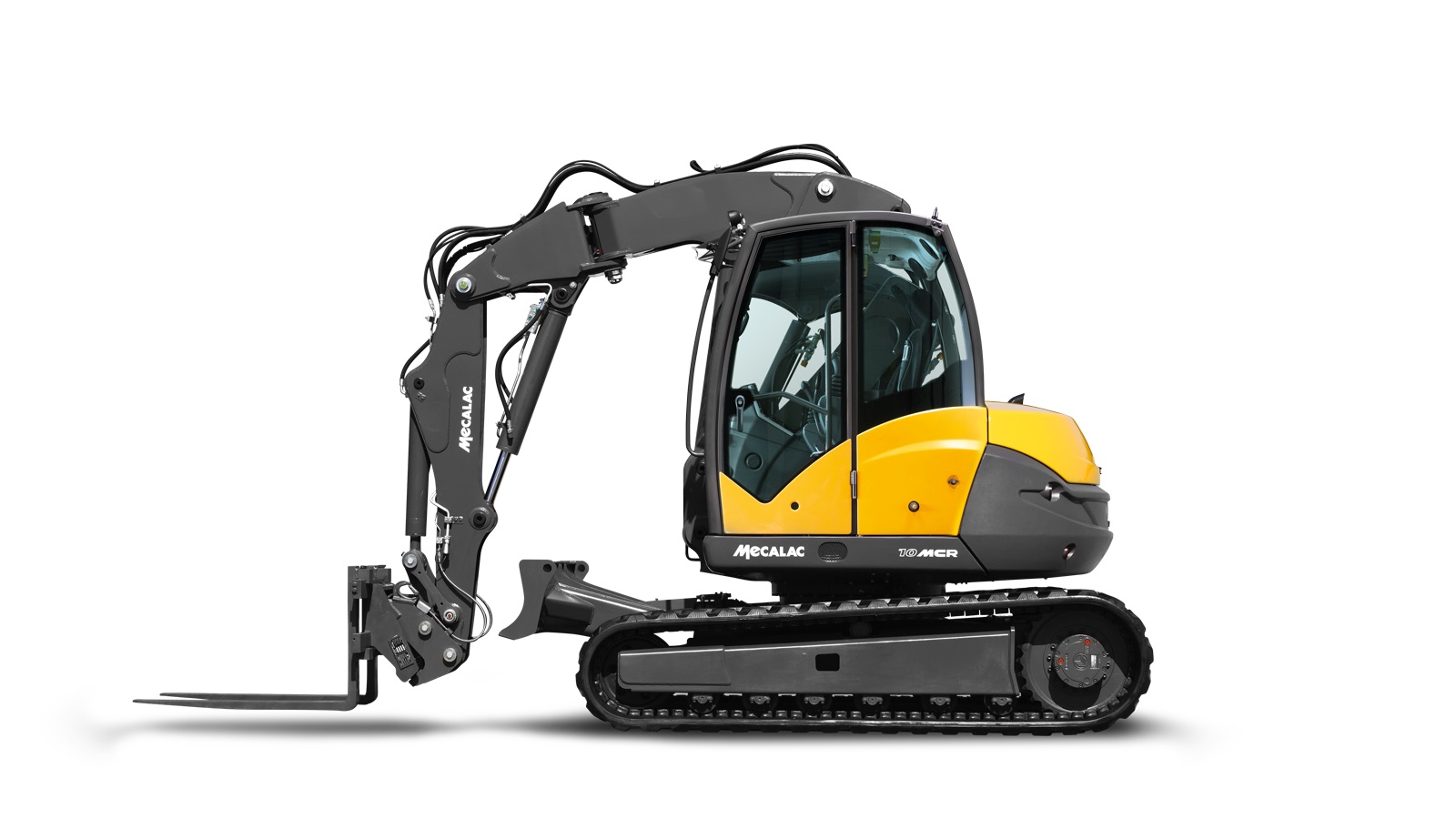

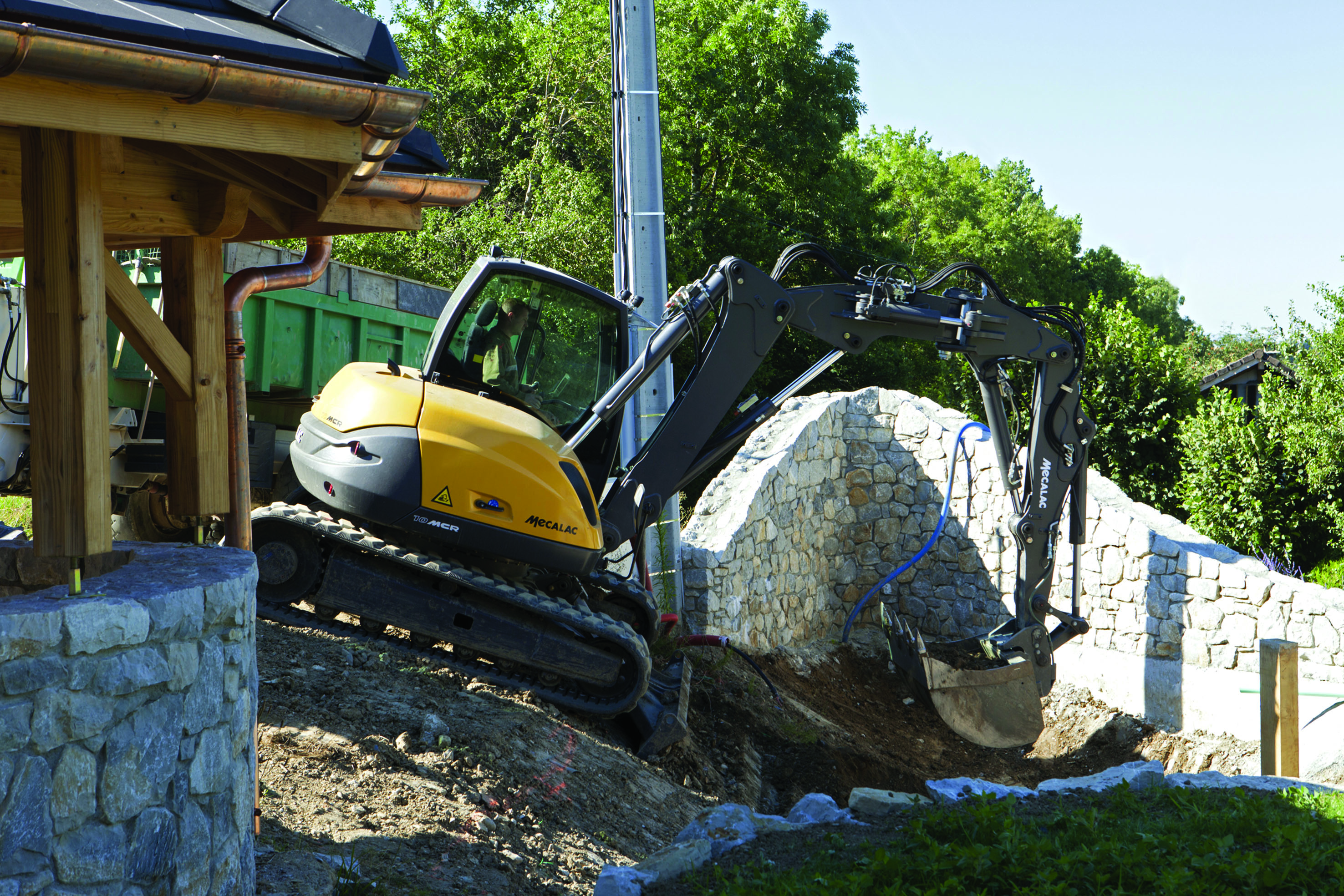

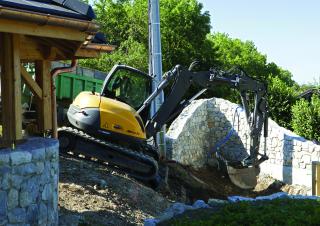

Crawler Excavators Mecalac 10 MCR
Crawler Excavators Mecalac 10 MCR
Crawler Excavators Mecalac 10 MCR
Crawler Excavators Mecalac 10 MCR

Technical specs - 10 MCR Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10 t
Transport length
3.27 m
Transport width
2.3 m
Transport height
2.97 m
Bucket capacity
0.325 m³
Undercarriage
SL
Track width
450 mm
Boom
VA/SKA
Max. Reach horizontal
7.5 m
Dredging depth
4 m
Tear-out force
34.3 kN
Bucket width
0.75 m
Model series
MCR
Engine manuf.
Cummins
Engine type
QSB3.3
Engine power
74 kW
Displacement
3.3 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 10 MCR FAQ

When was the Mecalac 10 MCR manufactured?

The Mecalac 10 MCR was manufactured from 2012 to 2016.

How much does the Mecalac 10 MCR weigh?

The Mecalac 10 MCR weighs 10 tons.

What are the transport dimensions of the Mecalac 10 MCR crawler excavator?

The Mecalac 10 MCR has a transport length of 3.27 meters, a transport width of 2.3 meters, and a transport height of 2.97 meters.

What are the undercarriage specifications of the Mecalac 10 MCR?

The Mecalac 10 MCR has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Mecalac 10 MCR crawler excavator?

The Mecalac 10 MCR crawler excavator has a dredging depth of 4 meters, a maximum horizontal reach of 7.5 meters, and features a lateral articulated, adjustable boom.

What are the power ratings of the Mecalac 10 MCR?

The available data does not provide power ratings for the Mecalac 10 MCR.

What are the specifications of the primary work tool on the Mecalac 10 MCR?

The primary work tool of the Mecalac 10 MCR has a bucket capacity of 0.325 cubic meters and a bucket width of 0.75 meters.
