SV 100 Yanmar excavator specs & Dimensions (2006 - 2010)

Model rating
7,00 / 10

Yanmar SV 100 is a crawler excavator manufactured from 2006 to 2010, with a weight of 9.25 tons. It features a track width of 485 …

Yanmar SV 100 is a crawler excavator manufactured from 2006 to 2010, with a weight of 9.25 tons. It features a track width of 485 mm, a transport length of 6.37 meters, a transport width of 2.32 meters, and a transport height of 2.83 meters. The excavator is equipped with air conditioning and a blade.

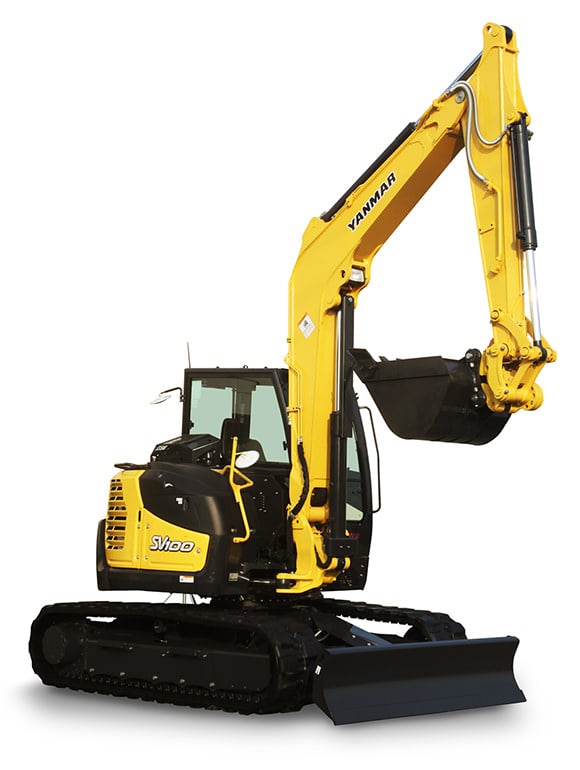

Crawler Excavators Yanmar SV 100
Crawler Excavators Yanmar SV 100
Crawler Excavators Yanmar SV 100
Crawler Excavators Yanmar SV 100
Crawler Excavators Yanmar SV 100
Crawler Excavators Yanmar SV 100

Technical specs - SV 100 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.25 t
Transport length
6.37 m
Transport width
2.32 m
Transport height
2.83 m
Bucket capacity
0.3 m³
Undercarriage
SL
Track width
485 mm
Boom
MB
Max. Reach horizontal
5.2 m
Dredging depth
4.4 m
Model series
SV
Engine manuf.
Yanmar
Engine type
4TNV98T
Engine power
54.7 kW
Displacement
3.318 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV 100 FAQ

When was the Yanmar SV 100 manufactured?

The Yanmar SV 100 was manufactured from 2006 to 2010.

How much does the Yanmar SV 100 weigh?

The Yanmar SV 100 weighs 9.25 tons.

What are the transport dimensions of the Yanmar SV 100 crawler excavator?

The Yanmar SV 100 has a transport length of 6.37 meters, a transport width of 2.32 meters, and a transport height of 2.83 meters.

What are the undercarriage specifications of the Yanmar SV 100?

The Yanmar SV 100 has a standard undercarriage with a track width of 485 mm.

What are the excavation performance specifications of the Yanmar SV 100?

The Yanmar SV 100 has a dredging depth of 4.4 meters, a maximum horizontal reach of 5.2 meters, and is equipped with a monobloc boom.

What is the bucket capacity of the Yanmar SV 100 crawler excavator?

The bucket capacity of the Yanmar SV 100 is 0.3 cubic meters.

How much is a Yanmar SV 100 Crawler excavator (2006u20132010) worth?

The residual value of the Yanmar SV 100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Yanmar SV 100 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Compare Yanmar SV 100 with similar Crawler Excavators

Yanmar SV 100

Yanmar SV 100

Weight:
9.25 t
Transport length:
6.37 m
Transport width:
2.32 m
Transport height:
2.83 m
Caterpillar 308E 2 CR

Caterpillar 308E 2 CR

Weight:
8.4 t
Transport length:
6.38 m
Transport width:
2.32 m
Transport height:
2.55 m
Bobcat 442

Bobcat 442

Weight:
7.5 t
Transport length:
6.03 m
Transport width:
2.33 m
Transport height:
2.72 m
Komatsu PC95 -1

Komatsu PC95 -1

Weight:
8.85 t
Transport length:
6.2 m
Transport width:
2.2 m
Transport height:
2.7 m
