SV100-7-2PB Yanmar excavator specs & Dimensions (2024 - 2026)

Weight: 10.36t – Transport length: 7.23m – Transport width: 2.32m – Transport height: 2.84m – Track width: 485mm – Max. Reach hori…

Weight: 10.36t – Transport length: 7.23m – Transport width: 2.32m – Transport height: 2.84m – Track width: 485mm – Max. Reach horizontal: 7.46m

Check out detailed specifications, information and technical data for Yanmar SV100-7-2PB excavator manufactured between 2024 - 2026. Get more in-depth insight with Yanmar SV100-7-2PB digger specifications. See information, like: Weight: 10.36t – Transport length: 7.23m – Transport width: 2.32m – Transport height: 2.84m – Track width: 485mm – Max. Reach horizontal: 7.46m and more.

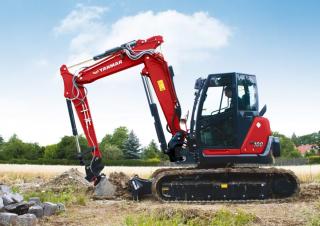

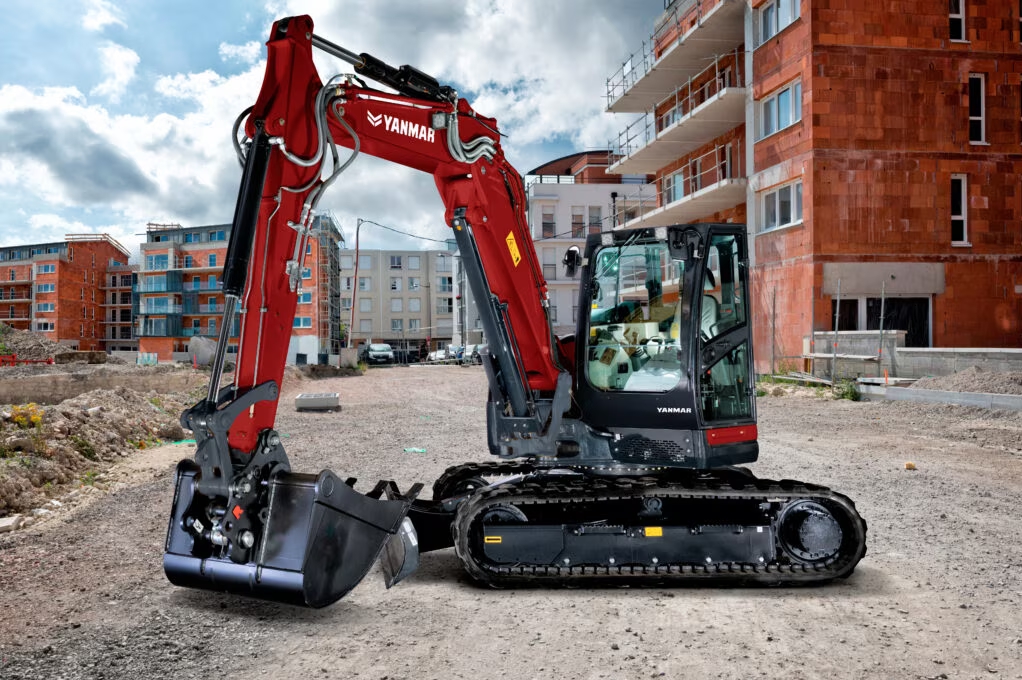

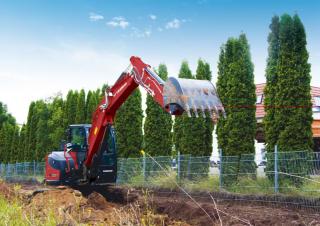

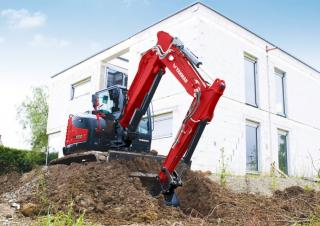

Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB
Crawler Excavators Yanmar SV100-7-2PB

Technical specs - SV100-7-2PB Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.36 t
Transport length
7.23 m
Transport width
2.32 m
Transport height
2.84 m
Track width
485 mm
Max. Reach horizontal
7.46 m
Dredging depth
4.58 m
Tear-out force
68.5 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
4TNV98CT-VBV
Engine power
51.7 kW
Displacement
3.318 l
Revolutions at max torque
2100 rpm
Max. torque
283/1365 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV100-7-2PB FAQ

When was the Yanmar SV100-2PB manufactured?

The Yanmar SV100-2PB was first produced in 2024.

How much does the Yanmar SV100-2PB weigh?

The Yanmar SV100-2PB weighs 10.36 tons.

What are the transport dimensions of the Yanmar SV100-2PB crawler excavator?

The Yanmar SV100-2PB has a transport length of 7.23 meters, a transport width of 2.32 meters, and a transport height of 2.84 meters.

What is the track width of the Yanmar SV100-2PB's undercarriage?

The Yanmar SV100-2PB has a track width of 485 mm on its undercarriage.

What are the excavation performance specifications of the Yanmar SV100-2PB?

The Yanmar SV100-2PB has a dredging depth of 4.58 meters and a maximum horizontal reach of 7.46 meters.

What is the tear-out force of the Yanmar SV100-2PB?

The Yanmar SV100-2PB has a tear-out force of 68.5 kN.

How much is a Yanmar SV100-2PB Crawler excavator (2024u20132025) worth?

The residual value of the Yanmar SV100-2PB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
