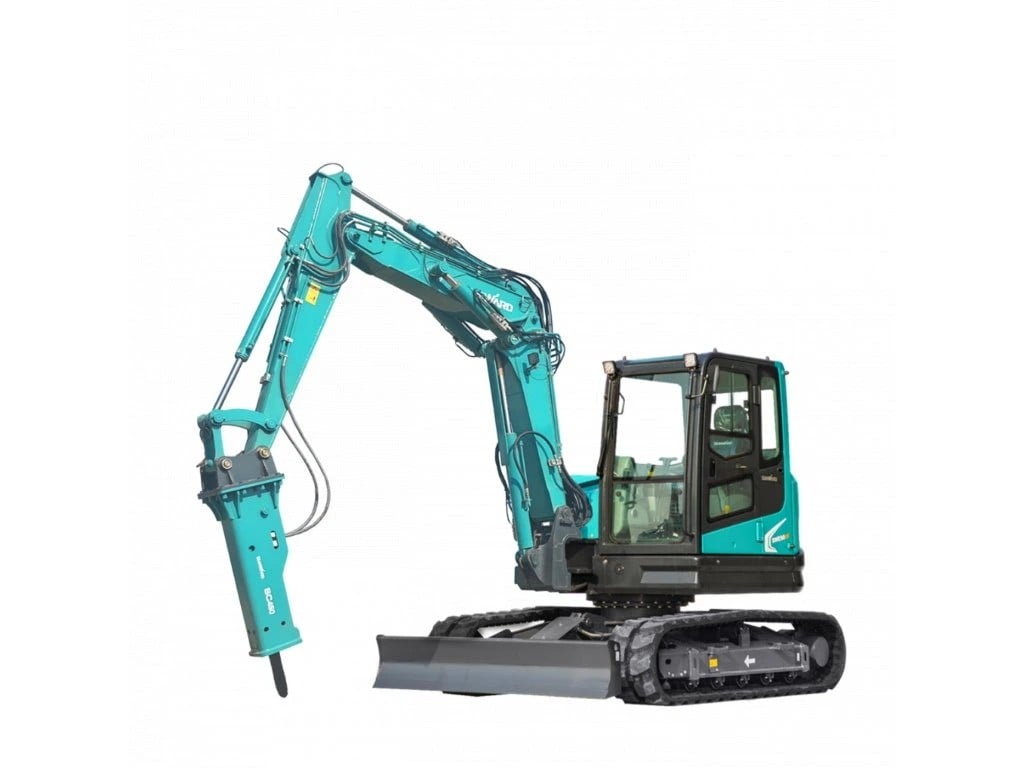

SWE 90 Sunward excavator specs & Dimensions (2006 - 2020)

Sunward SWE 90 is a crawler excavator manufactured from 2006 to 2020, with a weight of 8.43 tons. It has a transport length of 5.9…

Sunward SWE 90 is a crawler excavator manufactured from 2006 to 2020, with a weight of 8.43 tons. It has a transport length of 5.936 meters, a transport width of 2.32 meters, and a transport height of 2.87 meters. The excavator is equipped with air conditioning and track adjustment.

Crawler Excavators Sunward SWE 90

Technical specs - SWE 90 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.43 t
Transport length
5.936 m
Transport width
2.32 m
Transport height
2.87 m
Bucket capacity
0.28 m³
Undercarriage
SL
Boom
MB
Max. Reach horizontal
6.688 m
Dredging depth
4.12 m
Tear-out force
47.7 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
42.9 kW
Displacement
3.32 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., track width, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE 90 FAQ

When was the Sunward SWE 90 manufactured?

The Sunward SWE 90 was manufactured from 2006 to 2020.

How much does the Sunward SWE 90 weigh?

The Sunward SWE 90 weighs 8.43 tons.

What are the transport dimensions of the Sunward SWE 90 crawler excavator?

The Sunward SWE 90 crawler excavator has a transport length of 5.94 meters, a transport width of 2.32 meters, and a transport height of 2.87 meters.

What type of undercarriage does the Sunward SWE 90 have?

The Sunward SWE 90 has a standard undercarriage.

What are the excavation performance specifications of the Sunward SWE 90?

The Sunward SWE 90 has a dredging depth of 4.12 meters, a maximum horizontal reach of 6.688 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sunward SWE 90?

The Sunward SWE 90 has a tear-out force of 47.7 kN.

What is the bucket capacity of the Sunward SWE 90?

The Sunward SWE 90 has a bucket capacity of 0.28 cubic meters.
