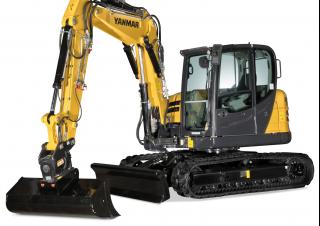

SV 85 MB Yanmar excavator specs & Dimensions (2016 - 2020)

Yanmar SV 85 MB is a Crawler Excavator manufactured from 2016 to 2020, with a weight of 8.2 tons. It features a track width of 450…

Yanmar SV 85 MB is a Crawler Excavator manufactured from 2016 to 2020, with a weight of 8.2 tons. It features a track width of 450 mm, a transport length of 5.96 meters, a transport width of 2.33 meters, and a transport height of 2.66 meters. The excavator has a tear-out force of 53.2 kN, a dredging depth of 4.52 meters, and a maximum horizontal reach of 2.79 meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, an overload alert, a hydraulic quick hitch, and a mechanical quick hitch.

Crawler Excavators Yanmar SV 85 MB

Visit Yanmar live at

Technical specs - SV 85 MB Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.2 t
Transport length
5.96 m
Transport width
2.33 m
Transport height
2.66 m
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
2.79 m
Dredging depth
4.52 m
Tear-out force
53.2 kN
Model series
SV
Engine manuf.
Deutz
Engine type
TCD2.9 L4
Engine power
55.4 kW
Revolutions at max torque
2600 rpm
Max. torque
300/1600 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Yanmar SV 85 MB FAQ

When was the Yanmar SV 85 MB manufactured?

The Yanmar SV 85 MB was manufactured from 2016 to 2020.

How much does the Yanmar SV 85 MB weigh?

The Yanmar SV 85 MB weighs 8.2 tons.

What are the transport dimensions of the Yanmar SV 85 MB crawler excavator?

The Yanmar SV 85 MB has a transport length of 5.96 meters, a transport width of 2.33 meters, and a transport height of 2.66 meters.

What are the undercarriage specifications of the Yanmar SV 85 MB?

The Yanmar SV 85 MB has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Yanmar SV 85 MB?

The Yanmar SV 85 MB has a dredging depth of 4.52 meters, a maximum horizontal reach of 2.79 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Yanmar SV 85 MB?

The Yanmar SV 85 MB has a tear-out force of 53.2 kN.

How much is a Yanmar SV 85 MB Crawler excavator (2016u20132020) worth?

The residual value of the Yanmar SV 85 MB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
