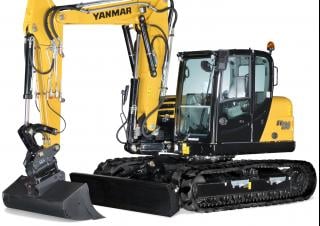

SV 120 2PB Yanmar excavator specs & Dimensions (2016 - 2024)

Yanmar SV 120 2PB is a Crawler Excavator manufactured since 2016. It has a weight of 11.3 tons and a track width of 500 mm. The tr…

Yanmar SV 120 2PB is a Crawler Excavator manufactured since 2016. It has a weight of 11.3 tons and a track width of 500 mm. The transport dimensions are 6.82 meters in length, 2.5 meters in width, and 2.75 meters in height. The excavator features a tear-out force of 81.5 kN, a dredging depth of 4.55 meters, and a maximum horizontal reach of 3.91 meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, an overload alert, and both hydraulic and mechanical quick hitches.

Crawler Excavators Yanmar SV 120 2PB

Technical specs - SV 120 2PB Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.3 t
Transport length
6.82 m
Transport width
2.5 m
Transport height
2.75 m
Undercarriage
SL
Track width
500 mm
Boom
VA
Max. Reach horizontal
3.91 m
Dredging depth
4.55 m
Tear-out force
81.5 kN
Model series
SV
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
85 kW
Displacement
3.6 l
Revolutions at max torque
2000 rpm
Max. torque
400/1600 Nm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Yanmar SV 120 2PB FAQ

When was the Yanmar SV 120 2PB manufactured?

The Yanmar SV 120 2PB was manufactured from 2016 to 2024.

How much does the Yanmar SV 120 2PB weigh?

The Yanmar SV 120 2PB weighs 11.3 tons.

What are the transport dimensions of the Yanmar SV 120 2PB?

The Yanmar SV 120 2PB has a transport length of 6.82 meters, a transport width of 2.5 meters, and a transport height of 2.75 meters.

What are the undercarriage specifications of the Yanmar SV 120 2PB?

The Yanmar SV 120 2PB has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Yanmar SV 120 2PB?

The Yanmar SV 120 2PB has a dredging depth of 4.55 meters, a maximum horizontal reach of 3.91 meters, and features an adjustable boom.

What are the power ratings of the Yanmar SV 120 2PB?

The source data does not provide power rating information for the Yanmar SV 120 2PB.

How much is a Yanmar SV 120 2PB Crawler excavator (2016u20132024) worth?

The residual value of the Yanmar SV 120 2PB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
