SV 100-2 PBCR Yanmar excavator specs & Dimensions (2015 - 2024)

Yanmar SV 100-2 PBCR is a crawler excavator manufactured since 2015, with a weight of 10.36 t and a track width of 485 mm. It has …

Yanmar SV 100-2 PBCR is a crawler excavator manufactured since 2015, with a weight of 10.36 t and a track width of 485 mm. It has a transport length of 6.73 m, a transport width of 2.32 m, and a transport height of 2.84 m. The excavator features a tear-out force of 69 kN, a dredging depth of 4.33 m, and a maximum horizontal reach of 6.21 m. Special equipment includes air conditioning, a blade, a diesel particulate filter, an overload alert, a hydraulic quick hitch, and a mechanical quick hitch.

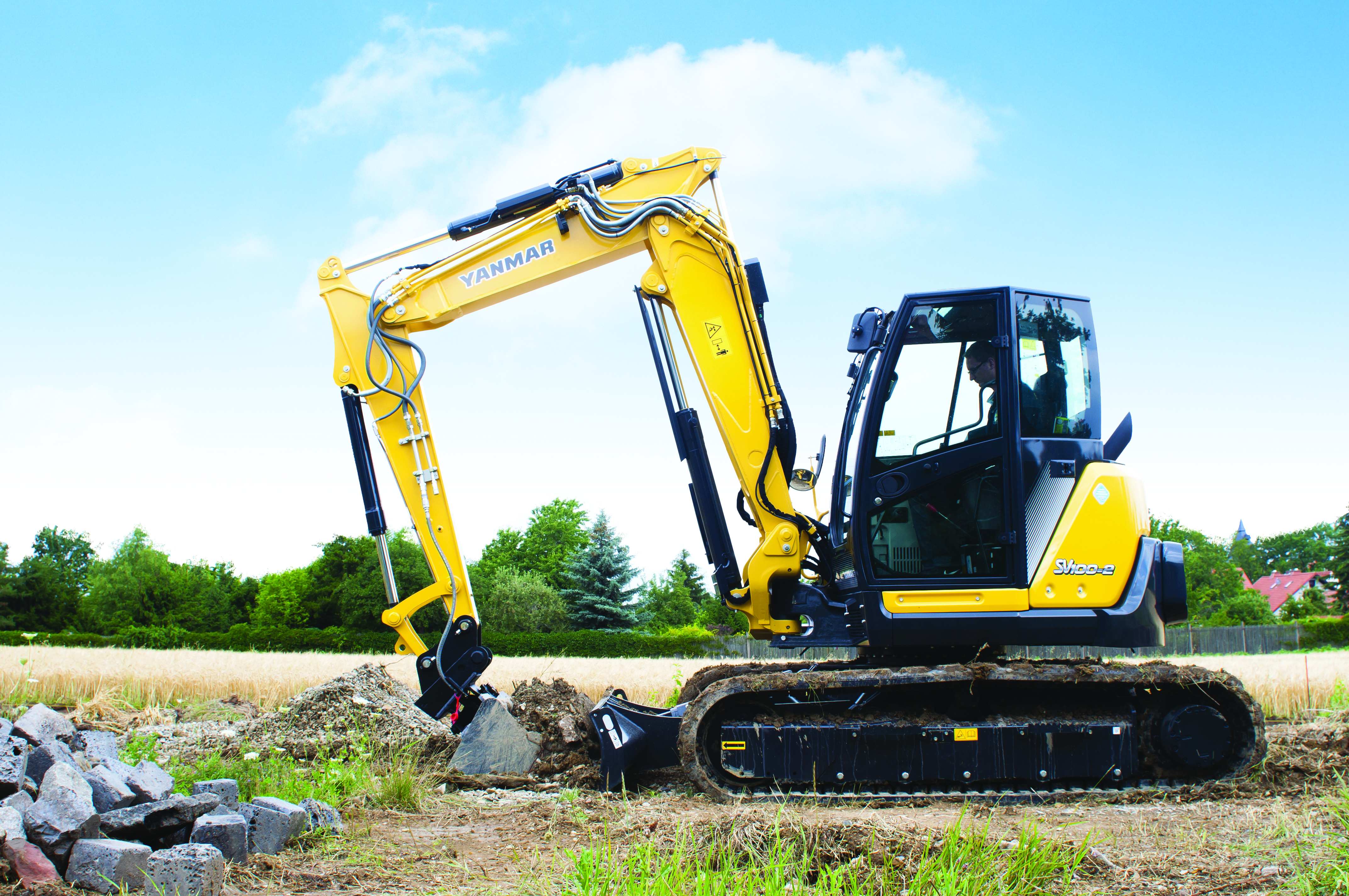

Crawler Excavators Yanmar SV 100-2 PBCR
Crawler Excavators Yanmar SV 100-2 PBCR
Crawler Excavators Yanmar SV 100-2 PBCR
Crawler Excavators Yanmar SV 100-2 PBCR
Crawler Excavators Yanmar SV 100-2 PBCR
Crawler Excavators Yanmar SV 100-2 PBCR

Technical specs - SV 100-2 PBCR Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.36 t
Transport length
6.73 m
Transport width
2.32 m
Transport height
2.84 m
Undercarriage
SL
Track width
485 mm
Boom
VA
Max. Reach horizontal
6.21 m
Dredging depth
4.33 m
Tear-out force
69 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
4TNV98CT-VBV
Engine power
51.7 kW
Displacement
3.318 l
Max. torque
283 Nm
Emission level
Phase IIIB and Tier 4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Yanmar SV 100-2 PBCR FAQ

When was the Yanmar SV 100-2 PBCR manufactured?

The Yanmar SV 100-2 PBCR was manufactured from 2015 to 2024.

How much does the Yanmar SV 100-2 PBCR weigh?

The Yanmar SV 100-2 PBCR weighs 10.36 tons.

What are the transport dimensions of the Yanmar SV 100-2 PBCR?

The Yanmar SV 100-2 PBCR has a transport length of 6.73 meters, a transport width of 2.32 meters, and a transport height of 2.84 meters.

What are the undercarriage specifications of the Yanmar SV 100-2 PBCR?

The Yanmar SV 100-2 PBCR has a standard undercarriage with a track width of 485 mm.

What are the excavation performance specifications of the Yanmar SV 100-2 PBCR?

The Yanmar SV 100-2 PBCR has a dredging depth of 4.33 meters, a maximum horizontal reach of 6.21 meters, and features an adjustable boom.

What is the tear-out force of the Yanmar SV 100-2 PBCR?

The Yanmar SV 100-2 PBCR has a tear-out force of 69 kN.

How much is a Yanmar SV 100-2 PBCR Crawler excavator (2015u20132024) worth?

The residual value of the Yanmar SV 100-2 PBCR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
