SV 100-2 CR Yanmar excavator specs & Dimensions (2010 - 2024)

Yanmar SV 100-2 CR is a crawler excavator manufactured since 2010, with a weight of 9.62 tons. It has a track width of 485 mm, a t…

Yanmar SV 100-2 CR is a crawler excavator manufactured since 2010, with a weight of 9.62 tons. It has a track width of 485 mm, a transport length of 6.39 meters, a transport width of 2.32 meters, and a transport height of 2.81 meters. The machine features a tear-out force of 68.5 kN and is equipped with air conditioning, a blade, a diesel particulate filter, an overload alert, a hydraulic quick hitch, and a mechanical quick hitch.

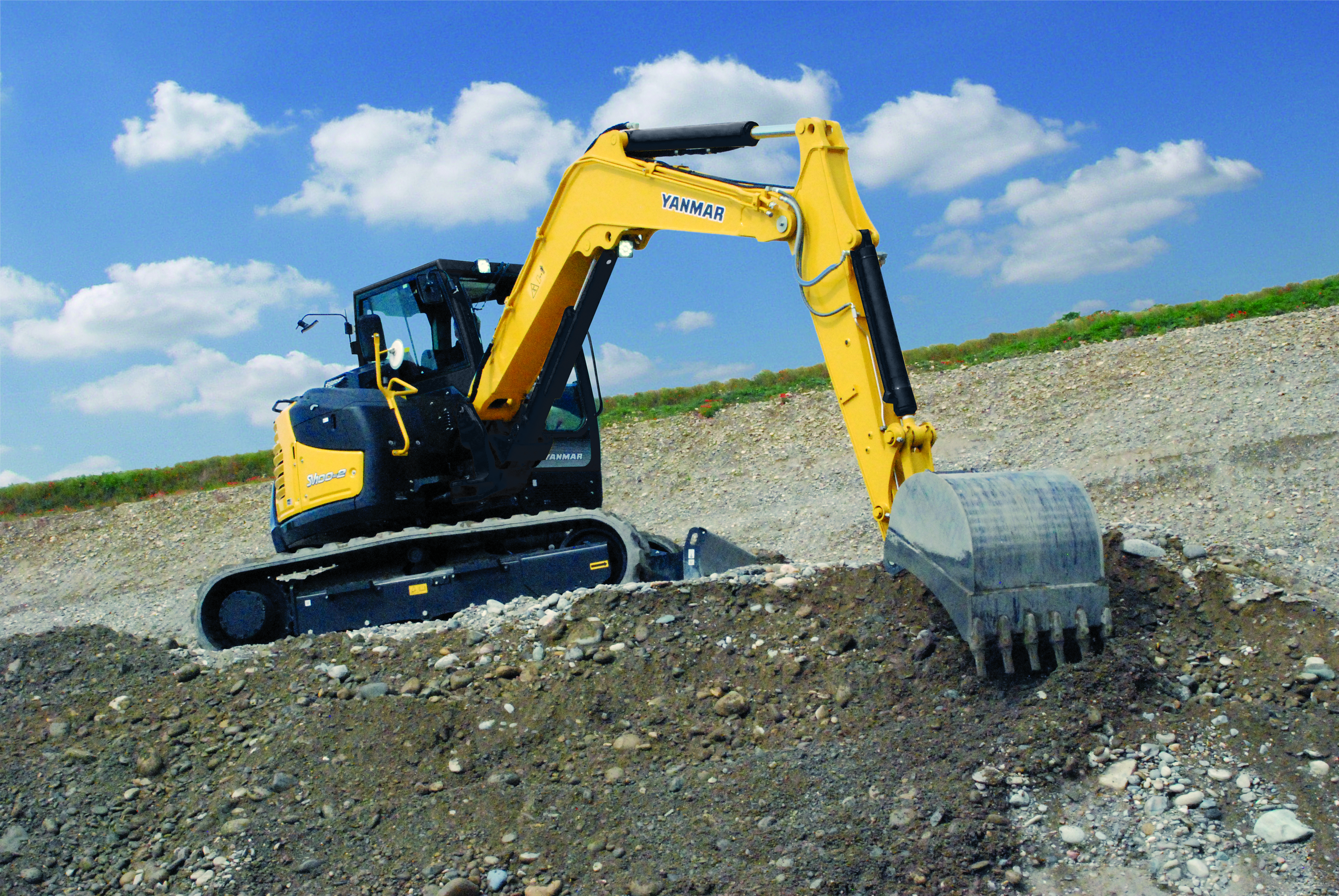

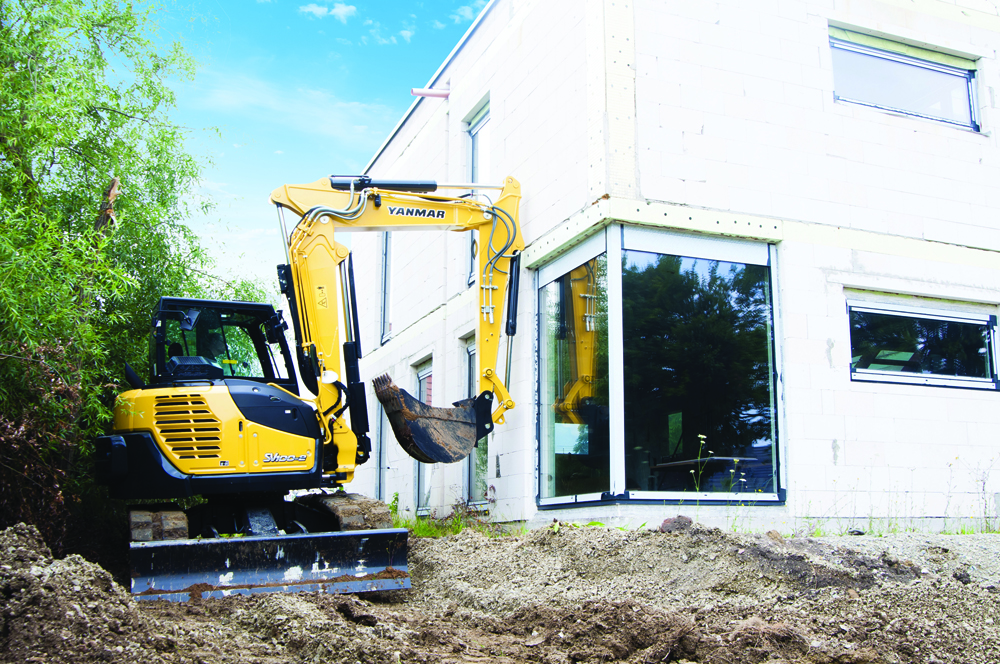

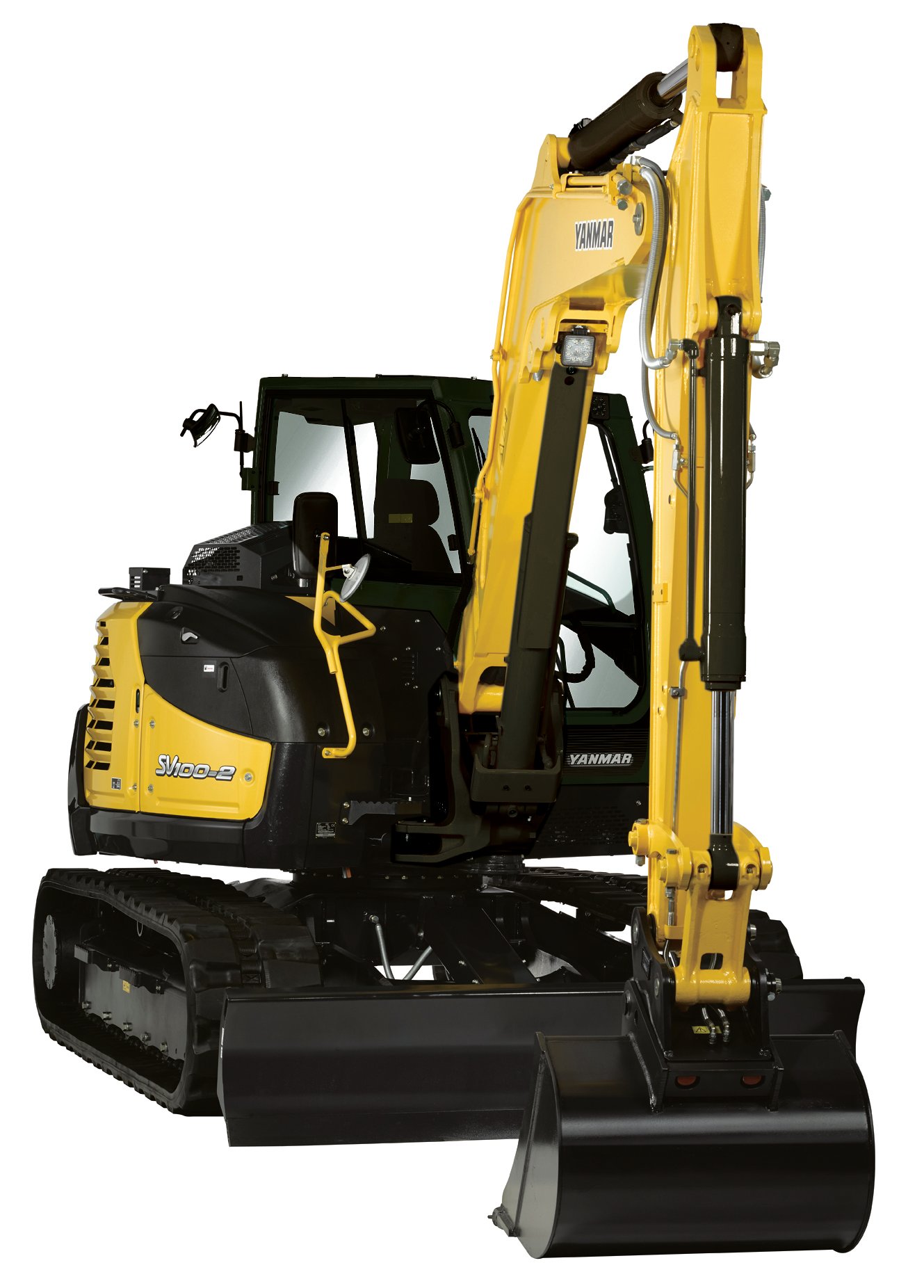

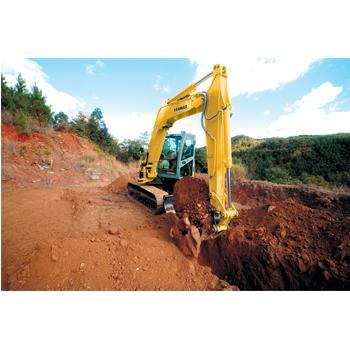

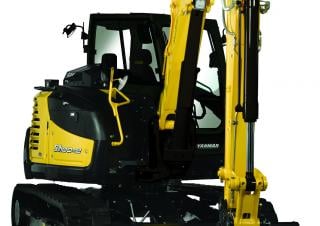

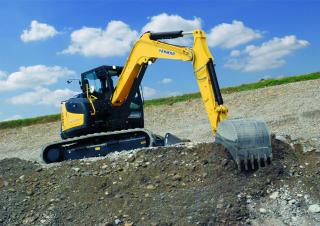

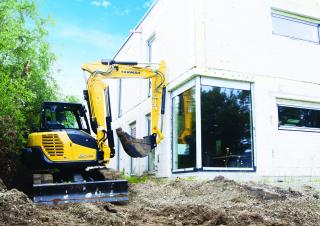

Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR
Crawler Excavators Yanmar SV 100-2 CR

Technical specs - SV 100-2 CR Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.62 t
Transport length
6.39 m
Transport width
2.32 m
Transport height
2.81 m
Undercarriage
SL
Track width
485 mm
Boom
MB
Max. Reach horizontal
5.14 m
Dredging depth
4.29 m
Tear-out force
68.5 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
4TNV98CT-VBV
Engine power
51.7 kW
Displacement
3.318 l
Max. torque
283 Nm
Emission level
Phase IIIB and Tier 4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Yanmar SV 100-2 CR FAQ

When was the Yanmar SV 100-2 CR manufactured?

The Yanmar SV 100-2 CR was manufactured from 2010 to 2024.

How much does the Yanmar SV 100-2 CR weigh?

The Yanmar SV 100-2 CR weighs 9.62 tons.

What are the transport dimensions of the Yanmar SV 100-2 CR crawler excavator?

The Yanmar SV 100-2 CR has a transport length of 6.39 meters, a transport width of 2.32 meters, and a transport height of 2.81 meters.

What are the undercarriage specifications of the Yanmar SV 100-2 CR?

The Yanmar SV 100-2 CR has a standard undercarriage with a track width of 485 mm.

What are the excavation performance specifications of the Yanmar SV 100-2 CR?

The Yanmar SV 100-2 CR has a dredging depth of 4.29 meters, a maximum horizontal reach of 5.14 meters, and is equipped with a monobloc boom.

What is the power rating of the Yanmar SV 100-2 CR?

The power rating of the Yanmar SV 100-2 CR is not provided in the available data.

How much is a Yanmar SV 100-2 CR Crawler excavator (2010u20132024) worth?

The residual value of the Yanmar SV 100-2 CR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
