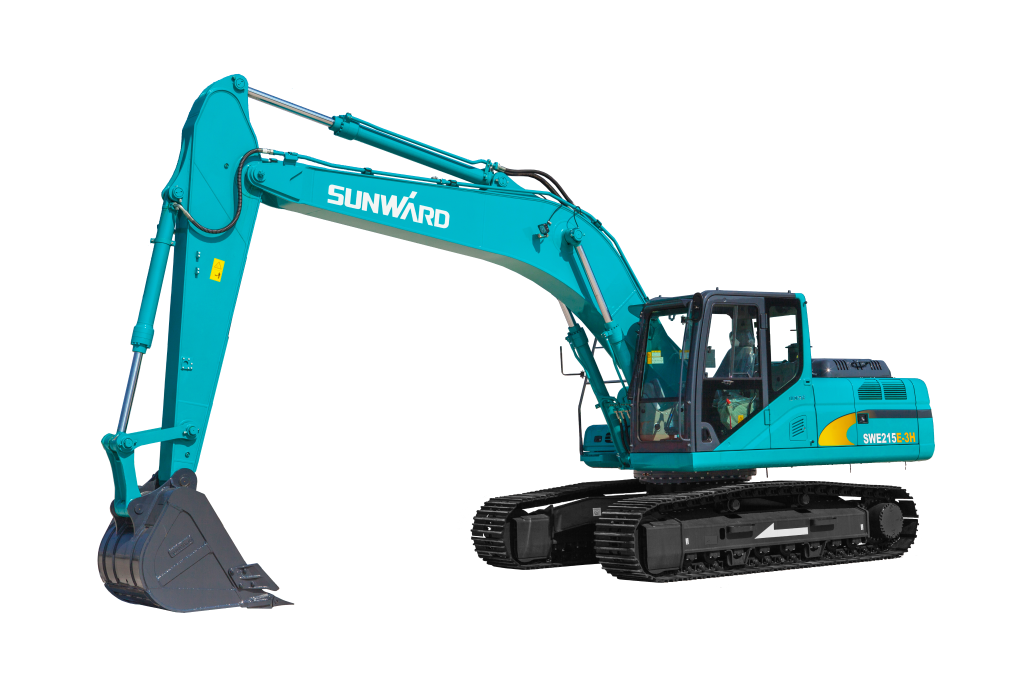

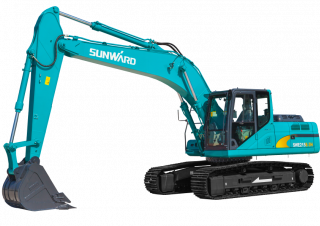

SWE215E-3H Sunward excavator specs & Dimensions (2020 - 2025)

Sunward SWE215E-3H is a crawler excavator manufactured since 2020, with a weight of 22.3 tons. It features a track width of 600 mm…

Sunward SWE215E-3H is a crawler excavator manufactured since 2020, with a weight of 22.3 tons. It features a track width of 600 mm, a transport length of 9.57 meters, a transport width of 2.99 meters, and a transport height of 2.95 meters. The machine has a tear-out force of 155 kN, a dredging depth of 6.75 meters, and a maximum horizontal reach of 9.78 meters. The bucket width is 1.12 meters, and the bucket capacity is 1 cubic meter.

Crawler Excavators Sunward SWE215E-3H

Technical specs - SWE215E-3H Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.3 t
Transport length
9.57 m
Transport width
2.99 m
Transport height
2.95 m
Bucket capacity
1 m³
Track width
600 mm
Max. Reach horizontal
9.78 m
Dredging depth
6.75 m
Tear-out force
155 kN
Bucket width
1.12 m
Model series
SWE
Engine manuf.
Cummins
Engine type
QSB7
Engine power
124 kW
Displacement
6.7 l
No. of cylinders
6
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sunward SWE215E-3H FAQ

When was the Sunward SWE215E-3H manufactured?

The Sunward SWE215E-3H was first produced in 2020.

How much does the Sunward SWE215E-3H weigh?

The Sunward SWE215E-3H weighs 22.3 tons.

What are the transport dimensions of the Sunward SWE215E-3H crawler excavator?

The Sunward SWE215E-3H has a transport length of 9.57 meters, a transport width of 2.99 meters, and a transport height of 2.95 meters.

What is the track width of the Sunward SWE215E-3H's undercarriage?

The Sunward SWE215E-3H has a track width of 600 mm.

What are the excavation specifications of the Sunward SWE215E-3H?

The Sunward SWE215E-3H has a dredging depth of 6.75 meters and a maximum horizontal reach of 9.78 meters.

What is the tear-out force of the Sunward SWE215E-3H?

The Sunward SWE215E-3H has a tear-out force of 155 kN.

What are the specifications of the primary work tool on the Sunward SWE215E-3H?

The primary work tool of the Sunward SWE215E-3H has a bucket capacity of 1 cubic meter and a bucket width of 1.12 meters.
