SE245LCW Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 26.5t – Transport length: 9.885m – Transport width: 3.235m – Transport height: 3.18m – Bucket capacity: 1.3m³ – Max. Reach…

Weight: 26.5t – Transport length: 9.885m – Transport width: 3.235m – Transport height: 3.18m – Bucket capacity: 1.3m³ – Max. Reach horizontal: 10.198m

Check out detailed specifications, information and technical data for Shantui SE245LCW excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE245LCW digger specifications. See information, like: Weight: 26.5t – Transport length: 9.885m – Transport width: 3.235m – Transport height: 3.18m – Bucket capacity: 1.3m³ – Max. Reach horizontal: 10.198m and more.

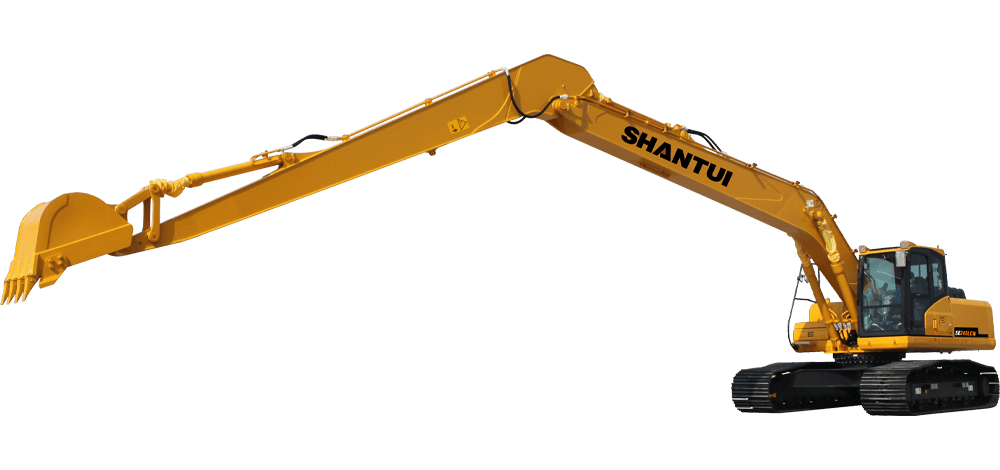

Crawler Excavators Shantui SE245LCW

Technical specs - SE245LCW Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.5 t
Transport length
9.885 m
Transport width
3.235 m
Transport height
3.18 m
Bucket capacity
1.3 m³
Max. Reach horizontal
10.198 m
Dredging depth
6.864 m
Tear-out force
160 kN
Engine manuf.
N/A
Engine type
N/a
Engine power
190 kW
Emission level
Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, track width, boom, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Shantui SE245LCW FAQ

When was the Shantui SE245LCW manufactured?

The Shantui SE245LCW was first produced in 2023.

How much does the Shantui SE245LCW weigh?

The Shantui SE245LCW weighs 24.8 tons.

What are the transport dimensions of the Shantui SE245LCW crawler excavator?

The Shantui SE245LCW has a transport length of 9.89 meters, a transport width of 3.18 meters, and a transport height of 3.24 meters.

What are the excavation performance specifications of the Shantui SE245LCW?

The Shantui SE245LCW has a dredging depth of 6.864 meters and a maximum horizontal reach of 10.18 meters.

What power ratings are available for the Shantui SE245LCW?

The source data does not provide any power rating information for the Shantui SE245LCW.

What is the bucket capacity of the Shantui SE245LCW excavator?

The Shantui SE245LCW excavator has a bucket capacity of 1.2 cubic meters.
