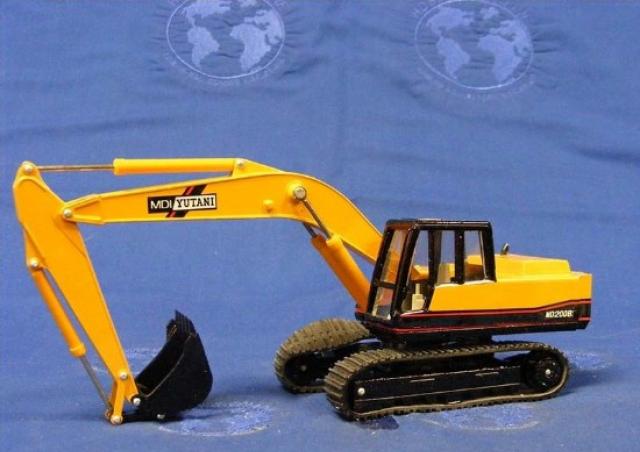

MD200BLC MDI Yutani excavator specs & Dimensions (1989 - 2000)

MDI Yutani MD200BLC is a crawler excavator manufactured from 1989 to 2000, with a weight of 19 tons. It features a track width of …

MDI Yutani MD200BLC is a crawler excavator manufactured from 1989 to 2000, with a weight of 19 tons. It features a track width of 800 mm, a transport length of 9 meters, a transport width of 3 meters, and a transport height of 2 meters. The machine has a tear-out force of 124 kN and a maximum bucket capacity of 1 cubic meter.

Crawler Excavators MDI Yutani MD200BLC

Technical specs - MD200BLC MDI Yutani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.68 t
Transport length
9.37 m
Transport width
3.19 m
Transport height
2.91 m
Bucket capacity min.
0.36 m³
Bucket capacity max.
1 m³
Track width
800 mm
Boom
MB
Tear-out force
124.54 kN
Engine manuf.
Mitsubishi
Engine type
6D31-T
Engine power
92 kW
Displacement
4948 l

More technical details, like: bucket capacity, undercarriage, max. reach horizontal, dredging depth, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

MDI Yutani MD200BLC FAQ

When was the MDI Yutani MD200BLC manufactured?

The MDI Yutani MD200BLC was manufactured from 1989 to 2000.

How much does the MDI Yutani MD200BLC weigh?

The MDI Yutani MD200BLC weighs 19.68 tons.

What are the transport dimensions of the MDI Yutani MD200BLC?

The MDI Yutani MD200BLC has a transport length of 9.37 meters, a transport width of 3.19 meters, and a transport height of 2.91 meters.

What is the track width of the MDI Yutani MD200BLC's undercarriage?

The MDI Yutani MD200BLC has a track width of 800 mm.

What type of boom does the MDI Yutani MD200BLC have?

The MDI Yutani MD200BLC has a Monobloc boom.

What power ratings are available for the MDI Yutani MD200BLC?

There are no power ratings available for the MDI Yutani MD200BLC in the provided data.

What is the maximum bucket capacity of the MDI Yutani MD200BLC?

The MDI Yutani MD200BLC has a maximum bucket capacity of 1 cubic meter.

How much is a MDI Yutani MD200BLC Crawler excavator (1989u20132000) worth?

The residual value of the MDI Yutani MD200BLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
