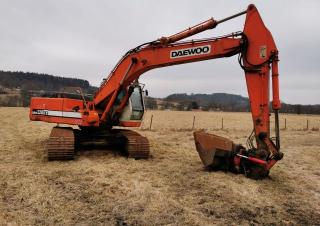

SOLAR 220 LC-III Daewoo excavator specs & Dimensions (1996 - 2026)

Daewoo SOLAR 220 LC-III is a crawler excavator manufactured since 1996, with a weight of 20 tons. It features a track width of 600…

Daewoo SOLAR 220 LC-III is a crawler excavator manufactured since 1996, with a weight of 20 tons. It features a track width of 600 mm, a transport length of 9 meters, a transport width of 2 meters, and a transport height of 2 meters. The machine has a tear-out force of 125 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 10 meters. The bucket capacity is up to 1 cubic meter. Special equipment includes air conditioning, cabin adjustment, a diesel particulate filter, and track adjustment.

Crawler Excavators Daewoo SOLAR 220 LC-III

Technical specs - SOLAR 220 LC-III Daewoo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.1 t
Transport length
9.63 m
Transport width
2.98 m
Transport height
2.99 m
Bucket capacity min.
0.51 m³
Bucket capacity max.
1.2 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.2 m
Dredging depth
6.6 m
Tear-out force
125 kN
Engine manuf.
Daewoo
Engine type
D1146
Engine power
100 kW
Displacement
8071 l
Revolutions at max torque
1600 rpm
Max. torque
510 Nm
No. of cylinders
6
Cylinder bore x stroke
111 x 139 mm

More technical details, like: bucket capacity, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Daewoo SOLAR 220 LC-III FAQ

When was the Daewoo SOLAR 220 LC-III manufactured?

The Daewoo SOLAR 220 LC-III was first produced in 1996.

How much does the Daewoo SOLAR 220 LC-III weigh?

The Daewoo SOLAR 220 LC-III weighs 20.1 tons.

What are the transport dimensions of the Daewoo SOLAR 220 LC-III?

The Daewoo SOLAR 220 LC-III has a transport length of 9.63 meters, a transport width of 2.98 meters, and a transport height of 2.99 meters.

What are the undercarriage specifications of the Daewoo SOLAR 220 LC-III?

The Daewoo SOLAR 220 LC-III has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Daewoo SOLAR 220 LC-III?

The Daewoo SOLAR 220 LC-III has a dredging depth of 6.6 meters, a maximum horizontal reach of 10.2 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Daewoo SOLAR 220 LC-III, and is there any power rating information available?

The Daewoo SOLAR 220 LC-III has a tear-out force of 125 kN. No power rating information is provided in the available data.

What is the maximum bucket capacity of the Daewoo SOLAR 220 LC-III?

The Daewoo SOLAR 220 LC-III has a maximum bucket capacity of 1.2 cubic meters.

How much is a Daewoo SOLAR 220 LC-III Crawler excavator (1996u20132025) worth?

The residual value of the Daewoo SOLAR 220 LC-III depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
