924FDM Liugong excavator specs & Dimensions (2022 - 2026)

Weight: 24.6t – Transport length: 9.62m – Transport width: 3.09m – Transport height: 3m – Bucket capacity min.: 0.9m³ – Bucket cap…

Weight: 24.6t – Transport length: 9.62m – Transport width: 3.09m – Transport height: 3m – Bucket capacity min.: 0.9m³ – Bucket capacity max.: 1.4m³

Check out detailed specifications, information and technical data for Liugong 924FDM excavator manufactured between 2022 - 2026. Get more in-depth insight with Liugong 924FDM digger specifications. See information, like: Weight: 24.6t – Transport length: 9.62m – Transport width: 3.09m – Transport height: 3m – Bucket capacity min.: 0.9m³ – Bucket capacity max.: 1.4m³ and more.

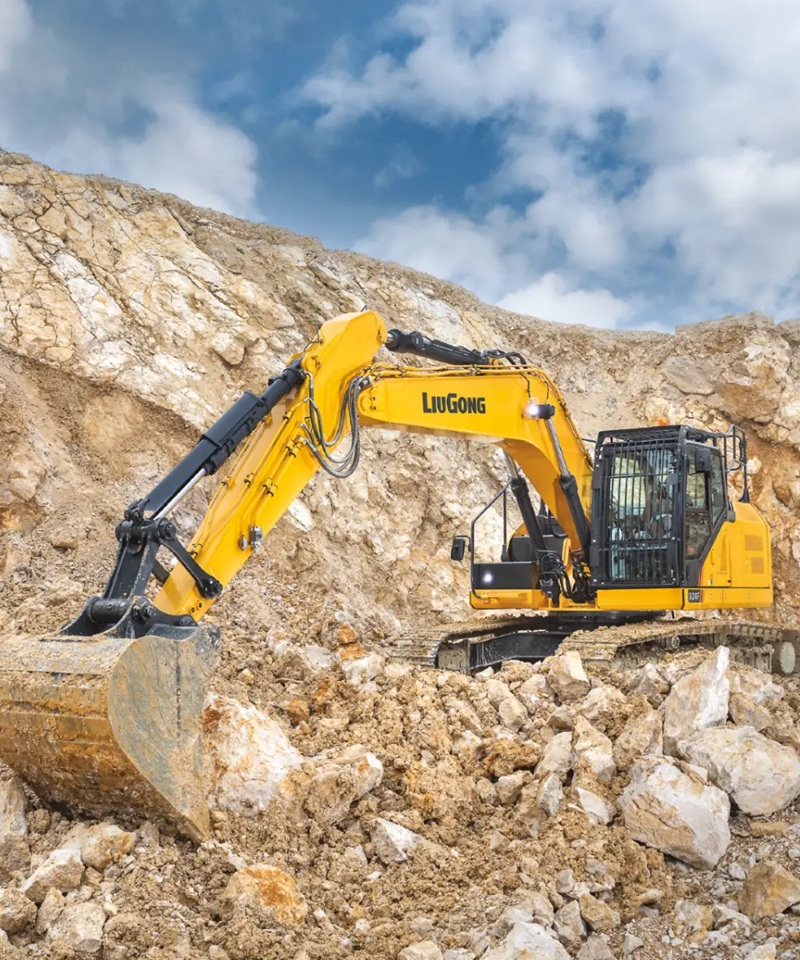

Crawler Excavators Liugong 924FDM

Visit Liugong live at

Technical specs - 924FDM Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.6 t
Transport length
9.62 m
Transport width
3.09 m
Transport height
3 m
Bucket capacity min.
0.9 m³
Bucket capacity max.
1.4 m³
Track width
700 mm
Max. Reach horizontal
9.72 m
Dredging depth
6.7 m
Model series
F
Engine manuf.
Cummins
Engine type
B6.7
Engine power
116 kW
Displacement
6.7 l
Revolutions at max torque
1300 rpm
Max. torque
746 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
Stage V/Tier 4f

More technical details, like: bucket capacity, undercarriage, boom, tear-out force, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
