922D Liugong excavator specs & Dimensions (2010 - 2018)

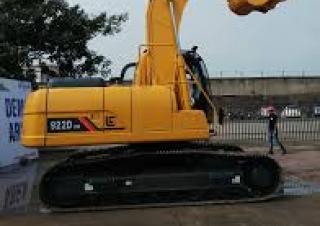

Liugong 922D is a crawler excavator manufactured from 2010 to 2018. It has a weight of 22 tons and a track width of 600 mm. The tr…

Liugong 922D is a crawler excavator manufactured from 2010 to 2018. It has a weight of 22 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 3 meters in height. The machine features a tear-out force of 103 kN, a dredging depth of 6.615 meters, and a maximum horizontal reach of 9.705 meters. The maximum bucket capacity is 1 cubic meter.

Crawler Excavators Liugong 922D

Visit Liugong live at

Technical specs - 922D Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
9.69 m
Transport width
2.99 m
Transport height
3.1 m
Bucket capacity min.
0.73 m³
Bucket capacity max.
1.1 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.705 m
Dredging depth
6.615 m
Tear-out force
103 kN
Engine manuf.
Cummins
Engine type
N/A
Engine power
112 kW
Displacement
5.9 l
Revolutions at max torque
1500 rpm
Max. torque
614 Nm
No. of cylinders
6
Emission level
Tier 2/Stage II

More technical details, like: bucket capacity, bucket width, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 922D FAQ

When was the Liugong 922D manufactured?

The Liugong 922D was manufactured from 2010 to 2018.

How much does the Liugong 922D weigh?

The Liugong 922D weighs 22 tons.

What are the transport dimensions of the Liugong 922D crawler excavator?

The Liugong 922D crawler excavator has a transport length of 9.69 meters, a transport width of 2.99 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the Liugong 922D?

The Liugong 922D has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liugong 922D crawler excavator?

The Liugong 922D crawler excavator has a dredging depth of 6.615 meters, a maximum horizontal reach of 9.705 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liugong 922D?

The Liugong 922D has a tear-out force of 103 kN.

What is the maximum bucket capacity of the Liugong 922D?

The Liugong 922D has a maximum bucket capacity of 1.1 cubic meters.

How much is a Liugong 922D Crawler excavator (2010u20132018) worth?

The residual value of the Liugong 922D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
