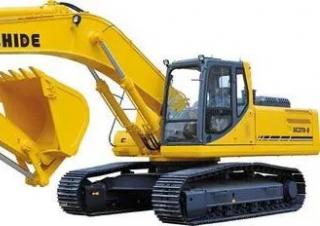

Crawler Excavators Lishide SC270.8

Technical specs - SC270.8 Lishide

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.8 t
Transport length
9.84 m
Transport width
3.19 m
Transport height
3.5 m
Bucket capacity
1.2 m³
Bucket capacity min.
1.2 m³
Track width
600 mm
Max. Reach horizontal
10.17 m
Dredging depth
6.81 m
Engine manuf.
Cummins
Engine type
6BTAA5.9
Engine power
133 kW
Displacement
5.9 l
Revolutions at max torque
2000 rpm
Max. torque
708 Nm
No. of cylinders
6
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Lishide SC270.8 FAQ

When was the Lishide SC270.8 manufactured?

The Lishide SC270.8 was first produced in 2023.

How much does the Lishide SC270.8 weigh?

The Lishide SC270.8 weighs 26.8 tons.

What are the transport dimensions of the Lishide SC270.8 crawler excavator?

The Lishide SC270.8 has transport dimensions of 9.84 meters in length, 3.19 meters in width, and 3.5 meters in height.

What is the track width of the Lishide SC270.8's undercarriage?

The Lishide SC270.8 has a track width of 600 mm.

What is the excavation performance of the Lishide SC270.8?

The Lishide SC270.8 has a dredging depth of 6.81 meters and a maximum horizontal reach of 10.17 meters.

What is the bucket capacity of the Lishide SC270.8 crawler excavator?

The Lishide SC270.8 crawler excavator has a bucket capacity of 1.2 cubic meters.

How much is a Lishide SC270.8 Crawler excavator (2023u20132025) worth?

The residual value of the Lishide SC270.8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
