LS-3400 C II Link-Belt excavator specs & Dimensions (1989 - 2023)

Link-Belt LS-3400 C II is a crawler excavator manufactured since 1989, with a weight of 24 tons. It features a track width of 800 …

Link-Belt LS-3400 C II is a crawler excavator manufactured since 1989, with a weight of 24 tons. It features a track width of 800 mm, a transport length of 9 meters, a transport width of 3 meters, and a transport height of 3 meters. The bucket width is 1.067 meters, and the maximum bucket capacity is 1 cubic meter. Special equipment includes cabin adjustment and track adjustment.

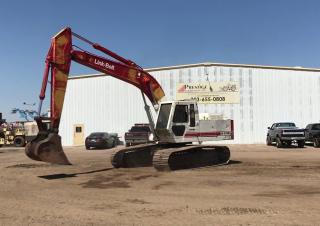

Crawler Excavators Link-Belt LS-3400 C II

Technical specs - LS-3400 C II Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24 t
Transport length
9 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Undercarriage
SL
Track width
800 mm
Boom
MB
Max. Reach horizontal
10.81 m
Dredging depth
7.39 m
Tear-out force
127.49 kN
Bucket width
1.067 m
Engine manuf.
Isuzu
Engine type
6BG1T
Engine power
114 kW
Displacement
6489 l
Revolutions at max torque
1600 rpm
Max. torque
511 Nm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm

More technical details, like: bucket capacity, bucket capacity min., model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt LS-3400 C II FAQ

When was the Link-Belt LS-3400 C II manufactured?

The Link-Belt LS-3400 C II was manufactured from 1989 until 2023.

How much does the Link-Belt LS-3400 C II weigh?

The Link-Belt LS-3400 C II weighs 24 tons.

What are the transport dimensions of the Link-Belt LS-3400 C II crawler excavator?

The Link-Belt LS-3400 C II has a transport length of 9 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt LS-3400 C II?

The Link-Belt LS-3400 C II has a standard undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt LS-3400 C II?

The Link-Belt LS-3400 C II has a dredging depth of 7.39 meters, a maximum horizontal reach of 10.81 meters, and is equipped with a Monobloc boom.

What are the power ratings of the Link-Belt LS-3400 C II?

The source data does not provide power rating information for the Link-Belt LS-3400 C II.

What are the specifications of the primary work tool on the Link-Belt LS-3400 C II?

The primary work tool of the Link-Belt LS-3400 C II has a maximum bucket capacity of 1 cubic meter and a bucket width of 1.067 meters.

How much is a Link-Belt LS-3400 C II Crawler excavator (1989u20132023) worth?

The residual value of the Link-Belt LS-3400 C II depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Link-Belt LS-3400 C II overview

Hydraulic and electronic system

SCM Monitor

The SCM (Service Check Maintenance) monitor advises the operator on all critical machine functions at a glance. Both audio and visual warnings indicate low water, high engine temperature and engine oil pressure. Indicator lights monitor mode selection system, fine control, glow plug, air intake restriction, battery fluid level and free swing brake. Three bar gauges monitor fuel level, water temperature and hydraulic oil temperature.


Computer Aided Power System (CAPS)

The LS-3400 C-Series II CAPS hydraulic system with its variable volume/pressure compensated piston pumps and pilot controls provide smooth operation and maximum horsepower utilization. Fuel consumption is minimized by the digging and fine control mode selection systems and the integral Automatic Pump Destroking (APD) feature. Pump flows are automatically reduced to minimum output when control levers are in the neutral position. These systems save fuel and eliminate wasted engine and hydraulic power plus extend component life. The CAPS system enables the operator to simultaneously operate the swing, travel and attachment for full function control of the machine. This feature plus the automatic high speed arm and boomhoist result in fast cycle times and increased production.


Undercarriage

Single Pedal Travel

A single pedal travel system allows the operator to engage both tracks at the same time using only one pedal. This keeps the machine in line with the ditch and provides safety and ease in loading/unloading the machine for transport.


Upper Structure

Free Swing Control

The standard free swing feature allows the operator to disengage the swing brake, providing precise control and added safety when swinging a load. The swing brake can be engaged to eliminate the upper from coasting when working on a side hill. Additionally, the swing brake automatically applies 4 to 5 seconds after the control lever is returned to neutral.


Cab

Maximum Window Area

The C-Series II cab is designed to provide maximum visibility for the operator with its full view front window and lower right and left hand windows.


Sliding Arm Rests

Exclusive sliding arm rest mounted controllers adjust independently from the seat. This feature assures all size operators, which can translate to all-day maximum production.


Lift-up Arm Rest

Left arm rest lifts up out of the way providing outstanding operator ease in entering or exiting cab. For safety, when arm rest is raised all control functions become inactive.


Equipment

Serviceability

Servicing the LS-3400 is simplified by the use of wide opening doors and a torsion bar assisted engine hood. Standard quick disconnects for pressure checking and central lube banks for attachment pins provide quick routine maintenance.
