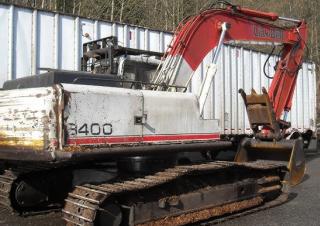

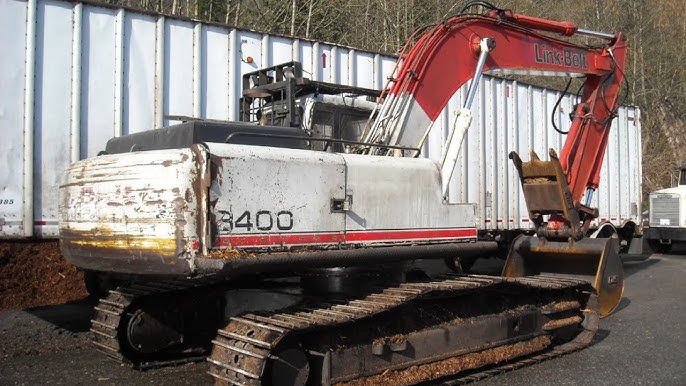

3400 Link-Belt excavator specs & Dimensions (1994 - 1999)

Link-Belt 3400 is a Crawler Excavator manufactured from 1994 to 1999, with a weight of 24.122 tons. It features a track width of 8…

Link-Belt 3400 is a Crawler Excavator manufactured from 1994 to 1999, with a weight of 24.122 tons. It features a track width of 800 mm, a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3 meters. The bucket width is 1.219 meters, and the maximum bucket capacity is 1 cubic meter. Special equipment includes a diesel particulate filter and track adjustment.

Crawler Excavators Link-Belt 3400

Technical specs - 3400 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.12 t
Transport length
10 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
10.83 m
Dredging depth
7.4 m
Tear-out force
151.02 kN
Bucket width
1.219 m
Engine manuf.
Isuzu
Engine type
6BG1T
Engine power
114 kW
Displacement
6494 l
Revolutions at max torque
1700 rpm
Max. torque
526 Nm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm

More technical details, like: bucket capacity, bucket capacity min., model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 3400 FAQ

When was the Link-Belt 3400 manufactured?

The Link-Belt 3400 was manufactured from 1994 to 1999.

How much does the Link-Belt 3400 weigh?

The Link-Belt 3400 weighs 24.12 tons.

What are the transport dimensions of the Link-Belt 3400 crawler excavator?

The Link-Belt 3400 has a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt 3400?

The Link-Belt 3400 has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 3400 crawler excavator?

The Link-Belt 3400 crawler excavator has a dredging depth of 7.4 meters, a maximum horizontal reach of 10.83 meters, and is equipped with a monobloc boom.

What power ratings are available for the Link-Belt 3400?

There are no power rating specifications available for the Link-Belt 3400 in the provided data.

What are the specifications of the primary work tool bucket on the Link-Belt 3400?

The primary work tool bucket of the Link-Belt 3400 has a maximum capacity of 1 cubic meter and a width of 1.219 meters.

How much is a Link-Belt 3400 Crawler excavator (1994u20131999) worth?

The residual value of the Link-Belt 3400 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
