225 Spin Ace Link-Belt excavator specs & Dimensions (2005 - 2023)

Link-Belt 225 Spin Ace is a crawler excavator manufactured since 2005, with a weight of 23 tons. It features a track width of 800 …

Link-Belt 225 Spin Ace is a crawler excavator manufactured since 2005, with a weight of 23 tons. It features a track width of 800 mm, a transport length of 8 meters, a transport width of 3 meters, and a transport height of 3 meters. The machine has a tear-out force of 130 kN and a bucket width of 1.676 meters. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

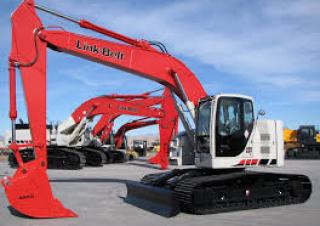

Crawler Excavators Link-Belt 225 Spin Ace

Technical specs - 225 Spin Ace Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Transport length
8 m
Transport width
3 m
Transport height
3 m
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
9.91 m
Dredging depth
6.7 m
Tear-out force
130 kN
Bucket width
1.676 m
Engine manuf.
Isuzu
Engine type
BB-6BG1T
Engine power
103 kW
Displacement
6.494 l
Revolutions at max torque
1600 rpm
Max. torque
527 Nm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm
Emission level
Tier 2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 225 Spin Ace FAQ

When was the Link-Belt 225 Spin Ace manufactured?

The Link-Belt 225 Spin Ace was manufactured from 2005 to 2023.

How much does the Link-Belt 225 Spin Ace weigh?

The Link-Belt 225 Spin Ace weighs 23 tons.

What are the transport dimensions of the Link-Belt 225 Spin Ace?

The Link-Belt 225 Spin Ace has a transport length of 8 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt 225 Spin Ace?

The Link-Belt 225 Spin Ace has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 225 Spin Ace?

The Link-Belt 225 Spin Ace has a dredging depth of 6.7 meters, a maximum horizontal reach of 9.91 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Link-Belt 225 Spin Ace, given that no power rating is provided?

The Link-Belt 225 Spin Ace has a tear-out force of 130 kN. No power rating data is provided in the source.

What is the bucket width of the Link-Belt 225 Spin Ace excavator?

The bucket width of the Link-Belt 225 Spin Ace excavator is 1.676 meters.

How much is a Link-Belt 225 Spin Ace Crawler excavator (2005u20132023) worth?

The residual value of the Link-Belt 225 Spin Ace depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
