R 924 Litronic Liebherr excavator specs & Dimensions (2019 - 2026)

Liebherr R 924 Litronic is a crawler excavator manufactured since 2019, with a weight of 24.9 tons. It features a track width of 5…

Liebherr R 924 Litronic is a crawler excavator manufactured since 2019, with a weight of 24.9 tons. It features a track width of 500 mm, a transport length of 9.9 meters, a transport width of 2.5 meters, and a transport height of 3.06 meters. The machine has a tear-out force of 106 kN, a dredging depth of 7.17 meters, and a maximum horizontal reach of 10.87 meters. The bucket capacity is 1.65 cubic meters. Special equipment includes air conditioning and an overload alert system.

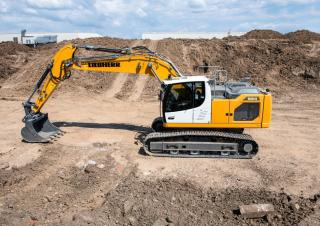

Crawler Excavators Liebherr R 924 Litronic
Crawler Excavators Liebherr R 924 Litronic
Crawler Excavators Liebherr R 924 Litronic
Crawler Excavators Liebherr R 924 Litronic

Visit Liebherr live at

Technical specs - R 924 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.9 t
Transport length
9.9 m
Transport width
2.5 m
Transport height
3.06 m
Bucket capacity
1.65 m³
Undercarriage
LC/NLC/SL
Track width
500 mm
Boom
VA
Max. Reach horizontal
10.87 m
Dredging depth
7.17 m
Tear-out force
106 kN
Model series
R
Engine manuf.
Liebherr
Engine type
D924 A7-05
Engine power
129 kW
Displacement
4.5 l
Revolutions at max torque
1900 rpm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 924 Litronic FAQ

When was the Liebherr R 924 Litronic manufactured?

The Liebherr R 924 Litronic was first produced in 2019.

How much does the Liebherr R 924 Litronic weigh?

The Liebherr R 924 Litronic weighs 24.9 tons.

What are the transport dimensions of the Liebherr R 924 Litronic?

The Liebherr R 924 Litronic has a transport length of 9.9 meters, a transport width of 2.5 meters, and a transport height of 3.06 meters.

What are the undercarriage specifications of the Liebherr R 924 Litronic?

The Liebherr R 924 Litronic has an undercarriage described as Long, Small, Standard with a track width of 500 mm.

What are the excavation performance specifications of the Liebherr R 924 Litronic?

The Liebherr R 924 Litronic has a dredging depth of 7.17 meters, a maximum horizontal reach of 10.87 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr R 924 Litronic?

The Liebherr R 924 Litronic has a tear-out force of 106 kN.

What is the bucket capacity of the Liebherr R 924 Litronic excavator?

The bucket capacity of the Liebherr R 924 Litronic excavator is 1.65 cubic meters.

How much is a Liebherr R 924 Litronic Crawler excavator (2019u20132025) worth?

The residual value of the Liebherr R 924 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
