R954 Liebherr excavator specs & Dimensions (1993 - 1994)

Liebherr R954 is a crawler excavator manufactured from 1993 to 1994. It has a weight of 48.4 tons and a track width of 750 mm. The…

Liebherr R954 is a crawler excavator manufactured from 1993 to 1994. It has a weight of 48.4 tons and a track width of 750 mm. The transport dimensions are 10.45 meters in length, 3.46 meters in width, and 3.65 meters in height. The dredging depth is 8.3 meters, with a maximum horizontal reach of 12 meters. The bucket width is 2.15 meters, and the bucket capacity is 3.8 cubic meters.

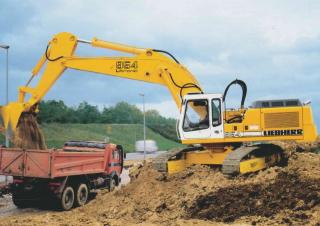

Crawler Excavators Liebherr R954

Visit Liebherr live at

Technical specs - R954 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
48.4 t
Transport length
10.45 m
Transport width
3.46 m
Transport height
3.65 m
Bucket capacity
3.8 m³
Track width
750 mm
Max. Reach horizontal
12 m
Dredging depth
8.3 m
Bucket width
2.15 m
Engine manuf.
Liebherr
Engine type
D 926TI
Engine power
210 kW
Displacement
10 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
122x142 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R954 FAQ

When was the Liebherr R954 manufactured?

The Liebherr R954 was manufactured from 1993 to 1994.

How much does the Liebherr R954 weigh?

The Liebherr R954 weighs 48.4 tons.

What are the transport dimensions of the Liebherr R954 crawler excavator?

The Liebherr R954 crawler excavator has a transport length of 10.45 meters, a transport width of 3.46 meters, and a transport height of 3.65 meters.

What is the track width of the Liebherr R954's undercarriage?

The Liebherr R954 has a track width of 750 mm.

What are the excavation performance specifications of the Liebherr R954?

The Liebherr R954 has a dredging depth of 8.3 meters and a maximum horizontal reach of 12 meters.

What are the specifications of the primary work tool bucket on the Liebherr R954?

The primary work tool bucket of the Liebherr R954 has a capacity of 3.8 cubic meters and a width of 2.15 meters.

How much is a Liebherr R954 Crawler excavator (1993u20131994) worth?

The residual value of the Liebherr R954 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
