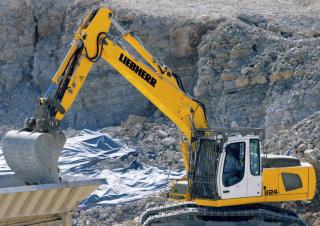

R 924 Compact Liebherr excavator specs & Dimensions (2008 - 2013)

Model rating
7,00 / 10

Liebherr R 924 Compact is a crawler excavator manufactured from 2008 to 2013. It has a weight of 25.4 tons, a track width of 600 m…

Liebherr R 924 Compact is a crawler excavator manufactured from 2008 to 2013. It has a weight of 25.4 tons, a track width of 600 mm, a transport length of 8.9 meters, a transport width of 3.16 meters, and a transport height of 3.15 meters. The machine features a tear-out force of 103 kN and is equipped with air conditioning.

Crawler Excavators Liebherr R 924 Compact
Crawler Excavators Liebherr R 924 Compact
Crawler Excavators Liebherr R 924 Compact
Crawler Excavators Liebherr R 924 Compact

Visit Liebherr live at

Technical specs - R 924 Compact Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.4 t
Transport length
8.9 m
Transport width
3.16 m
Transport height
3.15 m
Bucket capacity
0.8 m³
Undercarriage
HD/SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.8 m
Tear-out force
103 kN
Model series
R
Engine manuf.
Liebherr
Engine type
D934 S
Engine power
120 kW
Displacement
6.36 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 924 Compact FAQ

When was the Liebherr R 924 Compact manufactured?

The Liebherr R 924 Compact was manufactured from 2008 to 2013.

How much does the Liebherr R 924 Compact weigh?

The Liebherr R 924 Compact weighs 25.4 tons.

What are the transport dimensions of the Liebherr R 924 Compact crawler excavator?

The Liebherr R 924 Compact has a transport length of 8.9 meters, a transport width of 3.16 meters, and a transport height of 3.15 meters.

What are the undercarriage specifications of the Liebherr R 924 Compact?

The Liebherr R 924 Compact has a heavy duty, standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 924 Compact?

The Liebherr R 924 Compact has a dredging depth of 6.8 meters, a maximum horizontal reach of 9.7 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 924 Compact, given that no power rating data is available?

The Liebherr R 924 Compact does not have power rating data available, but it has a tear-out force of 103 kN.

What is the bucket capacity of the Liebherr R 924 Compact excavator?

The Liebherr R 924 Compact excavator has a bucket capacity of 0.8 cubic meters.

How much is a Liebherr R 924 Compact Crawler excavator (2008u20132013) worth?

The residual value of the Liebherr R 924 Compact depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
