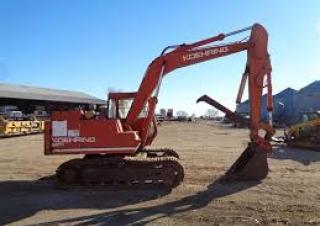

6611 Koehring excavator specs & Dimensions (1984 - 1987)

Koehring 6611 is a Crawler Excavator manufactured from 1984 to 1987. It has a weight of 11.091 tons and a track width of 700 mm. T…

Koehring 6611 is a Crawler Excavator manufactured from 1984 to 1987. It has a weight of 11.091 tons and a track width of 700 mm. The transport dimensions are 7 meters in length, 2 meters in width, and 2 meters in height. The dredging depth is 5 meters, and the maximum horizontal reach is 8.015 meters. The bucket width is 1 meter, and it is equipped with a diesel particulate filter.

Crawler Excavators Koehring 6611

Technical specs - 6611 Koehring

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.091 t
Transport length
7.15 m
Transport width
2.47 m
Transport height
2.59 m
Bucket capacity min.
0.17 m³
Bucket capacity max.
0.5 m³
Undercarriage
SL
Track width
700 mm
Boom
MB
Max. Reach horizontal
8.015 m
Dredging depth
5.42 m
Bucket width
1.6 m
Engine manuf.
Isuzu
Engine type
4BB1
Engine power
55.2 kW
Displacement
5.393 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket capacity, tear-out force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Koehring 6611 FAQ

When was the Koehring 6611 manufactured?

The Koehring 6611 was manufactured from 1984 to 1987.

How much does the Koehring 6611 crawler excavator weigh?

The Koehring 6611 crawler excavator weighs 11.09 tons.

What are the transport dimensions of the Koehring 6611 crawler excavator?

The Koehring 6611 has a transport length of 7.15 meters, a transport width of 2.47 meters, and a transport height of 2.59 meters.

What are the undercarriage specifications of the Koehring 6611 crawler excavator?

The Koehring 6611 crawler excavator has a standard undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Koehring 6611 crawler excavator?

The Koehring 6611 crawler excavator has a dredging depth of 5.42 meters, a maximum horizontal reach of 8.015 meters, and is equipped with a monobloc boom.

What is the bucket width of the Koehring 6611 crawler excavator?

The bucket width of the Koehring 6611 crawler excavator is 1.6 meters.

How much is a Koehring 6611 Crawler excavator (1984u20131987) worth?

The residual value of the Koehring 6611 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
