HD512E Special Kato excavator specs & Dimensions (2001 - 2004)

Kato HD512E Special is a crawler excavator manufactured from 2001 to 2004. It has a weight of 11 tons and a track width of 500 mm.…

Kato HD512E Special is a crawler excavator manufactured from 2001 to 2004. It has a weight of 11 tons and a track width of 500 mm. The transport dimensions are 7 meters in length, 2 meters in width, and 2 meters in height. The excavator features a tear-out force of 98 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 8 meters. The bucket width is 1 meter.

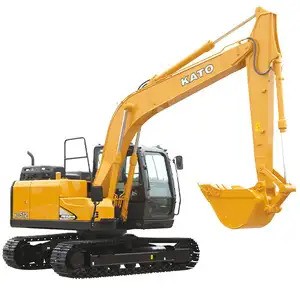

Crawler Excavators Kato HD512E Special

Technical specs - HD512E Special Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.9 t
Transport length
7.62 m
Transport width
2.49 m
Transport height
2.71 m
Bucket capacity min.
0.25 m³
Bucket capacity max.
0.6 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.76 m
Dredging depth
6.13 m
Tear-out force
98.1 kN
Bucket width
1.09 m
Engine manuf.
Mitsubishi
Engine type
4D34-TLE2A
Engine power
66 kW
Displacement
3.91 l
Revolutions at max torque
1400 rpm
Max. torque
353 Nm
No. of cylinders
4
Cylinder bore x stroke
104 x 115 mm

More technical details, like: bucket capacity, undercarriage, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD512E Special FAQ

When was the Kato HD512E Special manufactured?

The Kato HD512E Special was manufactured from 2001 to 2004.

How much does the Kato HD512E Special weigh?

The Kato HD512E Special weighs 11.9 tons.

What are the transport dimensions of the Kato HD512E Special crawler excavator?

The Kato HD512E Special has a transport length of 7.62 meters, a transport width of 2.49 meters, and a transport height of 2.71 meters.

What is the track width of the Kato HD512E Special's undercarriage?

The Kato HD512E Special has a track width of 500 mm.

What are the excavation performance specifications of the Kato HD512E Special?

The Kato HD512E Special has a dredging depth of 6.13 meters, a maximum horizontal reach of 8.76 meters, and features a monobloc boom.

What power ratings are available for the Kato HD512E Special?

There are no power ratings available for the Kato HD512E Special in the provided data.

What is the bucket width of the Kato HD512E Special excavator?

The bucket width of the Kato HD512E Special excavator is 1.09 meters.

How much is a Kato HD512E Special Crawler excavator (2001u20132004) worth?

The residual value of the Kato HD512E Special depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
