75G John Deere Construction excavator specs & Dimensions (2017 - 2026)

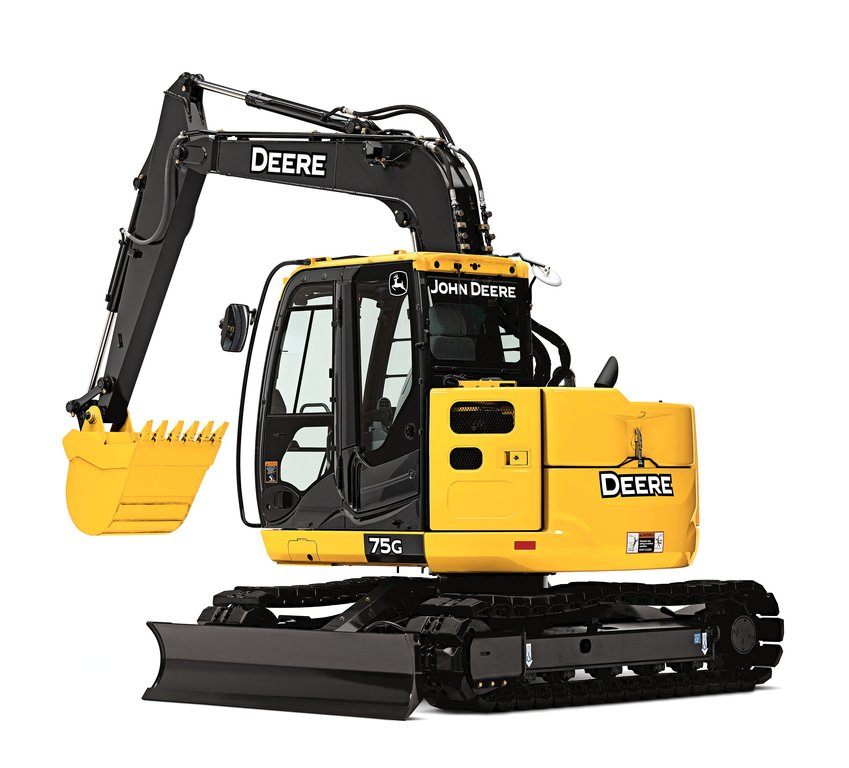

John Deere Construction 75G is a crawler excavator manufactured since 2017. It has a weight of 8.14 tons and a track width of 450 …

John Deere Construction 75G is a crawler excavator manufactured since 2017. It has a weight of 8.14 tons and a track width of 450 mm. The transport dimensions are 6.37 meters in length, 2.32 meters in width, and 2.69 meters in height. The machine features a tear-out force of 46.6 kN, a dredging depth of 4.61 meters, and a maximum horizontal reach of 6.76 meters. It is equipped with air conditioning.

Crawler Excavators John Deere Construction 75G
Crawler Excavators John Deere Construction 75G
Crawler Excavators John Deere Construction 75G
Crawler Excavators John Deere Construction 75G

Technical specs - 75G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.14 t
Transport length
6.37 m
Transport width
2.32 m
Transport height
2.69 m
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.76 m
Dredging depth
4.61 m
Tear-out force
46.6 kN
Model series
G
Engine manuf.
Yanmar
Engine type
4TNV98C
Engine power
42.4 kW
Displacement
3.3 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
Tier 4f/EU IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 75G FAQ

When was the John Deere Construction 75G manufactured?

The John Deere Construction 75G was first produced in 2017.

How much does the John Deere Construction 75G weigh?

The John Deere Construction 75G weighs 8.14 tons.

What are the transport dimensions of the John Deere Construction 75G crawler excavator?

The John Deere Construction 75G has a transport length of 6.37 meters, a transport width of 2.32 meters, and a transport height of 2.69 meters.

What are the undercarriage specifications of the John Deere Construction 75G?

The John Deere Construction 75G has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the John Deere Construction 75G crawler excavator?

The John Deere Construction 75G crawler excavator has a dredging depth of 4.61 meters, a maximum horizontal reach of 6.76 meters, and features a monobloc boom.

What is the tear-out force of the John Deere Construction 75G?

The John Deere Construction 75G has a tear-out force of 46.6 kN.

How much is a John Deere Construction 75G Crawler excavator (2017u20132025) worth?

The residual value of the John Deere Construction 75G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
