690E John Deere Construction excavator specs & Dimensions (1974 - 2021)

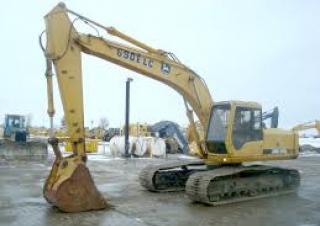

John Deere Construction 690E is a Crawler Excavator manufactured from 1974 to 2021. It has a weight of 20.3 tons, a track width of…

John Deere Construction 690E is a Crawler Excavator manufactured from 1974 to 2021. It has a weight of 20.3 tons, a track width of 600 mm, a transport length of 11.85 meters, a transport width of 3.13 meters, and a transport height of 3.3 meters. The machine features a tear-out force of 57.8 kN, a dredging depth of 11.38 meters, and a maximum horizontal reach of 15.25 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 690E

Technical specs - 690E John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.3 t
Transport length
11.85 m
Transport width
3.13 m
Transport height
3.3 m
Track width
600 mm
Max. Reach horizontal
15.25 m
Dredging depth
11.38 m
Tear-out force
57.8 kN
Model series
E
Engine manuf.
John Deere
Engine type
6068T
Engine power
97 kW
Displacement
6.78 l
Max. torque
575 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

John Deere Construction 690E FAQ

When was the John Deere Construction 690E manufactured?

The John Deere Construction 690E was manufactured from 1974 to 2021.

How much does the John Deere Construction 690E weigh?

The John Deere Construction 690E weighs 20.3 tons.

What are the transport dimensions of the John Deere Construction 690E crawler excavator?

The John Deere Construction 690E has a transport length of 11.85 meters, a width of 3.13 meters, and a height of 3.3 meters.

What is the track width of the John Deere Construction 690E crawler excavator?

The John Deere Construction 690E crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the John Deere Construction 690E?

The John Deere Construction 690E has a dredging depth of 11.38 meters and a maximum horizontal reach of 15.25 meters.

What are the power ratings of the John Deere Construction 690E?

The source data does not provide any power ratings for the John Deere Construction 690E.

How much is a John Deere Construction 690E Crawler excavator (1974u20132021) worth?

The residual value of the John Deere Construction 690E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
