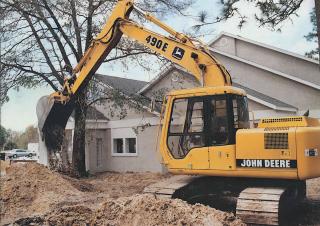

490E John Deere Construction excavator specs & Dimensions (1995 - 2021)

John Deere Construction 490E is a crawler excavator manufactured from 1995 to 2021. It has a weight of 12.1 tons and a track width…

John Deere Construction 490E is a crawler excavator manufactured from 1995 to 2021. It has a weight of 12.1 tons and a track width of 600 mm. The transport dimensions are 8.27 meters in length, 2.59 meters in width, and 2.69 meters in height. The machine features a tear-out force of 87 kN, a dredging depth of 5.57 meters, and a maximum horizontal reach of 8.14 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 490E

Technical specs - 490E John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.1 t
Transport length
8.27 m
Transport width
2.59 m
Transport height
2.69 m
Track width
600 mm
Max. Reach horizontal
8.14 m
Dredging depth
5.57 m
Tear-out force
87 kN
Model series
E
Engine manuf.
John Deere
Engine type
4045T
Engine power
63 kW
Displacement
4.5 l
Max. torque
342 Nm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 490E FAQ

When was the John Deere Construction 490E manufactured?

The John Deere Construction 490E was manufactured from 1995 to 2021.

How much does the John Deere Construction 490E weigh?

The John Deere Construction 490E weighs 12.1 tons.

What are the transport dimensions of the John Deere Construction 490E?

The John Deere Construction 490E has a transport length of 8.27 meters, a transport width of 2.59 meters, and a transport height of 2.69 meters.

What is the track width of the John Deere Construction 490E's undercarriage?

The John Deere Construction 490E has a track width of 600 mm.

What are the excavation specifications of the John Deere Construction 490E?

The John Deere Construction 490E has a dredging depth of 5.57 meters and a maximum horizontal reach of 8.14 meters.

What is the tear-out force of the John Deere Construction 490E?

The John Deere Construction 490E has a tear-out force of 87 kN.

How much is a John Deere Construction 490E Crawler excavator (1995u20132021) worth?

The residual value of the John Deere Construction 490E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
