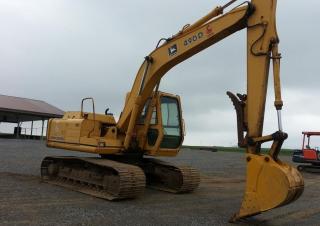

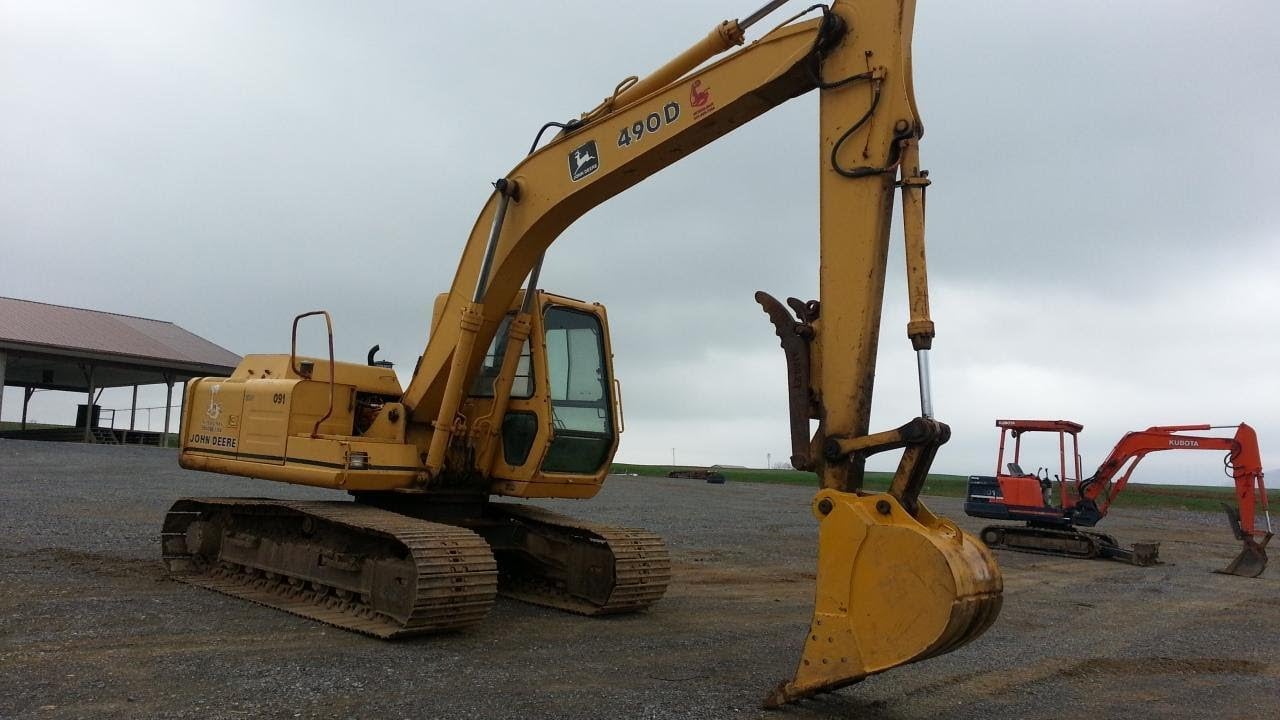

490D John Deere Construction excavator specs & Dimensions (2009 - 2021)

John Deere Construction 490D is a crawler excavator manufactured from 2009 to 2021. It has a weight of 12 tons and a track width o…

John Deere Construction 490D is a crawler excavator manufactured from 2009 to 2021. It has a weight of 12 tons and a track width of 700 mm. The transport dimensions are 7.68 meters in length, 2.68 meters in width, and 2.2 meters in height. The machine features a tear-out force of 53 kN, a dredging depth of 5.52 meters, and a maximum horizontal reach of 8.11 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 490D

Technical specs - 490D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12 t
Transport length
7.68 m
Transport width
2.68 m
Transport height
2.2 m
Track width
700 mm
Max. Reach horizontal
8.11 m
Dredging depth
5.52 m
Tear-out force
53 kN
Model series
D
Engine manuf.
John Deere
Engine type
4-276D
Engine power
56 kW
Displacement
4.52 l
Max. torque
291 Nm
No. of cylinders
4
Cylinder bore x stroke
106.5 x 127 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

John Deere Construction 490D FAQ

When was the John Deere Construction 490D manufactured?

The John Deere Construction 490D was manufactured from 2009 to 2021.

How much does the John Deere Construction 490D weigh?

The John Deere Construction 490D weighs 12 tons.

What are the transport dimensions of the John Deere Construction 490D?

The John Deere Construction 490D has a transport length of 7.68 meters, a transport width of 2.68 meters, and a transport height of 2.2 meters.

What is the track width of the John Deere Construction 490D crawler excavator?

The John Deere Construction 490D crawler excavator has a track width of 700 mm.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 490D?

The John Deere Construction 490D has a dredging depth of 5.52 meters and a maximum horizontal reach of 8.11 meters.

What is the tear-out force of the John Deere Construction 490D?

The John Deere Construction 490D has a tear-out force of 53 kN.

How much is a John Deere Construction 490D Crawler excavator (2009u20132021) worth?

The residual value of the John Deere Construction 490D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
