245G LC John Deere Construction excavator specs & Dimensions (2017 - 2026)

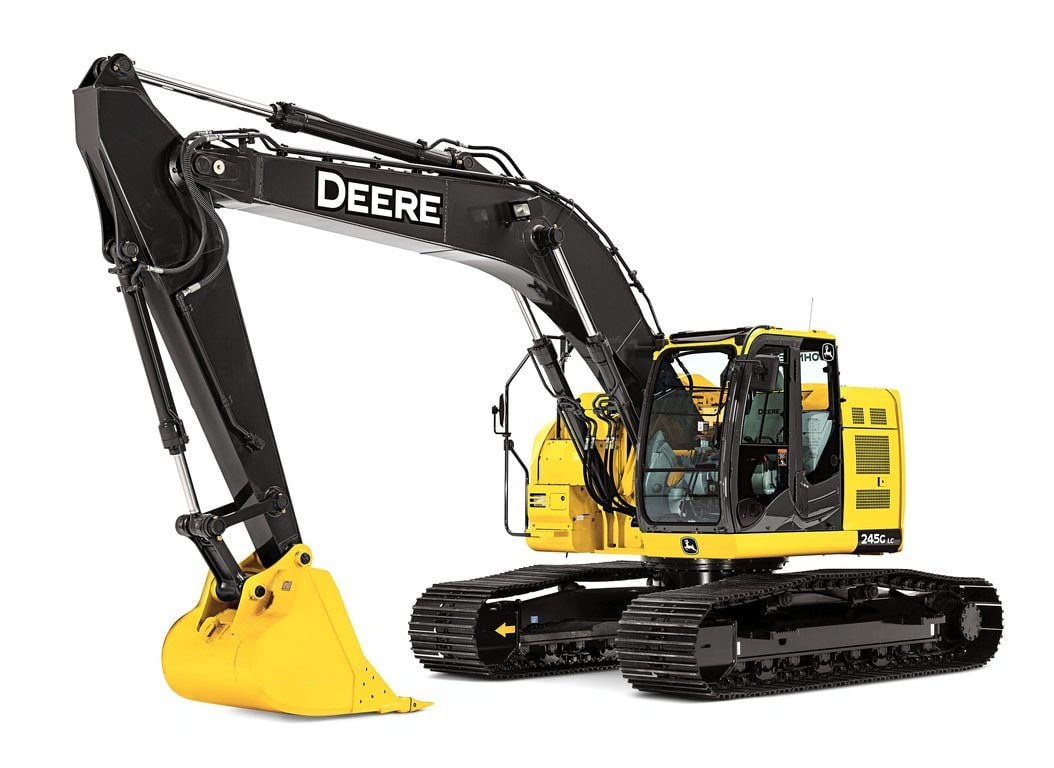

John Deere Construction 245G LC is a crawler excavator manufactured since 2017. It has a weight of 25.5 tons and a track width of …

John Deere Construction 245G LC is a crawler excavator manufactured since 2017. It has a weight of 25.5 tons and a track width of 800 mm. The transport dimensions are 9.11 meters in length, 3.19 meters in width, and 3.03 meters in height. The machine features a tear-out force of 158 kN, a dredging depth of 6.62 meters, and a maximum horizontal reach of 9.9 meters. It is equipped with air conditioning.

Crawler Excavators John Deere Construction 245G LC

Technical specs - 245G LC John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.5 t
Transport length
9.11 m
Transport width
3.19 m
Transport height
3.03 m
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
9.9 m
Dredging depth
6.62 m
Tear-out force
158 kN
Model series
G
Engine manuf.
Isuzu
Engine type
4HK1
Engine power
119 kW
Displacement
5.2 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
Tier 4f/EU IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 245G LC FAQ

When was the John Deere Construction 245G LC manufactured?

The John Deere Construction 245G LC was first produced in 2017.

How much does the John Deere Construction 245G LC weigh?

The John Deere Construction 245G LC weighs 25.5 tons.

What are the transport dimensions of the John Deere Construction 245G LC?

The John Deere Construction 245G LC has a transport length of 9.11 meters, a transport width of 3.19 meters, and a transport height of 3.03 meters.

What are the undercarriage specifications of the John Deere Construction 245G LC?

The John Deere Construction 245G LC has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the John Deere Construction 245G LC?

The John Deere Construction 245G LC has a dredging depth of 6.62 meters, a maximum horizontal reach of 9.9 meters, and is equipped with a monobloc boom.

What are the power ratings of the John Deere Construction 245G LC?

The source data does not provide power ratings for the John Deere Construction 245G LC.

How much is a John Deere Construction 245G LC Crawler excavator (2017u20132025) worth?

The residual value of the John Deere Construction 245G LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
