200D John Deere Construction excavator specs & Dimensions (2007 - 2021)

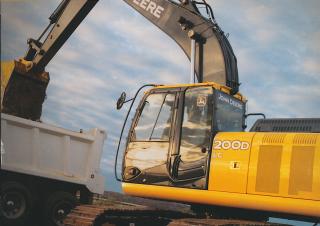

John Deere Construction 200D is a Crawler Excavator manufactured from 2007 to 2021, with a weight of 23.4 t. It features a track w…

John Deere Construction 200D is a Crawler Excavator manufactured from 2007 to 2021, with a weight of 23.4 t. It features a track width of 700 mm, a transport length of 12.08 m, a transport width of 2.71 m, and a transport height of 2.9 m. The dredging depth is 11.9 m, and the maximum horizontal reach is 15.2 m. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 200D

Technical specs - 200D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.4 t
Transport length
12.08 m
Transport width
2.71 m
Transport height
2.9 m
Track width
700 mm
Max. Reach horizontal
15.2 m
Dredging depth
11.9 m
Model series
D
Engine manuf.
John Deere
Engine type
6068H
Engine power
119 kW
Displacement
6.8 l
Max. torque
780 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 200D FAQ

When was the John Deere Construction 200D manufactured?

The John Deere Construction 200D was manufactured from 2007 to 2021.

How much does the John Deere Construction 200D weigh?

The John Deere Construction 200D weighs 23.4 tons.

What are the transport dimensions of the John Deere Construction 200D?

The John Deere Construction 200D has a transport length of 12.08 meters, a transport width of 2.71 meters, and a transport height of 2.9 meters.

What is the track width of the John Deere Construction 200D crawler excavator?

The John Deere Construction 200D crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the John Deere Construction 200D?

The John Deere Construction 200D has a dredging depth of 11.9 meters and a maximum horizontal reach of 15.2 meters.
