135G John Deere Construction excavator specs & Dimensions (2017 - 2026)

John Deere Construction 135G is a crawler excavator manufactured since 2017. It has a weight of 13.9 tons and a track width of 500…

John Deere Construction 135G is a crawler excavator manufactured since 2017. It has a weight of 13.9 tons and a track width of 500 mm. The transport dimensions are 7.37 meters in length, 2.49 meters in width, and 2.87 meters in height. The machine features a tear-out force of 104 kN, a dredging depth of 5.49 meters, and a maximum horizontal reach of 8.24 meters. It is equipped with air conditioning.

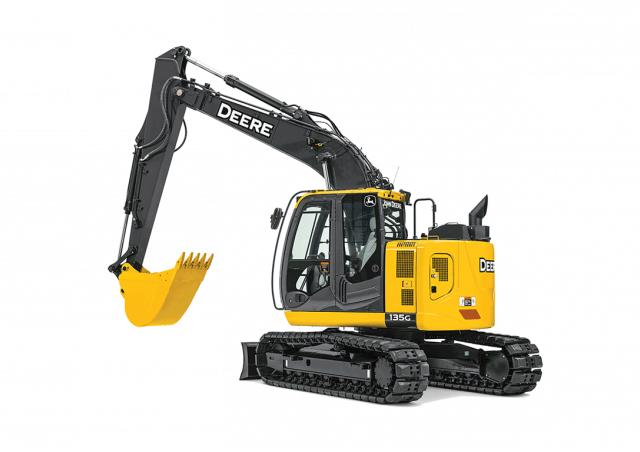

Crawler Excavators John Deere Construction 135G

Technical specs - 135G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.9 t
Transport length
7.37 m
Transport width
2.49 m
Transport height
2.87 m
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.24 m
Dredging depth
5.49 m
Tear-out force
104 kN
Model series
G
Engine manuf.
Isuzu
Engine type
4JJ1
Engine power
75 kW
Displacement
3 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
Tier 4f/EU IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 135G FAQ

When was the John Deere Construction 135G manufactured?

The John Deere Construction 135G was first produced in 2017.

How much does the John Deere Construction 135G weigh?

The John Deere Construction 135G weighs 13.9 tons.

What are the transport dimensions of the John Deere Construction 135G crawler excavator?

The John Deere Construction 135G has a transport length of 7.37 meters, a transport width of 2.49 meters, and a transport height of 2.87 meters.

What are the undercarriage specifications of the John Deere Construction 135G?

The John Deere Construction 135G has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the John Deere Construction 135G?

The John Deere Construction 135G has a dredging depth of 5.49 meters, a maximum horizontal reach of 8.24 meters, and features a monobloc boom.

What is the tear-out force of the John Deere Construction 135G?

The John Deere Construction 135G has a tear-out force of 104 kN.
