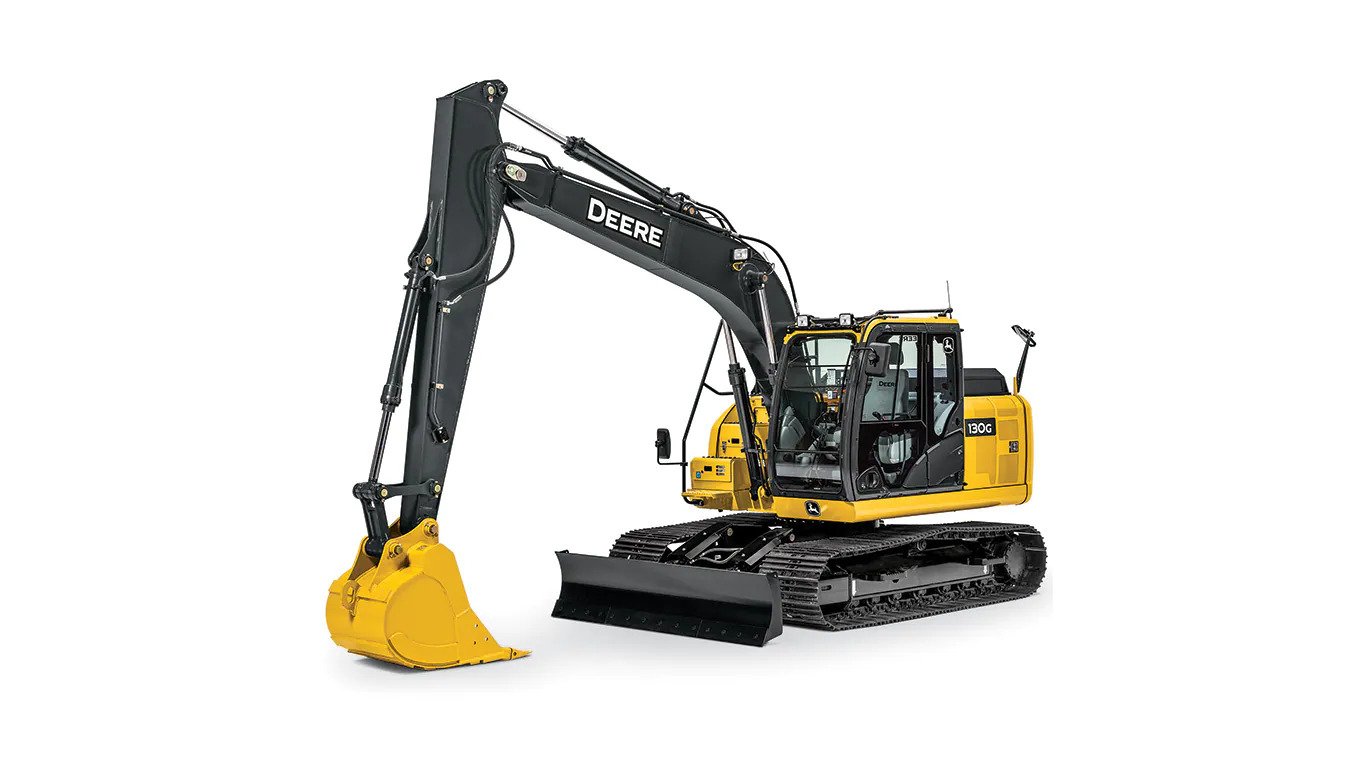

130G LC John Deere Construction excavator specs & Dimensions (2022 - 2026)

John Deere Construction 130G LC is a Crawler Excavator manufactured since 2022. It has a weight of 13.822 tons and a track width o…

John Deere Construction 130G LC is a Crawler Excavator manufactured since 2022. It has a weight of 13.822 tons and a track width of 700 mm. The transport dimensions are 7.71 meters in length, 2.59 meters in width, and 3.12 meters in height. The machine features a tear-out force of 96 kN, a dredging depth of 6.06 meters, and a maximum horizontal reach of 8.79 meters. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

Crawler Excavators John Deere Construction 130G LC

Technical specs - 130G LC John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.822 t
Transport length
7.71 m
Transport width
2.59 m
Transport height
3.12 m
Track width
700 mm
Max. Reach horizontal
8.79 m
Dredging depth
6.06 m
Tear-out force
96 kN
Model series
G
Engine manuf.
John Deere
Engine type
4045H
Engine power
69 kW
Displacement
4.5 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
Tier 3/Stage IIIA

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 130G LC FAQ

When was the John Deere Construction 130G LC manufactured?

The John Deere Construction 130G LC was first produced in 2022.

How much does the John Deere Construction 130G LC weigh?

The John Deere Construction 130G LC weighs 13.82 tons.

What are the transport dimensions of the John Deere Construction 130G LC?

The transport dimensions of the John Deere Construction 130G LC are 7.71 meters in length, 2.59 meters in width, and 3.12 meters in height.

What is the track width of the John Deere Construction 130G LC crawler excavator?

The John Deere Construction 130G LC crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the John Deere Construction 130G LC?

The John Deere Construction 130G LC has a dredging depth of 6.06 meters and a maximum horizontal reach of 8.79 meters.

What is the tear-out force of the John Deere Construction 130G LC?

The John Deere Construction 130G LC has a tear-out force of 96 kN.

How much is a John Deere Construction 130G LC Crawler excavator (2022u20132025) worth?

The residual value of the John Deere Construction 130G LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
