R220LS SMART PLUS Hyundai excavator specs & Dimensions (2023 - 2026)

Weight: 22.2t – Transport length: 9.57m – Transport width: 2.99m – Transport height: 3.11m – Bucket capacity: 1.05m³ – Bucket capa…

Weight: 22.2t – Transport length: 9.57m – Transport width: 2.99m – Transport height: 3.11m – Bucket capacity: 1.05m³ – Bucket capacity min.: 0.95m³

Check out detailed specifications, information and technical data for Hyundai R220LS SMART PLUS excavator manufactured between 2023 - 2026. Get more in-depth insight with Hyundai R220LS SMART PLUS digger specifications. See information, like: Weight: 22.2t – Transport length: 9.57m – Transport width: 2.99m – Transport height: 3.11m – Bucket capacity: 1.05m³ – Bucket capacity min.: 0.95m³ and more.

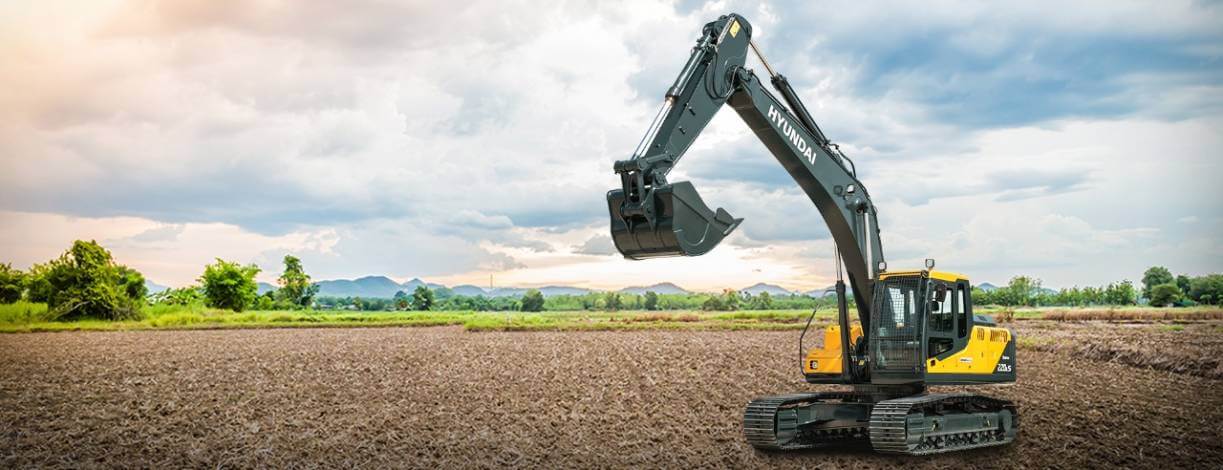

Crawler Excavators Hyundai R220LS SMART PLUS

Visit Hyundai live at

Technical specs - R220LS SMART PLUS Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.2 t
Transport length
9.57 m
Transport width
2.99 m
Transport height
3.11 m
Bucket capacity
1.05 m³
Bucket capacity min.
0.95 m³
Bucket capacity max.
1.7 m³
Track width
600 mm
Max. Reach horizontal
9.5 m
Dredging depth
6.22 m
Tear-out force
152 kN
Engine manuf.
Cummins
Engine type
6BTAA5.9C
Engine power
110 kW
Displacement
5.88 l
Revolutions at max torque
2000 rpm
Max. torque
462 Nm
No. of cylinders
6

More technical details, like: undercarriage, boom, bucket width, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R220LS SMART PLUS FAQ

When was the Hyundai R220LS SMART PLUS manufactured?

The Hyundai R220LS SMART PLUS was first produced in 2023.

How much does the Hyundai R220LS SMART PLUS weigh?

The Hyundai R220LS SMART PLUS weighs 22.2 tons.

What are the transport dimensions of the Hyundai R220LS SMART PLUS crawler excavator?

The Hyundai R220LS SMART PLUS has a transport length of 9.57 meters, a transport width of 2.99 meters, and a transport height of 3.11 meters.

What is the track width of the Hyundai R220LS SMART PLUS crawler excavator?

The Hyundai R220LS SMART PLUS crawler excavator has a track width of 600 mm.

What is the excavation performance of the Hyundai R220LS SMART PLUS?

The Hyundai R220LS SMART PLUS has a dredging depth of 6.22 meters and a maximum horizontal reach of 9.5 meters.

What are the power ratings of the Hyundai R220LS SMART PLUS?

There are no power rating specifications available for the Hyundai R220LS SMART PLUS in the provided data.

What are the bucket capacity specifications of the Hyundai R220LS SMART PLUS excavator?

The Hyundai R220LS SMART PLUS excavator has a bucket capacity of 1.05 mu00b3, with a maximum capacity of 1.7 mu00b3 and a minimum capacity of 0.95 mu00b3.

How much is a Hyundai R220LS SMART PLUS Crawler excavator (2023u20132025) worth?

The residual value of the Hyundai R220LS SMART PLUS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
