R210 SMART PLUS Hyundai excavator specs & Dimensions (2023 - 2026)

Weight: 21.2t – Transport length: 9.57m – Transport width: 2.8m – Transport height: 3.11m – Bucket capacity: 0.92m³ – Bucket capac…

Weight: 21.2t – Transport length: 9.57m – Transport width: 2.8m – Transport height: 3.11m – Bucket capacity: 0.92m³ – Bucket capacity min.: 0.87m³

Check out detailed specifications, information and technical data for Hyundai R210 SMART PLUS excavator manufactured between 2023 - 2026. Get more in-depth insight with Hyundai R210 SMART PLUS digger specifications. See information, like: Weight: 21.2t – Transport length: 9.57m – Transport width: 2.8m – Transport height: 3.11m – Bucket capacity: 0.92m³ – Bucket capacity min.: 0.87m³ and more.

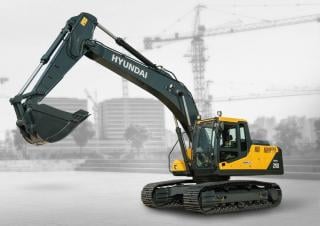

Crawler Excavators Hyundai R210 SMART PLUS

Visit Hyundai live at

Technical specs - R210 SMART PLUS Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.2 t
Transport length
9.57 m
Transport width
2.8 m
Transport height
3.11 m
Bucket capacity
0.92 m³
Bucket capacity min.
0.87 m³
Bucket capacity max.
0.92 m³
Track width
600 mm
Max. Reach horizontal
9.5 m
Dredging depth
6.22 m
Tear-out force
152 kN
Engine manuf.
Cummins
Engine type
6BT5.9C
Engine power
104.4 kW
Displacement
5.88 l
Revolutions at max torque
2000 rpm
Max. torque
417 Nm
No. of cylinders
6

More technical details, like: undercarriage, boom, bucket width, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R210 SMART PLUS FAQ

When was the Hyundai R210 SMART PLUS manufactured?

The Hyundai R210 SMART PLUS was first produced in 2023.

How much does the Hyundai R210 SMART PLUS weigh?

The Hyundai R210 SMART PLUS weighs 21.2 tons.

What are the transport dimensions of the Hyundai R210 SMART PLUS crawler excavator?

The Hyundai R210 SMART PLUS has a transport length of 9.57 meters, a transport width of 2.8 meters, and a transport height of 3.11 meters.

What is the track width of the Hyundai R210 SMART PLUS crawler excavator?

The Hyundai R210 SMART PLUS crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Hyundai R210 SMART PLUS?

The Hyundai R210 SMART PLUS has a dredging depth of 6.22 meters and a maximum horizontal reach of 9.5 meters.

What is the tear-out force of the Hyundai R210 SMART PLUS?

The Hyundai R210 SMART PLUS has a tear-out force of 152 kN.

What are the bucket capacity specifications of the Hyundai R210 SMART PLUS excavator?

The Hyundai R210 SMART PLUS excavator has a bucket capacity ranging from 0.87 to 0.92 cubic meters, with a standard bucket capacity of 0.92 cubic meters.

How much is a Hyundai R210 SMART PLUS Crawler excavator (2023u20132025) worth?

The residual value of the Hyundai R210 SMART PLUS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
